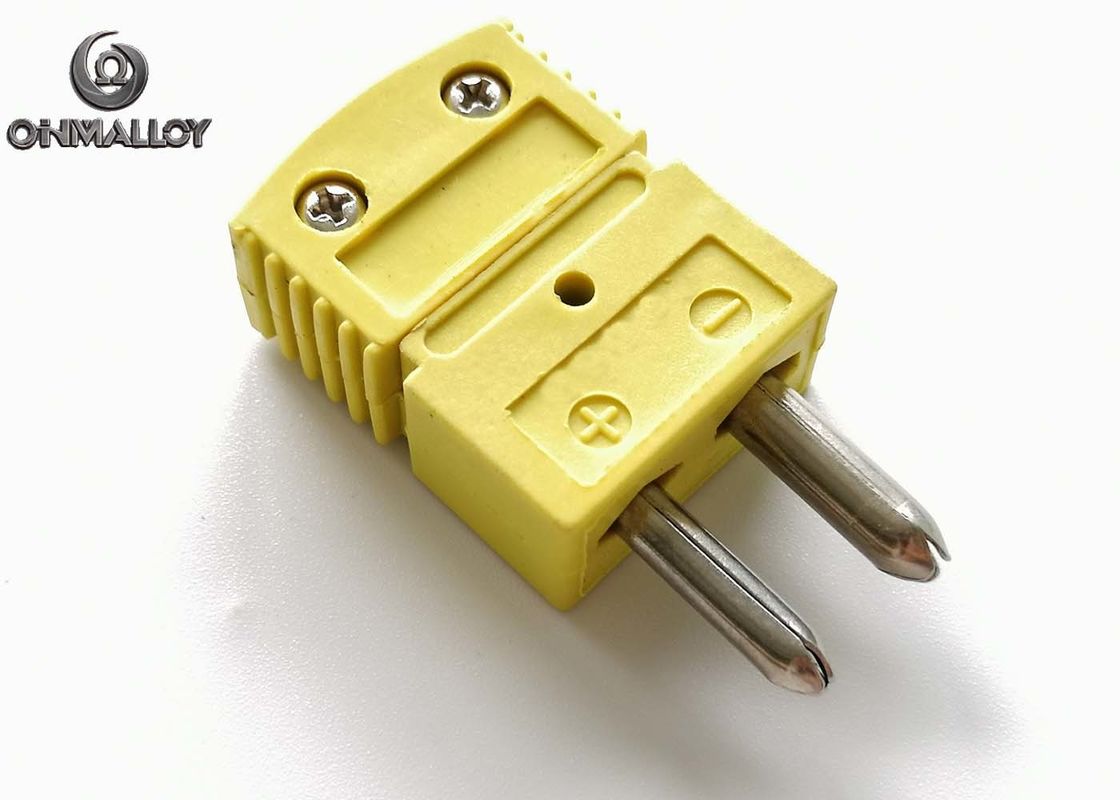

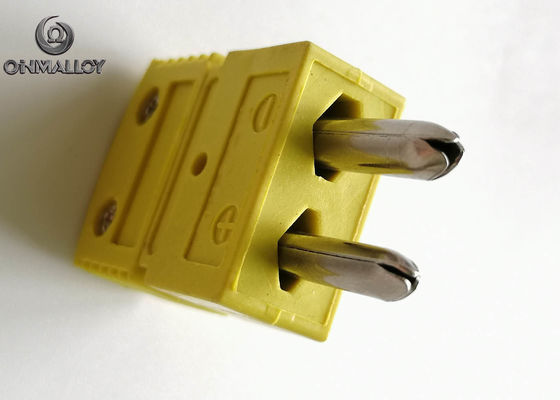

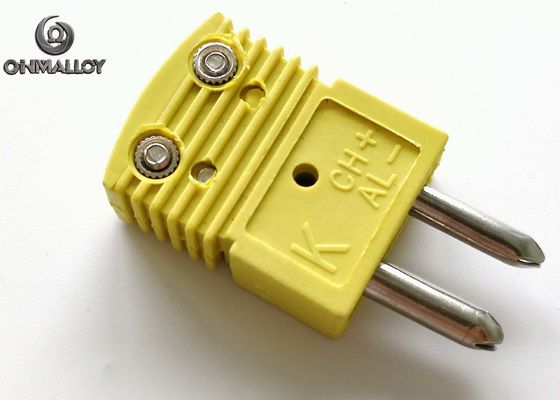

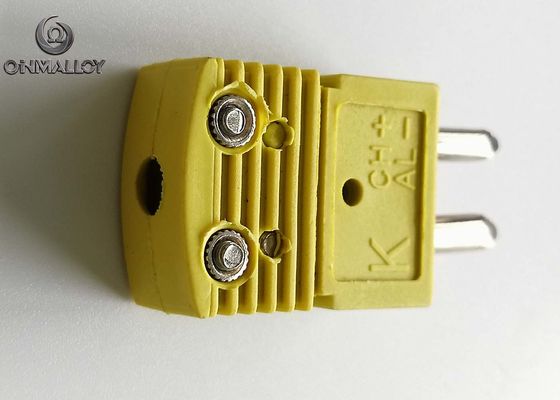

Thermocouple Type K Middle Size Connector Round Chromel Alumel Pin Thermometer Plug ANSI

Thermocouple Type K Middle Size Connector Round Chromel Alumel Pin Thermometer Plug ANSI
Thermocouple Type K Middle Size Connector Round Chromel Alumel Pin Thermometer Plug ANSI Thermocouple Type K Middle Size Connector Round Chromel Alumel Pin Thermometer Plug ANSI Thermocouple Type K Middle Size Connector Round Chromel Alumel Pin Thermometer Plug ANSI Thermocouple Type K Middle Size Connector Round Chromel Alumel Pin Thermometer Plug ANSI Thermocouple Type K Middle Size Connector Round Chromel Alumel Pin Thermometer Plug ANSI

Large Image :  Thermocouple Type K Middle Size Connector Round Chromel Alumel Pin Thermometer Plug ANSI Get Best Price

Product Details:

Place of Origin: Jiangsu
Brand Name: OHMALLOY/OEM
Certification: ISO9001
Model Number: SP-C-K-ANSI

Payment & Shipping Terms:

Minimum Order Quantity: 10 pieces
Packaging Details: paper carton
Delivery Time: 5-10 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 100000 pieces per month
Detailed Product Description
Name: Thermocouple Type K Middle Size Connector Round Chromel Alumel Pin Thermometer Plug ANSI Connector Type: Type K
Standard: ANSI Pin Style: Round Chromel Allumel Pin
Size: Middle Size(HxWxT:48.95x25.25x13.48mm ) Plug Style: Male/Female
MOQ: 50 Pieces Service: Size/Logo/Package Customized
High Light:

Chromel Alumel Pin Thermometer Plug

,

ANSI Thermometer Plug

,

Type K Thermocouple Plug

Thermocouple Type K Middle Size Connector Round Chromel Alumel Pin Thermometer Plug ANSI



Thermocouple Type K Middle Size Connector Round Chromel Alumel Pin Thermometer Plug ANSI
Connector Type   Middle Type(same as OMEGA middle type)
Connector Dimension   HxWxT:48.95mmx25.25mmx13.48mm
Pin Material   Chromel Alumel
Connector Standard   ANSI Standard
Connector Part   Male/Female Connector
Application   Connecting thermocouple probe/wire terminals to extension /compensating cables

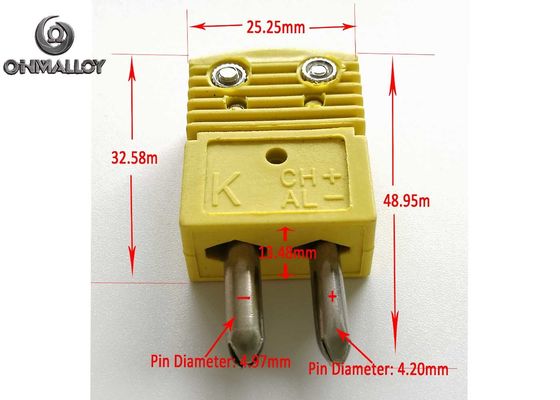

Thermocouple Type K Middle Size Connector Size Picture

Thermocouple Type K Middle Size Connector Round Chromel Alumel Pin Thermometer Plug ANSI 0Thermocouple Type K Middle Size Connector Round Chromel Alumel Pin Thermometer Plug ANSI 1Thermocouple Type K Middle Size Connector Round Chromel Alumel Pin Thermometer Plug ANSI 2

Thermocouple Type K Middle Size Connector Round Chromel Alumel Pin Thermometer Plug ANSI 3Thermocouple Type K Middle Size Connector Round Chromel Alumel Pin Thermometer Plug ANSI 4Thermocouple Type K Middle Size Connector Round Chromel Alumel Pin Thermometer Plug ANSI 5

Thermocouple Type K Middle Size Connector Round Chromel Alumel Pin Thermometer Plug ANSI 6





Thermocouple Connector Know-How





Thermocouples are available in various forms and shapes. They are made of various diameters, length, sheath material, combinations of the materials mentioned above, lead wire lengths etc.



The most commonly used shapes are beads and probes. The beads shaped thermocouples are highly inexpensive and have very fast response time. Probes are available in the market for measuring temperature in different applications like industrial, medical, scientific, food etc. The connectors used with the probes come with round pins, called standard connectors, or the flat pins, called as miniature connectors.



When selecting the thermocouple for any application, one should consider the range of the temperature to be measured, the response time required, accuracy and the surrounding environment. As per the existing conditions one can select proper materials combinations and proper shape of the thermocouple.

Thermocouple Type K Middle Size Connector Round Chromel Alumel Pin Thermometer Plug ANSI 7Thermocouple Type K Middle Size Connector Round Chromel Alumel Pin Thermometer Plug ANSI 8

Thermocouple connectors are an accurate and convenient method of interconnecting temperature sensing components. Use these connectors to form a chain from the measuring tip of the temperature sensor to the host or instrument. It is important that all components in the chain are made of the same thermocouple material to prevent any change or distortion of the original signal. To achieve this, the pins of the thermocouple connector are made of the same material as the thermocouple used to connect or compensate the material. The thermocouple type is clearly printed on the connector housing and is also marked with colors for easy identification. Open the connector, and then use two fixing screw clips to simply tighten the thermocouple wire in place. The miniature thermocouple plug connector can then be inserted into the mating miniature thermocouple socket connector.
