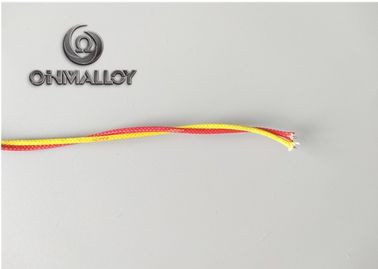

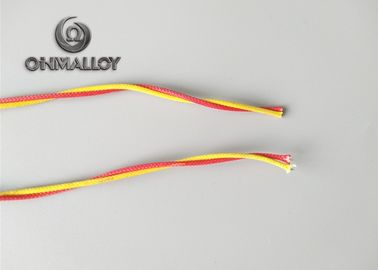

0.81 Mm Type K Thermocouple Wire With Fiberglass Insulation Custom Color

China 0.81 Mm Type K Thermocouple Wire With Fiberglass Insulation Custom Color supplier
0.81 Mm Type K Thermocouple Wire With Fiberglass Insulation Custom Color supplier 0.81 Mm Type K Thermocouple Wire With Fiberglass Insulation Custom Color supplier

Large Image :  0.81 Mm Type K Thermocouple Wire With Fiberglass Insulation Custom Color

Product Details:

Place of Origin: China(Shanghai)
Brand Name: OHMALLOY
Certification: ISO,Rohs
Model Number: insulated

Payment & Shipping Terms:

Minimum Order Quantity: 200meter
Price: negotiable
Packaging Details: Roll/Spool
Delivery Time: 7-10 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 5 Tons per month
Contact Now
Detailed Product Description
Conductor Material: Positive Ni-Cr,Negative Ni-Al Conductor Type: Stranded,Strand Or Solid
Insulation: Fiberglass Braid Theory: Thermocouple Sensor
Usage: Connecting With Thermocouple And Instrument Machine Color: As Per Customers Request

0.81 mm Type K Thermocouple Wire with Fiberglass Insulation





Thermocouple compensation cables are thermocouple wires with insulation covers which connect the thermocouple and the measuring equipment, to compensate the error caused by the temperature variation between them.



Now OHMALLOY have all processing matching for braiding, extruding, wrapping, varnishing.... So we can make all cable with all insulation such as PVC, PTFE, Silicone rubber, fiberglass,

The MOQ for fiberglass insulated wire can be any length, even 5 meters is workable.

For the insulation such as PVC, PTFE, we can supply 500meters as MOQ. The cables can help many customers on trial stage and test. Based on the different standard of different country, we can produce according each customers requirement.



The applications of thermocouple compensation cable:

These kind of cables are mainly used in the connection between thermocouple and temperature measure devices, such like power industry, chemical industry, petroleum industry, etc.



Continuous Operating Temperatures for Insulated Thermocouple Wire

    Temperature Ratings Physical Properties
Part # Type of Insulation Max Continuous Temp. Abrasion Resistance Moisture Resistance Chemical Resistance
301 Vitreous Silica Braid / Vitreous Silica Braid 982°C 1800°F * * * *
302 Double Glass Braid Singles / Glass Braid Duplex 482°C 900°F * * * * * * * * *
303 Enamel, Glass Braid Singles / Glass Braid Duplex 482°C 900°F * * * * * * * *
304 Standard Glass Braid Singles / Glass Braid Duplex 482°C 900°F * * * * * * * *
305 Double Glass Wrap Singles / Glass Braid Duplex 482°C 900°F * * * * * * * *
306 Non Impregnated Glass Braid / Non Impregnated Glass Braid Duplex 482°C 900°F * * * *
308 Double Cotton Braid Singles / Cotton Braid Duplex 88°C 190°F * * * * * * *
310 Skive TFE Tape, TFE Impreg Glass Braid Singles / Fused TFE Tape Duplex 260°C 500°F * * * * * * * * * * *
311 “S” Glass Braid Singles/ S Glass Braid Jacket No Binder 704°C 1300°F * * * * * * *
350 Nextel Ceramic Fiber 1204°C 2200°F * * * * * *
501 Polyvinyl (PVC)/ Nylon 105°C 221°F * * * * * * * * * * *
502 Polyvinyl (PVC) Singles / Polyvinyl (PVC) Duplex 105°C 221°F * * * * * * * * * *
504 Nylon Singles / Nylon Duplex 150°C 302°F * * * * * * * * * *
505 Polyvinyl (PVC) Single / Fused for Ripcord Duplex, No Jacket 105°C 221°F * * * * * * * * * *
506 FEP Singles /FEP Duplex (30 AWG and Smaller) 204°C 400°F * * * * * * * * * * * *
507 FEP Singles/ FEP Jacket (29 AWG and Larger) 204°C 400°F * * * * * * * * * * * *
508 Wrapped and Fused TFE Singles / Wrapped and Fused TFE Duplex (twisted and shielded) 260°C 500°F * * * * * * * * * * *
509 FEP Singles / Twisted pair with drain wire / Alum. mylar or Polyimide / FEP Duplex (twisted and shielded) 204°C 400°F * * * * * * * * * * * *
510 PVC Singles / Twisted pair with drain wire / Alum. mylar / PVC Duplex (twisted and shielded) 105°C 221°F * * * * * * * * * *
511 Polyimide Tape Wrap Singles/ Twisted Pair No Jacket 260°C² 500°F * * * * * * * * * * * *
512 Polyimide Tape Wrap Singles with Colored Tracers/ Polyimide Tape Wrap Jacket 260°C² 500°F * * * * * * * * * * * *
513 Polyimide Singles / Polyimide Duplex 260°C² 500°F * * * * * * * * * * * *
514 ETFE Singles / ETFE Duplex 150°C 302°F * * * * * * * * * * * *
515 ETFE Singles / Twisted Pair / ETFE Duplex 150°C 302°F * * * * * * * * * * * *
516 PFA Singles / PFA Duplex 260°C 500°F * * * * * * * * * * * *
517 PFA Singles/ Twisted Pair or 4 Conductors/ Aluminum Polyimide Shield and Drain/ PFA Jacket 260°C 500°F * * * * * * * * * * * *
520 TFE Enamel Singles/ FEP Ripcord 204°C 400°F * * * * * * * * * * * *
521 S Glass Braid Singles/ S Glass Braid Jacket with Binder 704°C 1300°F * * * * * * *
CHARACTERISTICS:
Temperature coefficient 0.00032 K−1
Electrical resistivity 0.294 µΩ m
Mechanical properties
Elongation at break <44%
Thermal conductivity 30 W/m/K
Tensile strength 620–780 MPa
