Polyethylene Insulated Enameled Nichrome Wire Ni80Cr20 Ni30Cr20 Ni60Cr15

China Polyethylene Insulated Enameled Nichrome Wire Ni80Cr20 Ni30Cr20 Ni60Cr15 supplier
Polyethylene Insulated Enameled Nichrome Wire Ni80Cr20 Ni30Cr20 Ni60Cr15 supplier Polyethylene Insulated Enameled Nichrome Wire Ni80Cr20 Ni30Cr20 Ni60Cr15 supplier

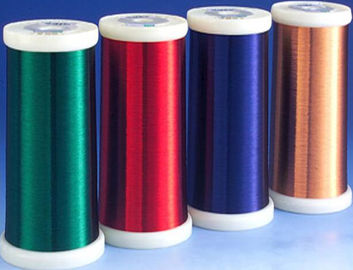

Large Image :  Polyethylene Insulated Enameled Nichrome Wire Ni80Cr20 Ni30Cr20 Ni60Cr15

Product Details:

Place of Origin: China(Shanghai)
Brand Name: OHMALLOY
Certification: ISO9001-2008
Model Number: insulated wire

Payment & Shipping Terms:

Minimum Order Quantity: 100,meters
Price: negotiable
Packaging Details: in spool/ carton packed
Delivery Time: 7-10 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500000 meter per month
Contact Now
Detailed Product Description
Conductor Material: Nichrome Type: Insulated
Conductor Type: Stranded,Solid Insulation Material: Polyethylene
Color: Customized Standard: GB/T 1234-2012

Polyethylene Insulated Enameled Nichrome Wire Ni80Cr20 Ni30Cr20 Ni60Cr15



Enameled Alloy Wire(Resistance heating wire and resistance wire)
Common Name:(enameled Resistor wire,enameled heating wire,enameled wound wire)

Product Description

These enameled resistance wires have been broadly used for standard resistors, automobile parts, winding resistors, etc. using the insulation processing best suited for these applications, taking full advantage of the distinctive features of enamel coating.

Furthermore, we will carry out enamel coating insulation of precious metal wire such as silver and platinum wire upon order. Please make use of this production-on-order.

Type of bare alloy wire

Copper-nickel alloy wire, Constantan Wire,CuNi1~CuNi44
Ni-Cr Alloy wire NiCr35/20,NiCr70/30,NiCr60/15,NiCr80/20,NiCr90/10,NiCr AA,Karma.
Fe-Cr-Al Alloy wire

Cr13Al4,Cr21Al4,Cr21Al6,Cr23Al5,Cr25Al5,

Cr21Al6Nb,Cr27Al7Mo2,

Cu-Ni-Mn Alloy wire CuMn12Ni2,CuMn12Ni4,Manganin
Any copper alloy and nickel alloy is available

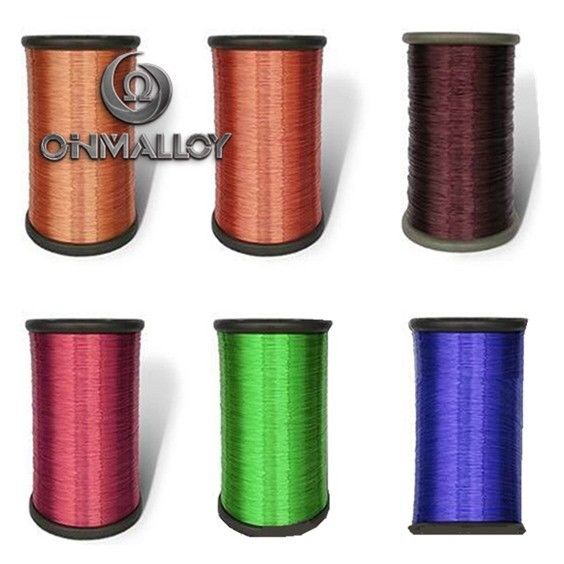

Color of enameled insulation:

Red,Green,Yellow,Black,Blue,Nature etc.



Polyethylene Insulated Enameled Nichrome Wire Ni80Cr20 Ni30Cr20 Ni60Cr15

Type of insulation

Insulation-enamelled Name

Thermal Level℃

(working time 2000h)

Code Name GB Code ANSI. TYPE
Polyurethane enamelled wire 130 UEW QA MW75C
Polyester enamelled wire 155 PEW QZ MW5C
Polyester-imide enamelled wire 180 EIW QZY MW30C
Polyester-imide and polyamide-imide double coated enameled wire 200

EIWH

(DFWF)

QZY/XY MW35C
Polyamide-imide enamelled wire 220 AIW QXY MW81C


Style of supply

Alloys Name Type Dimension
Enameled-W Wire D=0.018mm~3mm
Enameled-R Ribbon W=0.4~24 T=0.01~0.2mm







Maximum outside diameter and minimum paint film thickness of enameled wire

Nominal diameter

mm

Minimum film thickness Maximum outside diameter of enameled wire
0.02 0.005 0.009 0.09 0.036
0.022 0.005 0.019 0.032 0.038
0.025 0.006 0.010 0.036 0.042
0.028 0.006 0.010 0.039 0.045
0.030 0.006 0.011 0.042 0.048
0.032 0.006 0.011 0.044 0.050
0.036 0.007 0.012 0.049 0.055
0.040 0.007 0.012 0.053 0.060
0.045 0.008 0.013 0.059 0.066
0.050 0.008 0.014 0.064 0.072
0.056 0.009 0.015 0.071 0.079
0.060 0.009 0.016 0.076 0.084
0.063 0.009 0.016 0.080 0.088
0.071 0.010 0.017 0.089 0.097
0.080 0.011 0.018 0.099 0.108
0.090 0.012 0.019 0.111 0.120
0.100 0.012 0.021 0.122 0.132
0.112 0.012 0.021 0.135 0.146
0.125 0.014 0.023 0.150 0.161
0.140 0.015 0.024 0.166 0.179
0.150 0.016 0.025 0.177 0.191
0.160 0.017 0.028 0.188 0.202
0.180 0.018 0.028 0.210 0.225
0.200 0.019 0.030 0.231 0.248
0.224 0.021 0.032 0.258 0.275
0.250 0.022 0.034 0.285 0.304
0.280 0.024 0.036 0.318 0.338
0.300 0.025 0.037 0.339 0.360
0.315 0.026 0.038 0.356 0.376
0.355 0.027 0.041 0.398 0.420
0.400 0.028 0.043 0.445 0.468
0.450 0.030 0.048 0.498 0.524
0.500 0.031 0.049 0.551 0.578
0.560 0.034 0.052 0.615 0.643
0.600 0.035 0.054 0.657 0.686
0.630 0.038 0.056 0.689 0.718
0.710 0.038 0.059 0.773 0.805
0.00 0.041 0.062 0.869 0.902
0.900 0.043 0.066 0.973 1.010
1.000 0.048 0.070 1.079 1.117
1.120 0.049 0.074 1.205 1.247
1.250 0.053 0.080 1.343 1.387
1.400 0.058 0.085 1.499 1.548
1.500 0.059 0.090 1.605 1.654
