Galvanised Round Steel Wire Armour Polyethylene PE Insulation PVC Jacket For K Thermocouple

China Galvanised Round Steel Wire Armour Polyethylene PE Insulation PVC Jacket For K Thermocouple supplier
Galvanised Round Steel Wire Armour Polyethylene PE Insulation PVC Jacket For K Thermocouple supplier Galvanised Round Steel Wire Armour Polyethylene PE Insulation PVC Jacket For K Thermocouple supplier

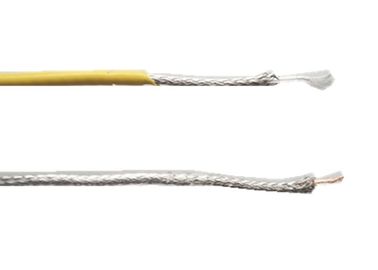

Large Image :  Galvanised Round Steel Wire Armour Polyethylene PE Insulation PVC Jacket For K Thermocouple

Product Details:

Place of Origin: China(Shanghai)
Brand Name: OHMALLOY
Certification: ISO9001-2008
Model Number: insulated wire

Payment & Shipping Terms:

Minimum Order Quantity: 100,meters
Price: negotiable
Packaging Details: in spool/ carton packed
Delivery Time: 7-10 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500000 meter per month
Contact Now
Detailed Product Description
Type: K Type Thermocouple Wire Conductor Material: Positive Ni-Cr,Negative Ni-Al
Application: Electrical Equipment Conductor Type: Strand Or Solid
Insulation Material: Polyethylene PE Color: As Per Customers Request
Armour: Galvanished Round Steel Wire Jacket: PVC

Galvanished Round Steel Wire Armour Polyethylene PE Insulation PVC Jacket For K Thermocouple



Conductor material:



Material Chemical composition(%)
Ni Al Cr Si Mn
Chromel 90   10
Alumel 95 1-2   1-2 0.5-1.5



Structure:



Conductor size 0.5mm
Inner Insulation material Polyethylene PE
Insulation layer thickness 0.2mm
Armour material Galvanished round steel wire
Armour thickness 0.2mm
Out jacket material PVC
Out jacket thickness 0.08mm





Remarks: The size can be changed if special requirement.

The thickness of insulation also can be adjusted by special requirement. We can do insulation thickness 0.2mm to 2.5mm



Calibration tolerance:+/-1.1 ℃ or +/-0.4%



Color code: ANSI 96.1 or IEC 584-2

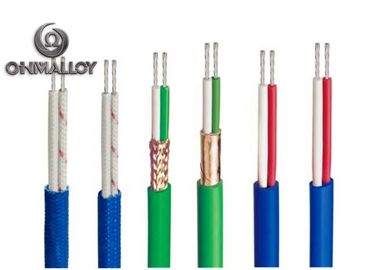

Galvanised Round Steel Wire Armour Polyethylene PE Insulation PVC Jacket For K Thermocouple



Conductor Insulator Packing

sectional area

mm2

Conductor

Construction

NO. x φmm

Diameter

mm

Insulator

Thick

mm

Jacket

Thick

mm

Over

Diameter

mm

Mt/coils
0.20 7x0.20 0.61 0.20 0.15 1.3X2.3 305
19x0.12 0.60 0.20 0.15 1.3X2.3 305
0.30 7x0.25 0.76 0.20 0.15 1.5X2.6 305
19x0.15 0.76 0.20 0.15 1.5X2.6 305
0.50 7x0.3 0.81 0.20 0.15 1.8X2.7 305
0.81 0.81 0.20 0.15 1.8X2.7 305
1.0 7x0.43 1.13 0.20 0.20 2.0X3.6 305
1.13 1.13 0.20 0.20 2.0X3.6 305
1.5 7x0.52 1.38 0.35 0.20 2.5X4.4 200
1.38 1.38 0.35 0.20 2.5X4.4 200
