Compensation K Type Thermocouple Wire 285 Degree Celsius FEP Backed Fused Tape

China Compensation K Type Thermocouple Wire 285 Degree Celsius FEP Backed Fused Tape supplier
Compensation K Type Thermocouple Wire 285 Degree Celsius FEP Backed Fused Tape supplier Compensation K Type Thermocouple Wire 285 Degree Celsius FEP Backed Fused Tape supplier Compensation K Type Thermocouple Wire 285 Degree Celsius FEP Backed Fused Tape supplier Compensation K Type Thermocouple Wire 285 Degree Celsius FEP Backed Fused Tape supplier

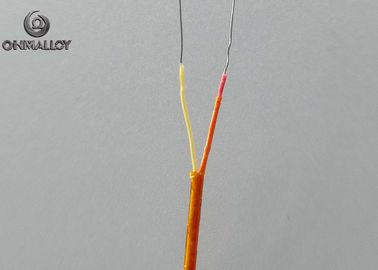

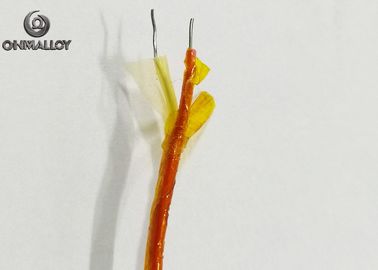

Large Image :  Compensation K Type Thermocouple Wire 285 Degree Celsius FEP Backed Fused Tape

Product Details:

Place of Origin: China
Brand Name: OHMALLOY/OEM
Certification: RoHs
Model Number: SP-KP

Payment & Shipping Terms:

Minimum Order Quantity: 500 meter
Packaging Details: Spool+paper carton
Delivery Time: 5-15 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 50000 meters per month
Contact Now
Detailed Product Description
Name: Kapton Cable RTD Type K Cable 285 Degree Celsius FEP Backed Fused Tape Insulated Material: FEP Backed Kapton Fused Tape
Type: Type K J N T S R PT100 Operating Temperature (max.): 285 °C (400 °C For Limited Duration)
Color Code: ANSI/IEC(or Customized) Tape Thickness: 0.03mm-0.15mm

Kapton Cable RTD Type K Cable 285 Degree Celsius FEP Backed Fused Tape ANSI IEC

Specifications:
1. Style:Compensation Wire
2. Thermocouple RTD wire
Thermocouple RTD wire Classification
1. Thermocouple level (high temperature level). This type of thermocouple wire is mainly suitable for thermocouple type K, J, E, T, N and L and other high temperature detection instrument, temperature sensor, etc.
2. Compensating wire level (low temperature level). This type of thermocouple wire is mainly suitable for compensating cable and extension wire of various thermocouples of type S, R, B, K, E, J, T, N and L, heating cable, control cable and so on.
Thermocouple variety and index




Thermocouple Variety and Index

Variety

Type

Measurement Range(°C)

NiCr-NiSi

K

-200-1300

NiCr-CuNi

E

-200-900

Fe-CuNi

J

-40-750

Cu-CuNi

T

-200-350

NiCrSi-NiSi

N

-200-1300

NiCr-AuFe0.07

NiCr-AuFe0.07

-270-0


Compensation K Type Thermocouple Wire 285 Degree Celsius FEP Backed Fused Tape

3 . Dimensions and Tolerance of Fiberglass Insulated Thermocouple Wire
Dimensions / Tolerance mm ) : 4.0+-0.25
Color code & initial calibration tolerances for thermocouple wire:

Thermocouple Type ANSI Color Code Initial Calibration Tolerances
Wire Alloys Calibration +/-
Conductor
Jacket Temperature Range Standard
Limits
Special
Limits
Iron(+) vs.
Constantan(-)
J White/Red Brown 0°C to +285°C
285°C to +750°C
±2.2°C
± .75%
±1.1°C
± .4%
CHROMEL(+) vs.
ALUMEL(-)
K Yellow/Red Brown -200°C to -110°C
-110°C to 0°C
0°C to +285°C
285°C to +1250°C
± 2%
±2.2°C
±2.2°C
± .75%
±1.1°C
± .4%
Copper(+) vs.
Constantan(-)
T Blue/Red Brown -200°C to -65°C
-65°C to +130°C
130°C to +350°C
± 1.5%
±1°C
± .75%
± .8%
± .5°C
± .4%
CHROMEL(+) vs.
Constantan(-)
E Purple/Red Brown -200°C to -170°C
-170°C to +250°C
250°C to +340°C
340°C+900°C
± 1%
±1.7°C
±1.7°C
± .5%
±1°C
±1°C
± .4%
± .4%


Color Code & Initial Calibration Tolerance for Extension Wire:

Extension type ANSI Color Code Initial Calibration Tolerances
Wire Alloys Calibration +/-
Conductor
Jacket Temperature Range Standard
Limits
Special
Limits
Iron (+) vs. Constantan(-) JX White/Red Black 0°C to +200°C ±2.2°C ±1.1°C
CHROMEL (+) vs. ALUMEL (-) KX Yellow/Red Yellow 0°C to +200°C ±2.2°C ±1.1°C
Copper(+) vs. Constantan(-) TX Blue/Red Blue -60°C to +100°C ±1.1°C ± .5°C
CHROMEL(+) vs. Constantan(-) EX Purple/Red Purple 0°C to +200°C ±1.7°C ±1.1°C


PVC-PVC Physical Properties:

Characteristics Insulation Jacket
Abrasion Resistance Good Good
Cut Through Resistance Good Good
Moisture Resistance Excellent Excellent
Solder Iron Resistance Poor Poor
Service Temperature 105ºC continuous
150ºC single
105ºC continuous
150ºC single
Flame Test Self-extinguishing Self-extinguishing
