RTD Type Fiberglass Insulation Thermocouple Wire High Accuracy ISO9001

China RTD Type Fiberglass Insulation Thermocouple Wire High Accuracy ISO9001 supplier
RTD Type Fiberglass Insulation Thermocouple Wire High Accuracy ISO9001 supplier RTD Type Fiberglass Insulation Thermocouple Wire High Accuracy ISO9001 supplier RTD Type Fiberglass Insulation Thermocouple Wire High Accuracy ISO9001 supplier

Large Image :  RTD Type Fiberglass Insulation Thermocouple Wire High Accuracy ISO9001

Product Details:

Place of Origin: China
Brand Name: OHMALLOY/OEM
Certification: ISO9001
Model Number: SP-RTD-FB-FB-SS304-0.5R

Payment & Shipping Terms:

Minimum Order Quantity: 100 meter

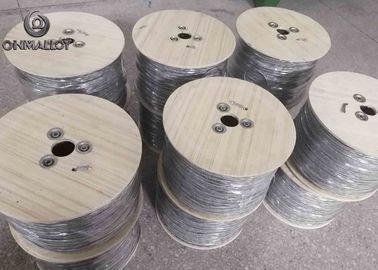

Packaging Details: Coil style
Delivery Time: 5-15 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 80000 meter per month
Contact Now
Detailed Product Description
Name: Thermocouple Extension Cable RTD Type Conductor Type: Pure Copper/Nickel Plated Copper/Tinned Copper/Sliver Plated Copper
Size: 0.5R(7/0.3mm) Insulation: Fiberglass(400/600/800/1000/1200 Degree Celsius)
Sheath Material: SS304/Copper/Tinnned Copper Max Continue Working Temp.: 400 Degree Celsius

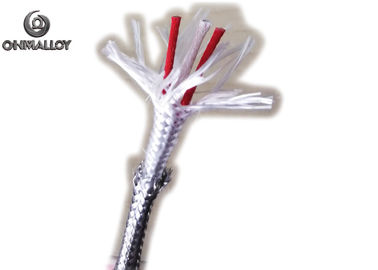

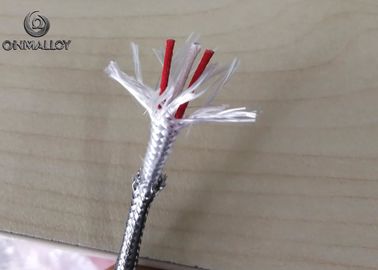

Thermocouple Extension Cable RTD Type Fiberglass Insulated Stainless Steel 304 Sheath






Cable Specification
Item Name Type RTD/PT100 Extension Cable  RTD Type Fiberglass Insulation Thermocouple Wire High Accuracy ISO9001
Conductor Material +Copper -Copper
Conductor Dia  7/0.3mm(0.5mm2, ±0.01mm)
Insulation and Thickness Fiberglass(long term: 400℃ short term:500℃) 0.2mm
Insulation Diameter 1.6mm(±0.2mm)
Jacket Material Fiberglass(long term: 400℃ short term:500℃) 0.2mm
Outer Sheath SS304 Braiding
Outer Insulated Diameter 3.8mm(±0.2mm)
Weight 32KG/KM
Color Code IEC-584-3 (+Orange -White Overall:Orange Tracer)



Thermocouple Cable Grade

A: Extension Grade Cable

Whose wire composition is totally as the same as the thermocouple wire, remarked by the letter“X”after the thermocouple symbol number, such as“KX”“JX”“TX”

B: Compensation Grade Cable

Whose wire composition is different from the thermocouple wire, but its wire electromotive force (EMF) value is the same as thermocouple wire only at 0-100℃ or 0-200℃. It remarked by the letter“C”after the thermocouple symbol number, such as“KC”“JC”“TC”

  1. For cost consideration, when the tested temperature under 200℃, compensation grade cable is preferred. But compensation grade cable will occur enormous tested temperature value deviation if the tested temperature above 200℃. The higher the tested temperature, the greater deviation be.
  2. For compensation grade cable, the max testing temperature is less than 200℃, the bigger the cable, the smaller the signal loss.
  3. Extension cable and compensation cable comparison:



    Performance

Extension Grade Compensation Grade

Material

Same as thermocouple Different from thermocouple
EMF Value Feature Same as the thermocouple’s at certain temperature range Same as the thermocouple’s
Deviation Curve Nonlinear, varies with temperature

  Linear

Working Temperature Range Limited(usual at 100℃) Unlimited(depend on insulation material temperature bearing)
Line Resistance Low resistance High resistance
Compensation Contact Interference Different contactor material may cause interference

None

Accuracy

Low

High

Price

Low

High(about 1-2 times higher)



RTD Type Fiberglass Insulation Thermocouple Wire High Accuracy ISO9001





For the extension/compensation cable, the basic structure is conductor and insulation.

To increase its temperature bearing ability and to install easily, jacket is applicable.



In the working environment, there are too much factors will interference the EMF signal, therefore shield layer is practical way to prevent the cable from interference caused by complex environment.
