Silicone Rubber Thermocouple Cable Type K IEC Good Flexibility Anti Aging

China Silicone Rubber Thermocouple Cable Type K IEC Good Flexibility Anti Aging supplier
Silicone Rubber Thermocouple Cable Type K IEC Good Flexibility Anti Aging supplier Silicone Rubber Thermocouple Cable Type K IEC Good Flexibility Anti Aging supplier Silicone Rubber Thermocouple Cable Type K IEC Good Flexibility Anti Aging supplier

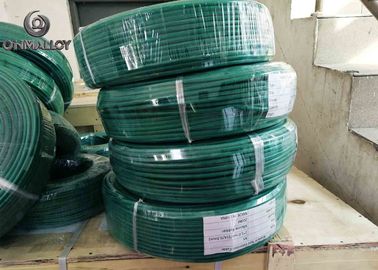

Large Image :  Silicone Rubber Thermocouple Cable Type K IEC Good Flexibility Anti Aging

Product Details:

Place of Origin: China
Brand Name: OHMALLOY/OEM
Certification: RoHS/CCC
Model Number: SP-K-SR-SR-0.22R

Payment & Shipping Terms:

Minimum Order Quantity: 500 meters
Packaging Details: Coil+plywood case
Delivery Time: 5-15working days after payment confirmed
Payment Terms: L/C, T/T, Western Union, MoneyGram,paypal
Supply Ability: 300000 meters per month
Contact Now
Detailed Product Description
Name: Silicone Rubber Cable Type K Conductor Material: +Chromel -Alumel
Conductor Size: 7 Strands Of 0.2mm Finished Cable Diameter: 5-6mm
Standard: IEC-584 Coating Material: Silicone Rubber
Feature: Good Flexibility Anti Ageing Service: Provide Customizing Service
Package: Plywood Case

Silicone Rubber Cable Type K IEC Good Flexibility Anti Ageing Provide Customizing Service



Product Name: Type K Silicone Rubber Thermocouple Extension Cable

Specification: 2X0.22mm2 (7/0.2mm) cable diameter: 5.5mm

Color code : + Green, -White, Overall:Green







Conductor Diameter



Insulation& Shielding material





Max.Temperature Insulation Material





Max.Temperature Conductor Material





EMF Value(MV)





100℃      200℃

Inner & Outer Insulation Overall
2X0.22 mm2 Silicone Rubber Silicone Rubber 200℃ 400℃   4.068      8.180
2X0.22 mm2 Qualified Qualified Qualified Qualified Class I   Qualified



Chemical Composition

Material Chemical composition (%)
Ni Cr Si Mn Al
KP(Chromel) 90 10
KN(Alumel) 95   1-2 0.5-1.5 1-1.5



The product matches 1ST tolerance class as per IEC 60 584.

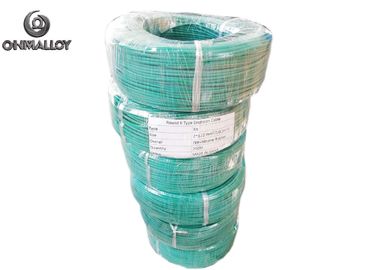

Silicone Rubber Thermocouple Cable Type K IEC Good Flexibility Anti Aging

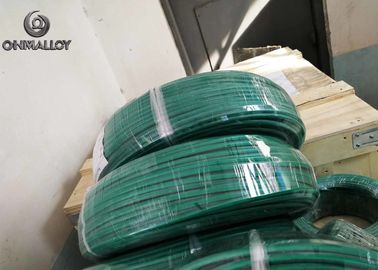

Silicone Rubber Thermocouple Cable Type K IEC Good Flexibility Anti Aging



For the extension/compensation cable, the basic structure is conductor and insulation.

To increase its temperature bearing ability and to install easily, jacket is applicable.



In the working environment, there are too much factors will interference the EMF signal, therefore shield layer is practical way to prevent the cable from interference caused by complex environment.



ReF. The Short Name for Materials



Type Insulation material CODE Inner Shielding CODE JACKET CODE
K FEP FP     FEP FP
T PFA FA Al foil AL PFA FA
E PVC 70℃ LP copper wire CU PVC 70℃ LP
J PVC 105℃ HP Tinned copper TC PVC 105℃ HP
N Fiberglass 400℃ BL Nickel plated copper NC Fiberglass 400℃ BL
SC Fiberglass600℃ BM Silver plated copper AC Fiberglass600℃ BM
  Fiberglass700℃ BH     Fiberglass700℃ BH
  MICA FIBER 650℃ MA
KCA Vitreous Silica 800℃ VS SS 304 wire SS Vitreous Silica 800℃ VS
KCB Silica fiber1000℃ SV Inconel 600 wire 600 Silica fiber1000℃ SV
RTD Ceramic fiber1200℃ CF Inconel 625 wire 625 Ceramic fiber1200℃ CF
  PTFE PT     PTFE PT
  ETFE ET     ETFE ET
  KAPTON KP     KAPTON KP
  Silicone rubber SR     Silicone rubber SR
  Rubber RU     Rubber RU
  PE PE     PE PE
