Durable K Type PFA Cable Copper Wire Grounded With RoHS / CCC Certification

I'm Online Chat Now
Certification
China Ohmalloy Material Co.,Ltd certification
China Ohmalloy Material Co.,Ltd certification
I search for Nichrome plate long time, and successfully bought it from Ohmalloy material. OHMALLOY provide real good service in alloy service and can always help me in finding the correct resistance alloy.

—— Mike Harness

OHMALLOY can provie me only 1kg Kovar alloy wire 1.0mm with short time, that is really amazing. Thanks

—— Janey

Really professional in thermocouple wire and cable, what i want just can get from OHMALLOY

—— Chris

Enamelled Constantan 0.08mm, i never expect to get only 2kg of it. But OHMALLOY supply it to me with good quality. God Jesus! Such a reliable supplier from china

—— Aaron

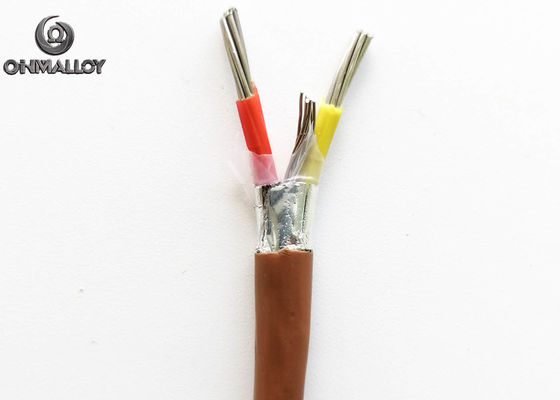

Durable K Type PFA Cable Copper Wire Grounded With RoHS / CCC Certification

Durable K Type PFA Cable Copper Wire Grounded With RoHS / CCC Certification
Durable K Type PFA Cable Copper Wire Grounded With RoHS / CCC Certification Durable K Type PFA Cable Copper Wire Grounded With RoHS / CCC Certification Durable K Type PFA Cable Copper Wire Grounded With RoHS / CCC Certification Durable K Type PFA Cable Copper Wire Grounded With RoHS / CCC Certification Durable K Type PFA Cable Copper Wire Grounded With RoHS / CCC Certification Durable K Type PFA Cable Copper Wire Grounded With RoHS / CCC Certification

Large Image :  Durable K Type PFA Cable Copper Wire Grounded With RoHS / CCC Certification Get Best Price

Product Details:
Place of Origin: China
Brand Name: OHMALLOY/OEM
Certification: RoHS/CCC
Model Number: SP-KX-FA-AL+D-FA-1.5R-ANSI
Payment & Shipping Terms:
Minimum Order Quantity: 500 meters
Packaging Details: Coil+plywood case
Delivery Time: 5-15working days after payment confirmed
Payment Terms: L/C, T/T, , MoneyGram,paypal
Supply Ability: 300000 meters per month
Detailed Product Description
Name: Grounded And Sheath K Type PFA Cable Conductor Material: +Chromel -Alumel

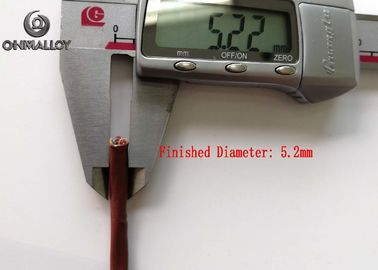

Conductor Size: 7 Strands Of 0.51mm Finished Cable Diameter: 5.2mm(+/-0.3mm)
Color Code: ANSI(+Purple -Red, Overall: Purple) Coating Material: PFA(260℃)
Sheath: Aluminium+FEP Foil Wrapping Drain Wire: 7/0.3mm Nickel Plated Copper Braiding
High Light:

k type thermocouple cable

,

thermocouple bare wire

,

thermocouple extension wire

K Type PFA Cable KX-FA-AL+D-FA-1.5R Copper Wire Grounded Aluminium+ Foil Wrapping

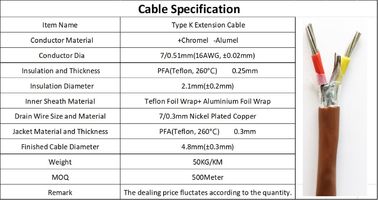

Cable Specification
Item Name Type K Extension Cable
Durable K Type PFA Cable Copper Wire Grounded With RoHS / CCC Certification 0
Conductor Material +Chromel -Alumel

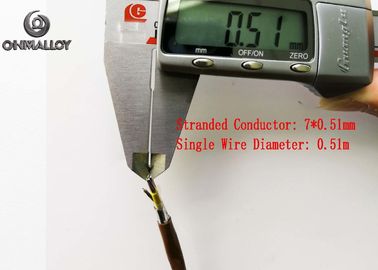

Conductor Dia 7/0.51mm(16AWG, ±0.02mm)
Insulation and Thickness PFA(, 260℃) 0.25mm

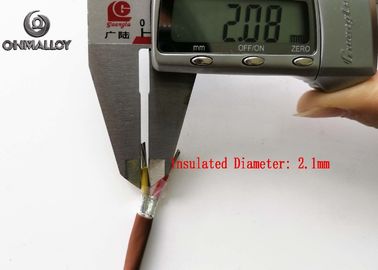

Insulation Diameter 2.1mm(±0.2mm)

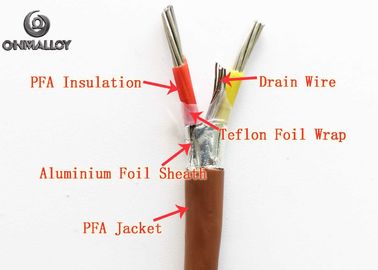

Inner Sheath Material Foil Wrap+ Aluminium Foil Wrap
Drain Wire Size and Material 7/0.3mm Nickel Plated Copper
Jacket Material and Thickness PFA(, 260℃) 0.3mm
Finished Cable Diameter 4.8mm(±0.3mm)
Weight 50KG/KM
MOQ 500Meter
Remark The dealing price fluctates according to the quantity.



Conductor Chemical Composition



Material Chemical composition (%)
Ni Cr Si Mn Al
KP(Chromel) 90 10
KN(Alumel) 95   1-2 0.5-1.5 1-1.5



The product matches 1ST tolerance class as per IEC 60 584.





Durable K Type PFA Cable Copper Wire Grounded With RoHS / CCC Certification 1



For the extension/compensation cable, the basic structure is conductor and insulation.

To increase its temperature bearing ability and to install easily, jacket is applicable.



In the working environment, there are too much factors will interference the EMF signal, therefore shield layer is practical way to prevent the cable from interference caused by complex environment.



Thermocouple Extension Cable-Know How



The Extension Wire Name



Compensation Alloy Wire Name Positive Negative
Name Code Name Code
Copper-Copper Nickel 0.6 Copper SPC Copper Nickel 0.6 SNC
Copper-Copper Nickel 0.6 Copper RPC Copper Nickel 0.6 RNC
Iron-Copper Nickel 22 Iron KPCA Copper Nickel 22 KNCA
Copper-Copper Nickel 40 Copper KPCB Copper Nickel 40 KNCB
Chromel-NiSi3 Ni90Cr10 KPX Ni97Si3 KNX
Iron-Copper Nickel 18 Iron NPC Copper Nickel 18 NNC
NiCr14Si-NiSi4Mg NiCr14Si NPX NiSi4Mg NNX
NiCr10-Copper Nickel 45 NiCr10 EPX Copper Nickel 45 ENX
Iron-Copper Nickel 45 Iron JPX Copper Nickel 45 JNX
Copper-Copper Nickel 45 Copper TPX Copper Nickel 45 TNX



The Wire Nominal Chemical Composition for All  Type



Alloy Name Code Nominal Chemical Composition(%)
Cu Ni Cr Si Fe Mg
Copper SPC 100 - - - - -
RPC
KPC
TPC
CuNi0.6 SNC 99.4 0.6 - - - -
RNC
NiCr10 KPX - 90 10 - - -
EPX
NiCr14Si NPX - 84 14.5 1.5 - -
NiSi3 KNX - 97 - 3 - -
NiSi4Mg NNX - 94.5 - 4.5 - 1.0
CuNi40 KNCB 60 40 - - - -
CuNi22 KNCA 78 22 - - - -
CuNi18 NNC 82 18 - - - -
CuNi45 ENX 55 45 - - - -
JNX
TNX
Iron NPC         100
JPX
KPCA
