| Name: | RTD PT100 Cable PVC Insulated SS304 Sheath Sea Ship Cable 4-20mA | Conductor Material: | Nickel Plated Copper |
|---|---|---|---|
| Conductor Size: | 19*0.3mm | Insulation And Jacket: | PVC(105℃) |
| Sheath: | Stainless Steel 304 | Color Code: | Red Red White |
| High Light: | RTD PT100 Cable,SS304 Sheath Thermocouple Cable |
||
RTD PT100 Cable PVC Insulated SS304 Sheath Sea Ship Cable 4-20mA

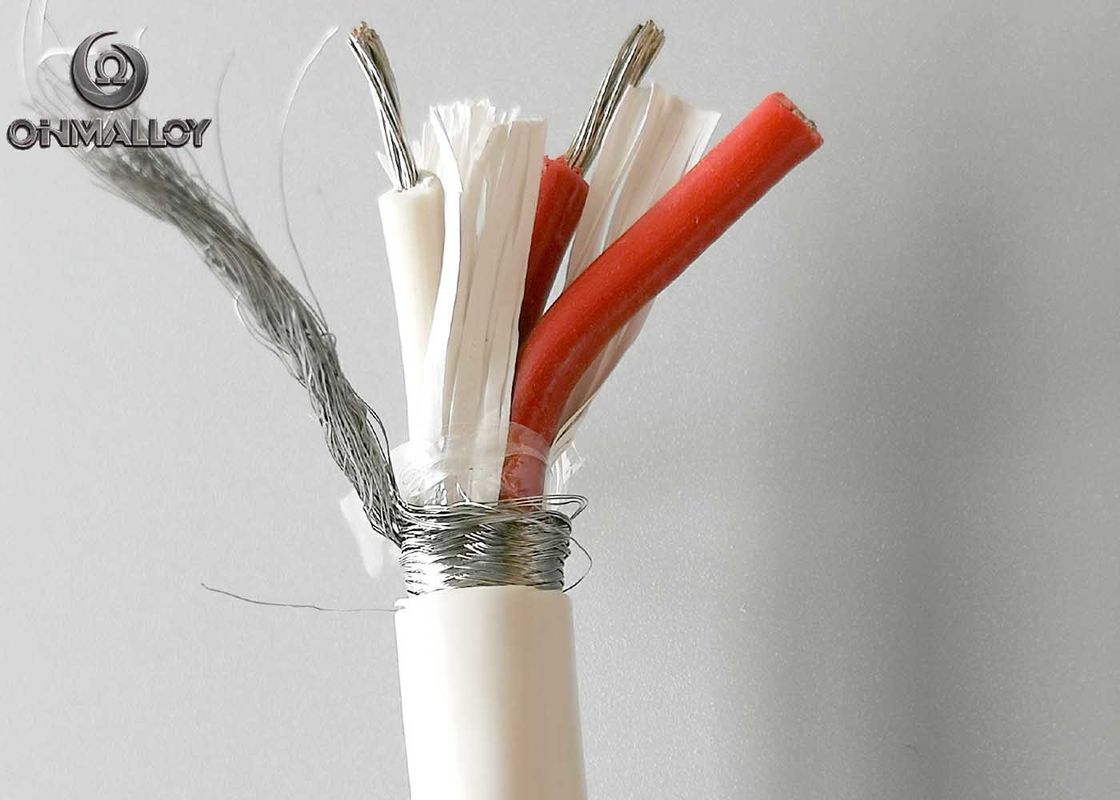

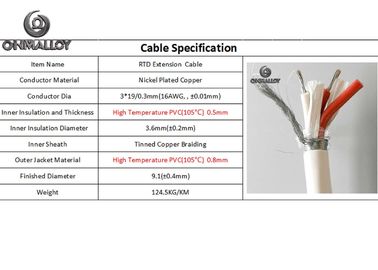

| Cable Specification | ||||
| Item Name | RTD Extension Cable |  |
||
| Conductor Material | Nickel Plated Copper | |||
| Conductor Dia | 3*19/0.3mm(16AWG, , ±0.01mm) | |||
| Inner Insulation and Thickness | High Temperature PVC(105℃) 0.5mm | |||

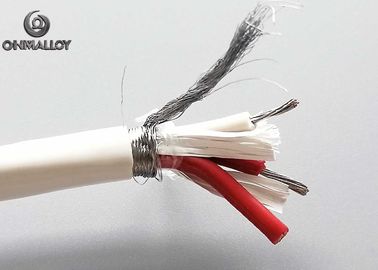

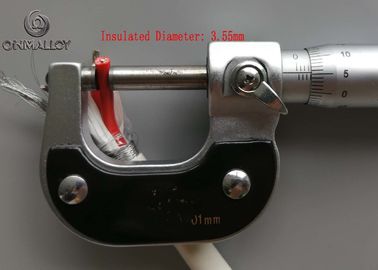

| Inner Insulation Diameter | 3.6mm(±0.2mm) | |||
| Inner Sheath | Tinned Copper Braiding | |||
| Outer Jacket Material | High Temperature PVC(105℃) 0.8mm | |||

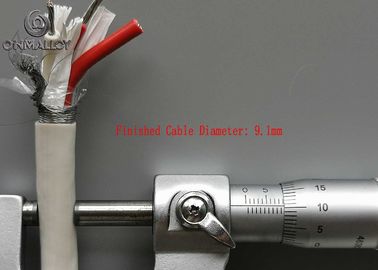

| Finished Diameter | 9.1(±0.4mm) | |||
| Weight | 124.5KG/KM | |||
For the extension/compensation cable, the basic structure is conductor and insulation.
To increase its temperature bearing ability and to install easily, jacket is applicable.
In the working environment, there are too much factors will interference the EMF signal, therefore shield layer is practical way to prevent the cable from interference caused by complex environment.
Thermocouple Extension Cable-Know How
The Compensation Wire Nominal Chemical Composition
| Alloy Name | Code | Nominal Chemical Composition(%) | |||||
| Cu | Ni | Cr | Si | Fe | Mg | ||
| Copper | SPC | 100 | - | - | - | - | - |
| RPC | |||||||
| KPC | |||||||
| TPC | |||||||
| CuNi0.6 | SNC | 99.4 | 0.6 | - | - | - | - |
| RNC | |||||||
| NiCr10 | KPX | - | 90 | 10 | - | - | - |
| EPX | |||||||
| NiCr14Si | NPX | - | 84 | 14.5 | 1.5 | - | - |
| NiSi3 | KNX | - | 97 | - | 3 | - | - |
| NiSi4Mg | NNX | - | 94.5 | - | 4.5 | - | 1.0 |
| CuNi40 | KNCB | 60 | 40 | - | - | - | - |
| CuNi22 | KNCA | 78 | 22 | - | - | - | - |
| CuNi18 | NNC | 82 | 18 | - | - | - | - |
| CuNi45 | ENX | 55 | 45 | - | - | - | - |
| JNX | |||||||
| TNX | |||||||
| Iron | NPC | 100 | |||||
| JPX | |||||||
| KPCA | |||||||
The Alloy Wire EMF Nominal Tolerance Reference
| Extension Cable Code | Alloy Wire Name | Temperature Range(℃) | Application Classification | Tolerence(μV) | Thermocouple Measurement Terminal Temperature(℃) | |
| Precision Grade | Normal Grade | |||||
| SC or RC | Cu-CuNi0.6 | 0-100 | G | ±30(±2.5℃) | ±60(±5.0℃) | 1000 |
| 0-200 | H | - | ±60(±5.0℃) | |||
| KCA | Fe-CuNi22 | 0-100 | G | ±44(±1.1℃) | ±88(±2.2℃) | 900 |
| 0-200 | H | |||||
| KCB | Cu-CuNi40 | 0-100 | G | |||
| KX | NiCr10-NiSi3 | -25-100 | G | |||
| -25-200 | H | |||||
| NC | Fe-CuNi218 | 0-100 | G | ±43(±1.1℃) | ±86(±2.2℃) | 900 |
| 0-200 | H | |||||
| NX | NiCr14Si-NiSi4Mg | -25-100 | G | |||
| -25-200 | H | |||||
| EX | NiCr10-CuNi45 | -25-100 | G | ±81(±1.0℃) | ±138(±1.7℃) | 500 |
| -25-200 | H | |||||
| JX | Fe-CuNi45 | -25-100 | G | ±62(±1.5℃) | ±123(±2.5℃) | 500 |
| -25-200 | H | |||||
| TX | Cu-CuNi45 | -25-100 | G | ±30(±0.5℃) | ±60(±1.0℃) | 300 |
| -25-200 | H | ±48(±0.8℃) | ±90(±1.5℃) | |||
