Ohmalloy PWHT Cable Vitreous Silica Thermocouple Type K Cable 800℃

Ohmalloy PWHT Cable Vitreous Silica Thermocouple Type K Cable 800℃
Ohmalloy PWHT Cable Vitreous Silica Thermocouple Type K Cable 800℃ Ohmalloy PWHT Cable Vitreous Silica Thermocouple Type K Cable 800℃ Ohmalloy PWHT Cable Vitreous Silica Thermocouple Type K Cable 800℃

Large Image :  Ohmalloy PWHT Cable Vitreous Silica Thermocouple Type K Cable 800℃ Get Best Price

Product Details:
Place of Origin: shanghai
Brand Name: OHMALLOY/OEM
Certification: ISO9001:2015
Model Number: SP-K-VS-VS-0.81
Payment & Shipping Terms:
Minimum Order Quantity: 100 meter
Packaging Details: Coil+Paper Carton
Delivery Time: 5-15 working days after payment confirmed
Payment Terms: L/C, T/T, ,Paypal
Supply Ability: 50000 meter per month
Detailed Product Description
Name: Ohmalloy PWHT Cable Vitreous Silica Thermocouple Type K Cable 800℃ Cable Type: Type K
Insulation Material: Vitreous Silica(800℃,max 1000℃) Conductor Size: 0.5mm/0.6mm/0.71mm/0.81mm/1.0mm

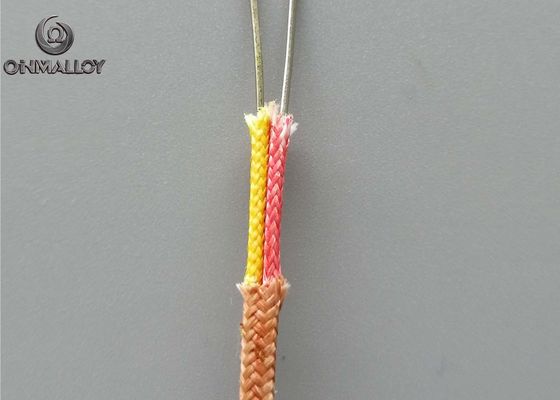

Color: ANSI(yellow, Red)/IEC(green, White) Application: PWHT Accessory
High Light:

Vitreous Silica Thermocouple Cable

,

800℃ Type K Thermocouple Cable

,

ANSI Type K Thermocouple Cable



Ohmalloy PWHT Cable Vitreous Silica Thermocouple Type K Cable 800℃

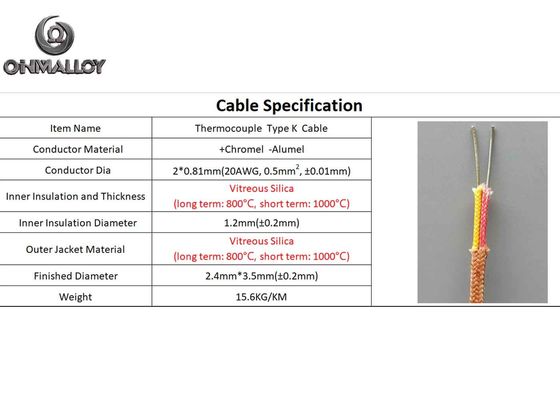

Cable Specification
Item Name Thermocouple Type K Cable Ohmalloy PWHT Cable Vitreous Silica Thermocouple Type K Cable 800℃ 0
Item Number K-VS-VS-0.81
Conductor Material +Chromel -Alumel
Conductor Dia 2*0.81mm(20AWG, 0.5mm2, ±0.01mm)
Inner Insulation and Thickness Vitreous Silica (long term: 800℃, short term: 1000℃)
Inner Insulation Diameter 1.2mm(±0.2mm)
Outer Jacket Material Vitreous Silica (long term: 800℃, short term: 1000℃)
Finished Diameter 2.4mm*3.5mm(±0.2mm)
Weight 15.6KG/KM





















































 Product Name: K-VS-VS-0.81 Type K Thermocouple Extension Cable

Specification : 2X0.81mm(±0.02mm)

Outer Diameter: 2.4*3.5mm(±0.2mm)

Quantity : 3000 meter

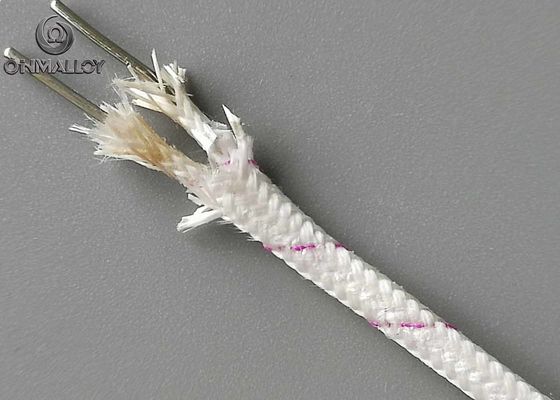

Color code : White, Red Tracer in Positive Wire

Ohmalloy PWHT Cable Vitreous Silica Thermocouple Type K Cable 800℃ 1


Conductor Material Inspection: Chromel Alumel Material Batch NO.: L858D02



Chemical Composition Standard
Elements Ni Cr Mn Si Al Co Other IEC60584
Chromel Bal. 8.8-9.8 / ≤0.3 / ≤0.6 0.2
Alumel Bal. / ≤0.8 ≤0.6 1.6-2.3 / 0.1



Insulation Material Inspection: Vitreous Silica Material Batch No.: V19D01



SiO2 Infiltrant content Fiberglass Nominal Diameter Max Working Temperature (long time) Tex
98% 0.9% 8μm 800℃ 160





PWHT Cable Vitreous Silica Thermocouple Type K Cable Application

Ohmalloy PWHT Cable Vitreous Silica Thermocouple Type K Cable 800℃ 2
