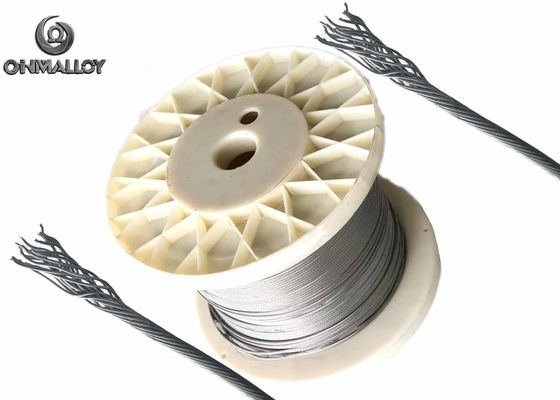

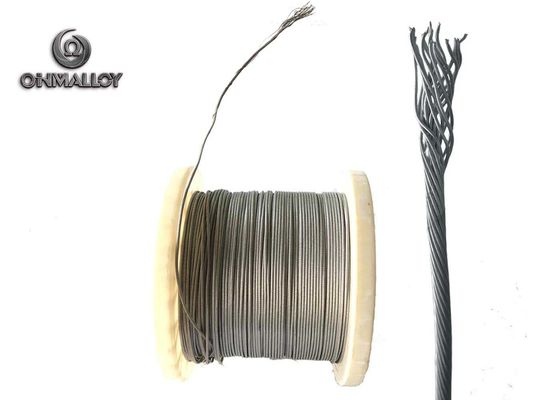

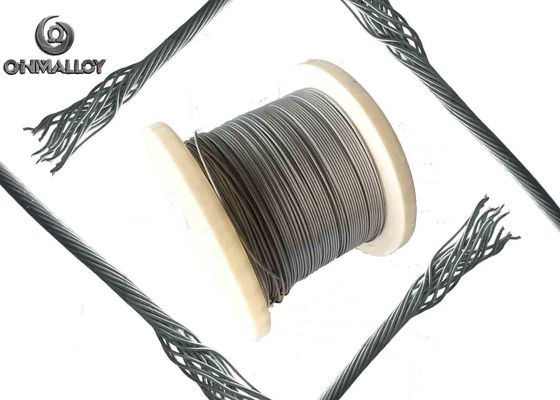

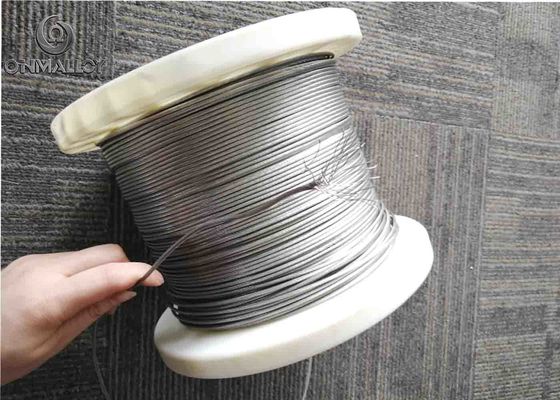

Nickel 212 Ni98Mn2 Wire 19 38 Strands For PWHT Ceramic Heating Pad Wire

Nickel 212 Ni98Mn2 Wire 19 38 Strands For PWHT Ceramic Heating Pad Wire
Nickel 212 Ni98Mn2 Wire 19 38 Strands For PWHT Ceramic Heating Pad Wire Nickel 212 Ni98Mn2 Wire 19 38 Strands For PWHT Ceramic Heating Pad Wire Nickel 212 Ni98Mn2 Wire 19 38 Strands For PWHT Ceramic Heating Pad Wire Nickel 212 Ni98Mn2 Wire 19 38 Strands For PWHT Ceramic Heating Pad Wire

Large Image :  Nickel 212 Ni98Mn2 Wire 19 38 Strands For PWHT Ceramic Heating Pad Wire Get Best Price

Product Details:
Place of Origin: shanghai
Brand Name: OHMALLOY/OEM
Certification: ISO9001:2015
Model Number: SP-ni212 rope
Payment & Shipping Terms:
Minimum Order Quantity: 500Meter
Packaging Details: Spool+Plywood Case
Delivery Time: 5-18 working days after payment confirmed
Payment Terms: L/C, T/T, ,Paypal
Supply Ability: 3000 KG per month
Detailed Product Description
Name: Nickel 212 Ni98Mn2 Wire 19 38 Strands For PWHT Ceramic Heating Pad Wire Wire Type: Nickel 212 Ni98Mn2
Wire Strands: 19 Strands Or 38 Strands Rope Handling: Bright,Annealed
Package: 500Meter/Roll Application: PWHT Ceramic Heating Pad Wire
Warrenty: 3 Years
High Light:

Ni98Mn2 Nichrome Alloy

,

PWHT Nichrome Alloy

,

Nickel 212 Ni98Mn2 Wire

Nickel 212 Ni98Mn2 Wire 19 38 Strands For PWHT Ceramic Heating Pad Wire



Product Name: 19 Strand Ni212 wire

Specification: 18*0.61mm+1*0.71mm

Outer Diameter: 2.9mm(±0.2mm)

Quantity: 1500 meter

Resistance: 0.021 ohm/meter (±5%)



Nickel 212 Ni98Mn2 Wire 19 38 Strands For PWHT Ceramic Heating Pad Wire 0





Conductor Material Inspection: Ni212 Material Batch NO.: N728D09



Chemical Composition(﹪)
Elements C Mn Si S Ni+Co Cu Mg Fe
Ni212 <0.1 1.5-2.5 <0.2 <0.006 >97 <0.2 <0.2 <0.25



Nickel 212 Ni98Mn2 Wire 19 38 Strands For PWHT Ceramic Heating Pad Wire 1






Wire Rope Type and Standard Size Reference:

Alloy Wire No. of Strands Nominal OD (mm) King Wire Size (mm) Resistance (Ω/m) Length (m/kg)
0Cr20Ni80 19*0.523 2.7 0.574 0.285 29
0Cr15Ni60 19*0.523 2.76 0.574 0.29 30
0Cr20Ni80 37*0.385 2.76 0.45 0.279 28
Pure Nickel 19*0.574 2.87 0.574 0.0198 21
Nickel 212 19*0.574 2.87 0.71 0.0234 22



Nickel 212 Ni98Mn2 Wire 19 38 Strands For PWHT Ceramic Heating Pad Wire Application

Nickel 212 Ni98Mn2 Wire 19 38 Strands For PWHT Ceramic Heating Pad Wire 2
