| Name: | Copper Based Nickel CuNi10 NC015 Rod Strip Wire | Material: | CuNi10(CN015) |
|---|---|---|---|
| Resistivity: | 0.15(at 20℃ (Ωmm2/m)) | Temperature Factor Of Resistivity（20℃~600℃）X10-5/℃: | <50 |
| Supply State: | Wire/Strip/Rod | Warranty: | 3 Years |
| High Light: | NC015 Heating Resistance Wire,CuNi10 Heating Resistance Wire,Shipbuilding Copper Nickel Wire |
||

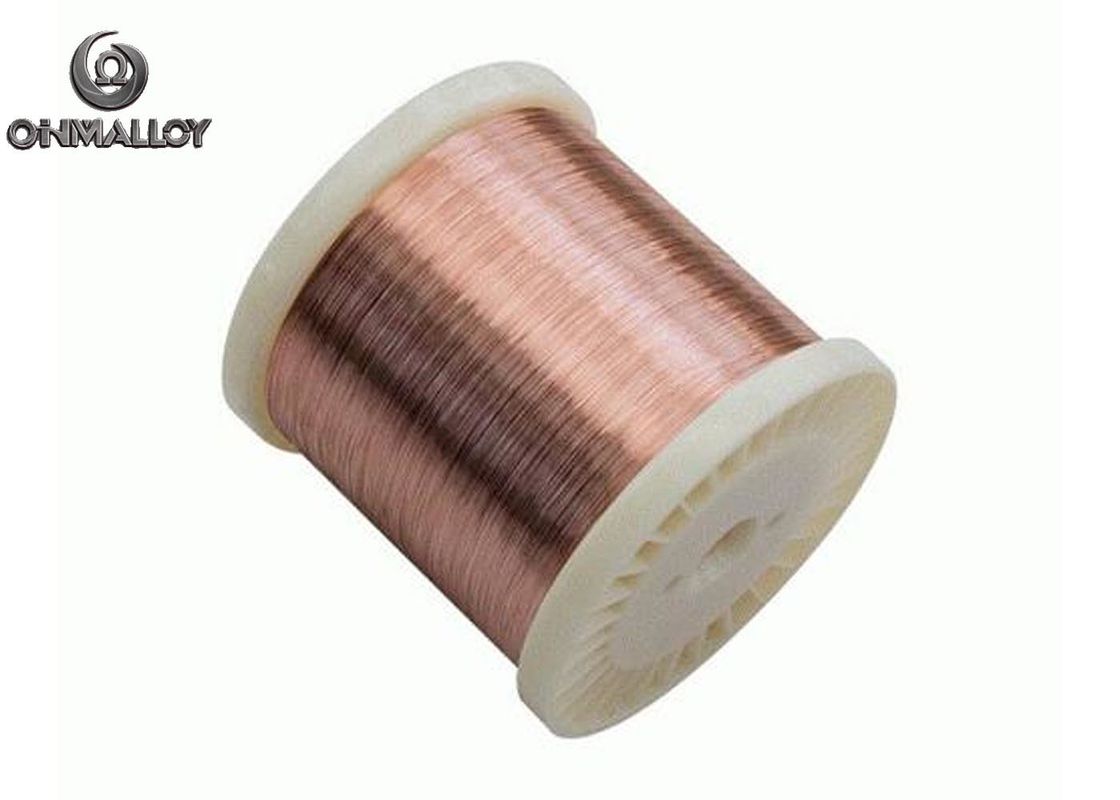

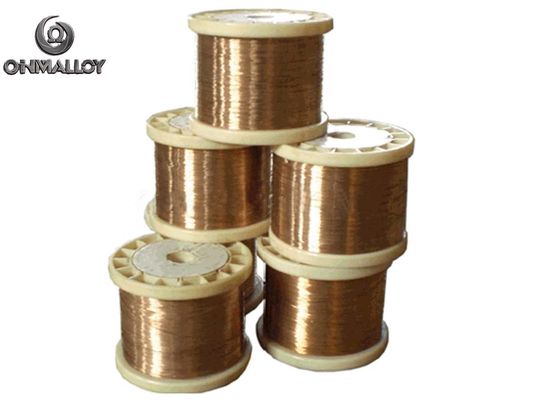

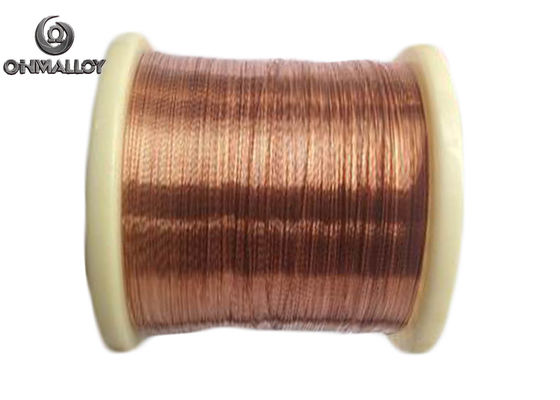

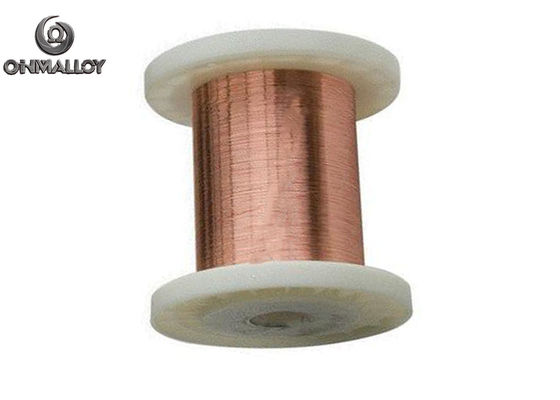

Copper Based Nickel CuNi10 NC015 Rod Strip Wire Heating Resistance Material
The addition of nickel to pure copper can significantly improve the strength, corrosion resistance, hardness, electrical resistance and thermoelectricity, and reduce the temperature coefficient of resistivity. Therefore, compared with other copper alloys, the mechanical and physical properties of cupronickel are extremely good, with good ductility, high hardness, beautiful color, corrosion resistance and deep drawing performance.
It is widely used as corrosion-resistant structural parts in shipbuilding, petroleum, chemical, construction, electric power, precision instruments, medical equipment, musical instruments and other departments. Some cupronickel has special electrical properties, which can be used to make resistance elements, thermocouple materials and compensation wires. Non-industrial cupronickel is mainly used to make decorative crafts.
The ductility of copper-nickel alloy is very good, so it can be used in shipbuilding and petrochemical industry. Some electrical appliances and meters also use the ductility of copper-nickel alloys to manufacture parts. Copper-nickel alloys are mostly used in industrial production. Some valves and some precision resistance parts will be made of copper-nickel alloys.
Copper Nickel Alloy Production Standard(GB/T1234-95)
| Performance Brand | NC003 CuNi1 |
NC005 CuNi2 |
NC010 CuNi6 |
NC012 CuNi8 |
MC012 CuMn3 |
NC015 CuNi10 |
|
| Main Chemical Content％ | Ni | 1 | 2 | 6 | 8 | ___ | 10 |
| Mn | __ | __ | __ | ___ | 3 | ___ | |
| Cu | Bal. | Bal. | Bal. | Bal. | Bal. | Bal. | |
| Element Max Working Temperature℃ | — | 200 | 220 | 250 | 200 | 250 | |
| Density g/cm3 | 8.9 | 8.9 | 8.9 | 8.9 | 8.8 | 8.9 | |
| Resistivity Ωmm2/m, at 20℃ | 0.03±10％ | 0.05±10％ | 0.10±10％ | 0.12±10％ | 0.12±10％ | 0.15±10％ | |
|
Temperature factor of resistivity 10-5/℃(200-600℃) |
<100 | <120 | <60 | <57 | <38 | <50 | |
| Melting Point ℃ | 1085 | 1090 | 1095 | 1097 | 1050 | 1100 | |
| Tensile Strength MPa | ≥210 | ≥220 | ≥250 | ≥270 | ≥290 | ≥290 | |
| Enlogation%(>1.0) | ≥25 | ≥25 | ≥25 | ≥25 | ≥25 | ≥25 | |
| EMF VS Copper V/℃(0-100℃) |
-8 | -12 | -18 | -22 | __ | -25 | |
| Specific heat capacity j/gk(20℃) | 0.38 | 0.38 | 0.38 | 0.38 | 0.39 | 0.38 | |
| Conductivity coefficient w/mk at20℃ | 145 | 130 | 92 | 75 | 84 | 59 | |
| organizational attribute | Austenitic | Austenitic | Austenitic | Austenitic | Austenitic | Austenitic | |
| Magnetic | None-Magnetic | None-Magnetic | None-Magnetic | None-Magnetic | None-Magnetic | None-Magnetic |
|
Style of supply
| Type | Dimension | ||
| Wire | D=0.06mm~8mm | ||
| Ribbon | W=0.4~40 | T=0.05~2.9mm | |
| Strip | W=8~200mm | T=0.1~3.0 | |
| Foil | W=6~120mm | T=0.005~0.1 | |
| Bar | Dia=8~100mm | L=50~1000 | |
