PWHT Hot Tail 37 Strands 0Cr20Ni80 Wire Rope Nichrome Alloy

PWHT Hot Tail 37 Strands 0Cr20Ni80 Wire Rope Nichrome Alloy
PWHT Hot Tail 37 Strands 0Cr20Ni80 Wire Rope Nichrome Alloy PWHT Hot Tail 37 Strands 0Cr20Ni80 Wire Rope Nichrome Alloy PWHT Hot Tail 37 Strands 0Cr20Ni80 Wire Rope Nichrome Alloy PWHT Hot Tail 37 Strands 0Cr20Ni80 Wire Rope Nichrome Alloy

Large Image :  PWHT Hot Tail 37 Strands 0Cr20Ni80 Wire Rope Nichrome Alloy Get Best Price

Product Details:
Place of Origin: China
Brand Name: OHMALLOY/OEM
Certification: ISO9001:2015
Model Number: SP-2080-37Strands
Payment & Shipping Terms:
Minimum Order Quantity: 500Meter
Packaging Details: Spool+Plywood Case
Delivery Time: 5-16 working days after payment confirmed
Payment Terms: L/C, T/T, ,Paypal
Supply Ability: 3000 KG per month
Detailed Product Description
Name: PWHT Hot Tail 37 Strands 0Cr20Ni80 Wire Rope 0.279ohm/meter Nichrome Alloy Wire Type: 0Cr20Ni80
Wire Strands: 37 Strands Wire Size: 36*0.385mm+1*0.45mm
Package: 500Meter/Roll Application: PWHT Ceramic Heating Pad Wire
Wire State: Bright,Annealed
High Light:

37 Strands Nichrome Alloy

,

0Cr20Ni80 Nichrome Wire Rope

,

PWHT Nichrome Alloy

Nickel 212 Ni98Mn2 Wire 19 38 Strands For PWHT Ceramic Heating Pad Wire

Specification
Item Name 0Cr20Ni80 37 Strands Wire Rope PWHT Hot Tail 37 Strands 0Cr20Ni80 Wire Rope Nichrome Alloy 0
Conductor Material 0Cr20Ni80
Conductor Dia 36*0.385mm+1*0.45mm
Finished Diameter 2.8mm(+/-0.3mm)
Resistance 0.279 ohm/meter (±5%)
Wire State Bright, Annealed
Package DIN250
Weight 500Meter/Spool














































Product Name: 37 Strand Cr20Ni80 wire

Specification: 36*0.385mm+1*0.45mm

Outer Diameter: 2.8mm(±0.2mm)

Quantity: 5000 meter

Resistance: 0.279 ohm/meter (±5%)

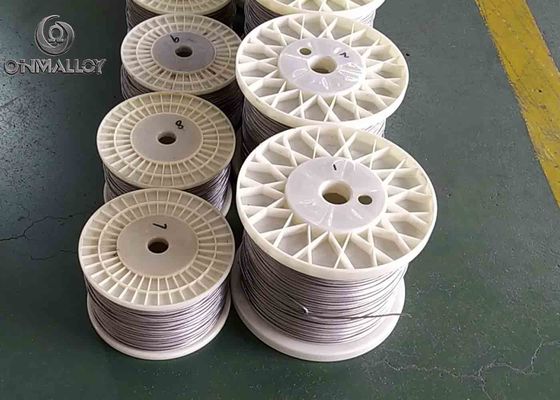

PWHT Hot Tail 37 Strands 0Cr20Ni80 Wire Rope Nichrome Alloy 1



Cable Diameter



Conductor Material



Number of Strands



King Wire Size

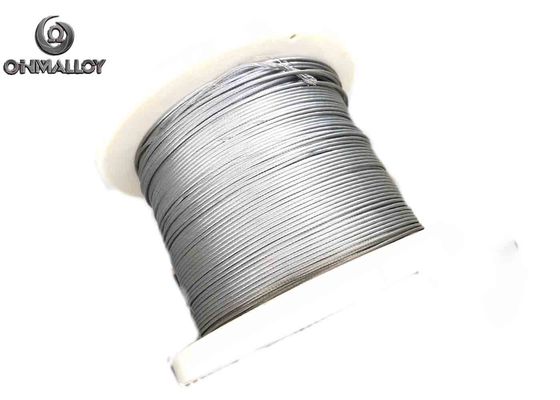

PWHT Hot Tail 37 Strands 0Cr20Ni80 Wire Rope Nichrome Alloy 2Resistance(Ohm/meter)



2.8mm

(±0.2mm)



0Cr20Ni80 (C846D07)



36*0.385mm+1*0.45mm (±0.015mm)

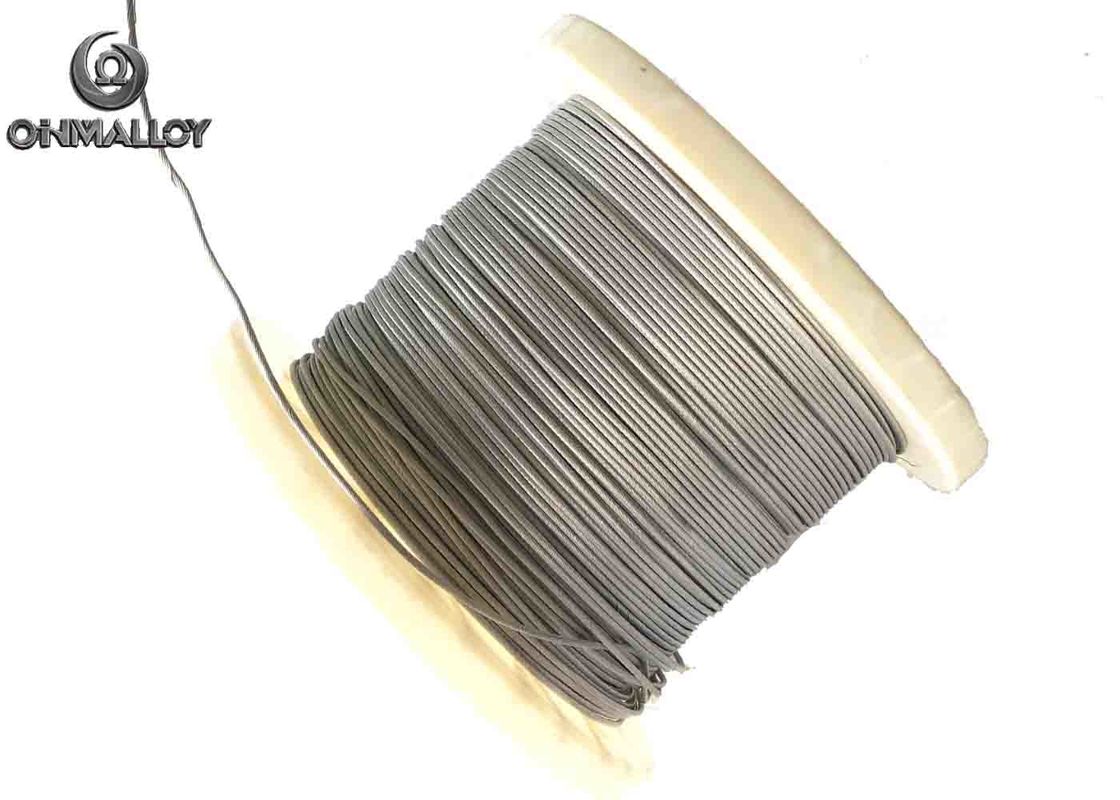

PWHT Hot Tail 37 Strands 0Cr20Ni80 Wire Rope Nichrome Alloy 30.45mm (±0.015mm)



0.279(+/-5%)



Qualified Qualified Qualified Qualified Qualified



Conductor Material Inspection: 0Cr20Ni80 Material Batch NO.: C846D07

C P S Mn Si Cr Ni Al Fe Other
Max
0.03 0.02 0.015 0.60 0.75~1.60 20.0~23.0 Bal. Max 0.50 Max 1.0 -



Wire Rope Type and Standard Size Reference:

Alloy Wire No. of Strands Nominal OD (mm) King Wire Size (mm) Resistance (Ω/m) Length (m/kg)
0Cr20Ni80 19*0.523 2.7 0.574 0.285 29
0Cr15Ni60 19*0.523 2.76 0.574 0.29 30
0Cr20Ni80 37*0.385 2.76 0.45 0.279 28
Pure Nickel 19*0.574 2.87 0.574 0.0198 21
Nickel 212 19*0.574 2.87 0.71 0.0234 22



 19 37 Strands 0Cr20Ni80 Wire Rope For PWHT Ceramic Heating Pad Wire Application

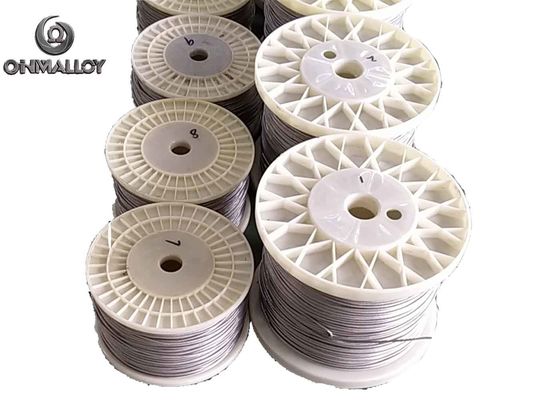

PWHT Hot Tail 37 Strands 0Cr20Ni80 Wire Rope Nichrome Alloy 4
