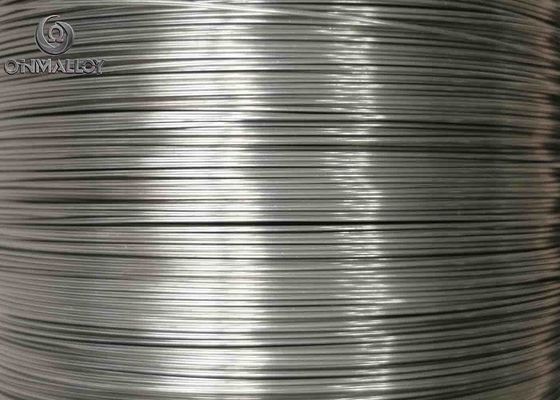

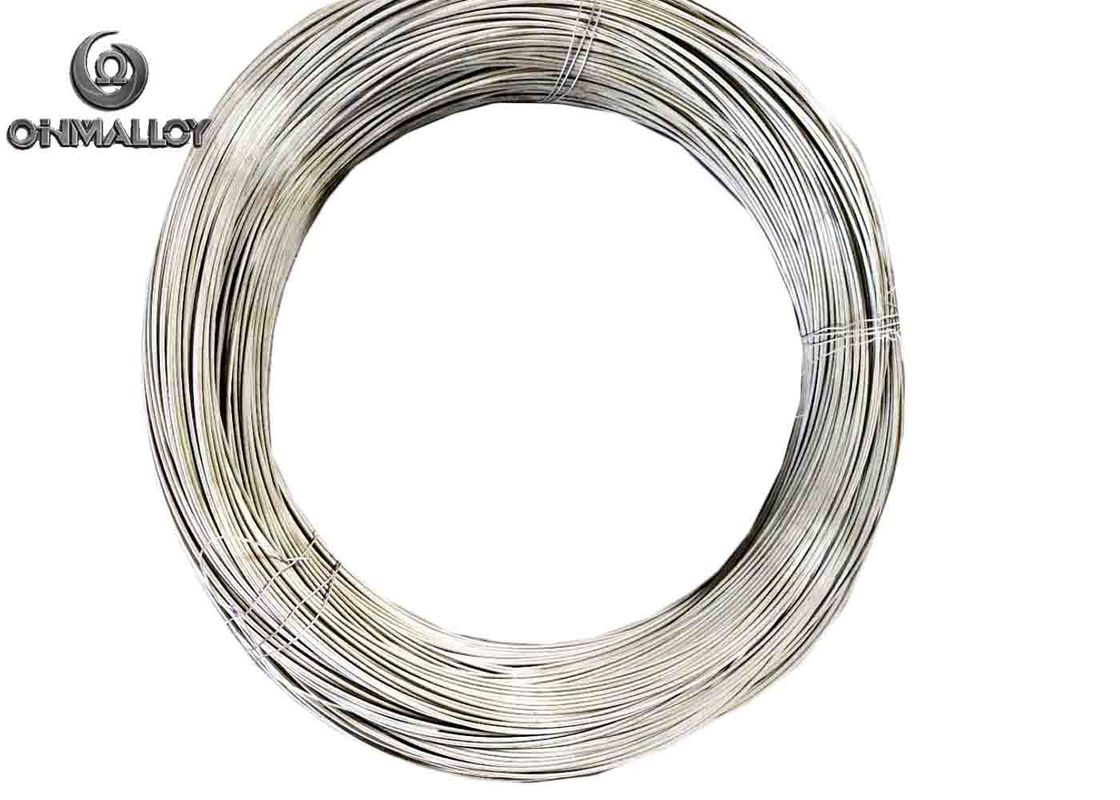

FeCrAl 0Cr27Al7Mo Wire for High Temperature Furnace Heating Element Wire

FeCrAl 0Cr27Al7Mo Wire for High Temperature Furnace Heating Element Wire
FeCrAl 0Cr27Al7Mo Wire for High Temperature Furnace Heating Element Wire FeCrAl 0Cr27Al7Mo Wire for High Temperature Furnace Heating Element Wire FeCrAl 0Cr27Al7Mo Wire for High Temperature Furnace Heating Element Wire

Large Image :  FeCrAl 0Cr27Al7Mo Wire for High Temperature Furnace Heating Element Wire Get Best Price

Product Details:
Place of Origin: Hangzhou
Brand Name: OHMALLOY/OEM
Certification: ISO9001:2018
Model Number: SP-Ohmalloy153
Payment & Shipping Terms:
Minimum Order Quantity: 50KG
Packaging Details: Spool+paper case + wooden case/plastic packing+papre case+ wooden box outside(or customized)
Delivery Time: 3-15 working days after payment confirmed
Payment Terms: L/C, T/T, , MoneyGram,Paypal
Supply Ability: 30000KG/Month
Detailed Product Description
Name: FeCrAl 0Cr27Al7Mo Wire For High Temperature Furnace Heating Element Wire Type: Similar To Kanthal A1
Max Working Temperature: 1350℃ Supply State: Soft/ Hard/ 1/2 Hard/ 1/4 Hard
Resistivity: 1.53 μ.Ω.m Package: Spool/Coil
High Light:

FeCrAl Furnace Heating Element Wire

,

0Cr27Al7Mo Heating Element Wire

,

Sintering Furnace Heating Element Wire

FeCrAl 0Cr27Al7Mo Wire for High Temperature Furnace Heating Element Wire



0Cr27Al7Mo is a iron-chromium-aluminium alloy (FeCrAl alloy) characterized by high resistance, low coefficient of electric resistance, higher operating temperature, good corrosion resistance under high temperature.It is suitable for use at temperatures up to 1400°C.

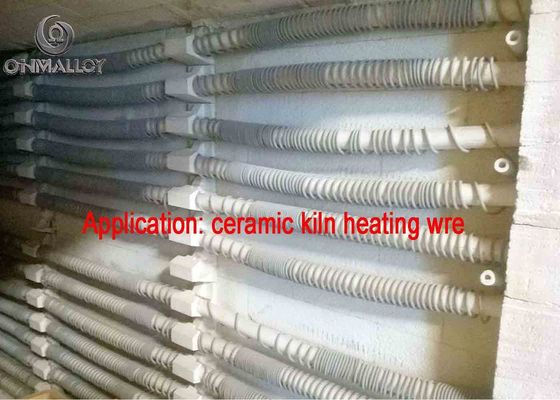

Typical applications for OhmAlloy153 are used in heating element of the single crystal furnace, sintering furnace, ceramic calcining furnace and heat treatment furnace and diffusion furnace when the temperature is more than 1200°C.

FeCrAl 0Cr27Al7Mo Wire for High Temperature Furnace Heating Element Wire 0

Normal composition%

C P S Mn Si Cr Ni Al Fe Mo
Max
0.05 0.025 0.025 0.20 Max 0.40 26.5~27.8 Max 0.60 5.0~7.0 Bal. 1.8-2.2

Typical Mechanical properties(1.0mm)

Yield strength Tensile Strength Elongation
Mpa Mpa %
460 700 20

Typical Physical properties

Density (g/cm3) 7.10
Electrical resistivity at 20℃(Ωmm2/m) 1.53
Conductivity coefficient at 20℃ (WmK) 13





Coefficient of thermal expansion
Temperature Coefficient of Thermal Expansion x10-6/℃
20 ℃- 1000℃ 16



Specific heat capacity
Temperature 20℃
J/gK 0.49



Melting point (℃) 1520
Max continuous operating temperature in air (℃) 1400
Magnetic properties non-magnetic



Temperature Factor of Electrical Resistivity

20℃ 100℃ 200℃ 300℃ 400℃ 500℃ 600℃ 700℃ 800℃ 900℃ 1000℃ 1100℃ 1200℃
1 0.997 0.996 0.994 0.991 0.990 0.990 0.990 0.990 0.990 0.990 0.990 0.990



Style of supply

Alloys Name Type Dimension
OhmAlloy153W Wire D=0.03mm~8mm
OhmAlloy153R Ribbon W=0.4~40 T=0.03~2.9mm
OhmAlloy153S Strip W=8~250mm T=0.1~3.0
OhmAlloy153F Foil W=6~120mm T=0.003~0.1
OhmAlloy153B Bar Dia=8~100mm L=50~1000
