Product Details:
Payment & Shipping Terms:
|
| Grade: | Pure Nickel | Surface: | Bright |
|---|---|---|---|
| Type: | Micro Wire | Ni: | 99.5% |
| Thickness: | 0.005mm~2mm | Density: | 8.89 |
| Melting Point: | 1440 | Color: | Sliver |
| High Light: | Pure Nickel Stranded Wire,0.025mm Nickel Stranded Wire,Anti Oxidation Nickel Stranded Wire |
||

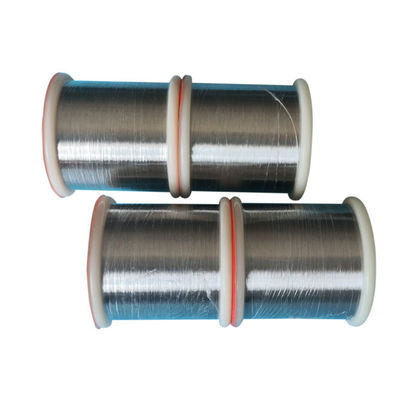

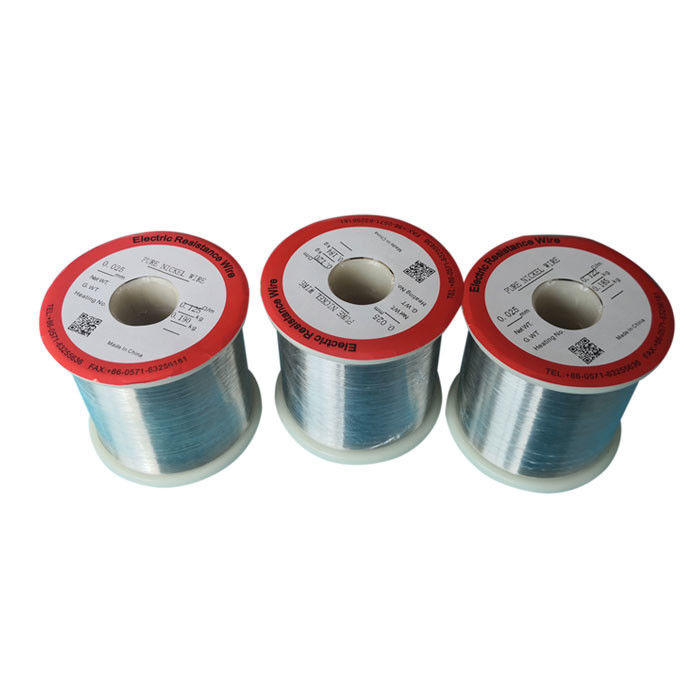

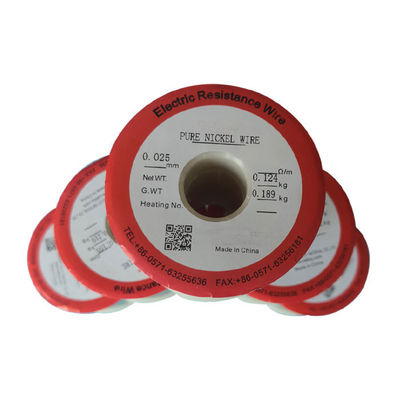

Super thin pure nickel wire 0.025mm for weaving
OHMALLOY200 are made by advanced vacuum melting process.and by forging,rolling,annealing and drawing. It is used in electric apparatus,lead for lamp and chemical machinery. Pure Nickel strip and foil, mainly used in batteries, electronic parts, some special lamp.
It has good mechanical strength, corrosion resistance and heat resistance.Widely used in electrical appliances, chemical machinery, processing equipment, computer rechargeable batteries, mobile phones, power tools, cameras, etc.
Chemical composition(%)
| Grade | C | Si | Mn | P | S | Ni+Co | Cu | Fe |
| Nickel 200 | <0.15 | <0.35 | <0.35 | <0.01 | >99.0 | <0.25 | <0.40 |
Physical properties
| Grade | Density (g/cm3) |
Melting Range (℃) |
Curie point (℃) |
Volume resistivity (μΩ.cm) | Thermal conductivity (W/m. ℃) |
| Nickel 200 | 8.89 | 1435-1446 | 360 | 8.5(20℃) | 79.3(20℃) |
Specification
| Strip | Thickness: 0.02mm to 3.0mm |
| Width: 1.0mm to 250mm | |
| Wire | Diameter: 0.025mm to 3.0mm |
| Sheet/Coil | Thickness: 0.002-0.0125mm |
| Width in coil: 6mm max | |
| In plate and straight lengths: 12mm max | |
Usage
It is used in electric apparatus,lead for lamp and chemical machinery. Pure Nickel strip and foil, mainly used in batteries, electronic parts, some special lamp.
Features
Stable performance;Anti-oxidation;Corrosion resistance;High temperature stability;Excellent coil-forming ability;Uniform and beautiful surface condition without spots.
Packing detail
1) Coil (plastic spool) + compressed ply-wooden case + pallet
2) Coil (plastic spool) + carton + pallet
Products and services
1). Pass: ISO9001 certification, and SO14001cetification;
2). Fine after-sale services;
3). Small order accepted;
4). Stable properties in high temperature;
5). Fast delivery;
Common Name: N6, N4, Pure Nickel, Nickel 200 , UNS N02200338 FAX: +86-21-66796339
FAQ
1. What's the minimum quantity customer can order?
If we have your size in stock, we can provide any quantity you want.
If we do not have, for spool wire, we can produce 1 spool, about 2-3kg. For coil wire, 25kg.
2. How can you pay for small sample amount?
We have account, wire transfer for sample amount also ok.
3. Customer do not have express account. How will us arrange the delivery for sample order?
Just need to provide your address information, we will check the express cost, you can arrange the express cost together with sample value.
4. What's our payment terms?
We can accept LC T/T payment terms, it also depending on delivery and total amount. Let's talk more in details after getting your detailed requirements.
5. Do you provide free samples?
If you want several meters and we have stock of your size, we can provide, customer need to bear the International express cost.
6. What's our working time?
We will give you reply through email/phone Online contact tool within 24 hours. No matter working day or holidays.
