Product Details:
Payment & Shipping Terms:
|

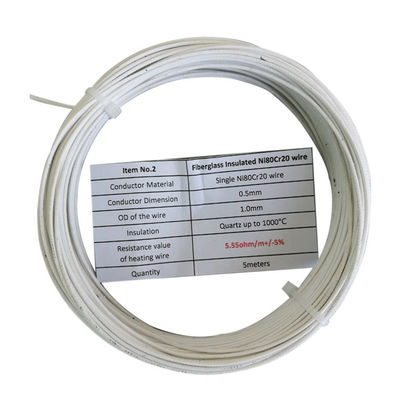

| Conductor Material: | Single Ni80Cr20 Wire | Conductor Dimension: | 0.5mm |
|---|---|---|---|
| OD Of The Wire: | 1.0mm | Insulation: | Quartz Up To 1000℃ |
| Resistance Value Of Heating Wire: | 5.55ohm/m+/-5% | MOQ: | 100meters |
| High Light: | Nichrome 80 Insulated Resistance Wire,Quartz Insulated Resistance Wire,OD 1.0mm Insulated Resistance Wire |
||

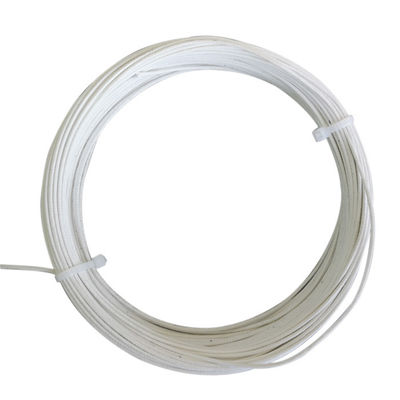

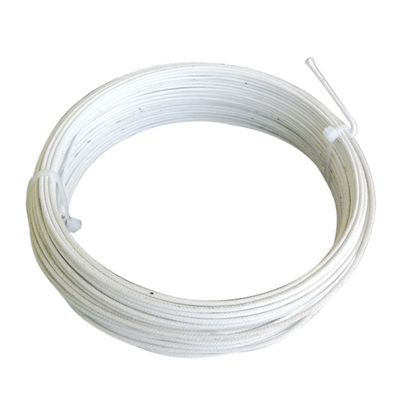

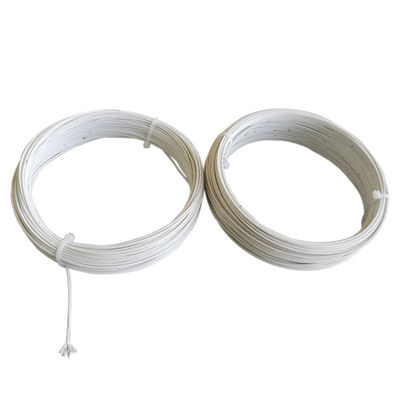

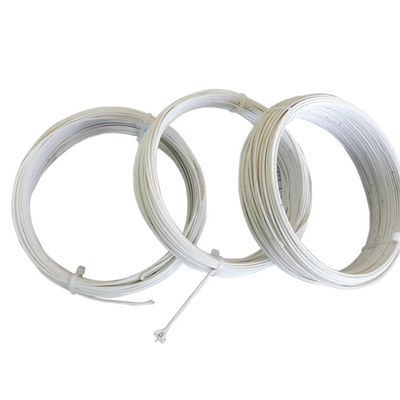

High Temperature Heating wire Quartz insulated Nichrome 80 wire with 5.55ohm/m
For fiberglass,we have the standing temperature 400℃,600℃,1000℃
Chemical Composition of NiCr80/20
| Material | Chemical composition (%) | ||||
| Ni | Fe | Cr | Si | Al | |
| NiCr80/20 | Bal | <0.8 | 20-22 | 0.7-1.5 | <0.5 |

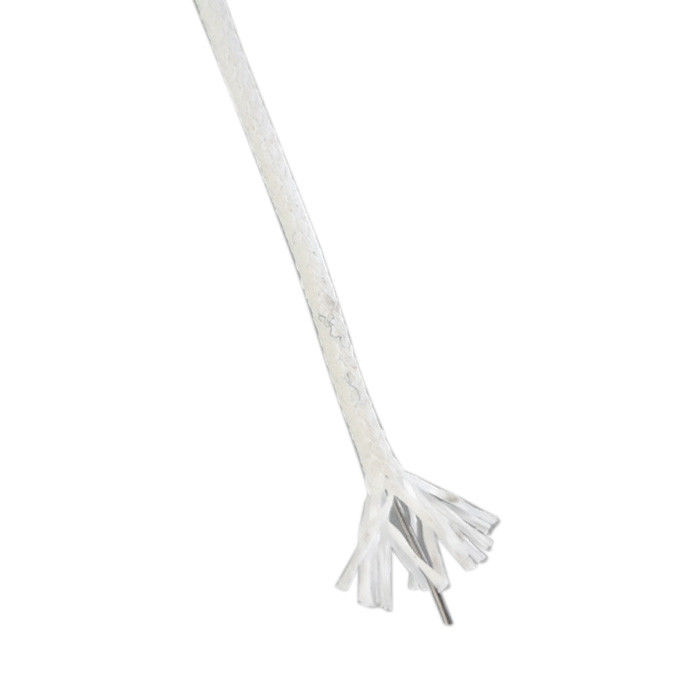

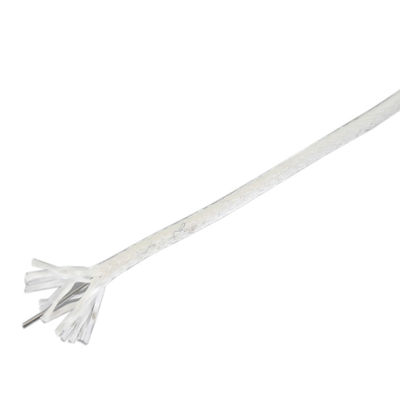

Insulation material: Quartz
| Long-term max standing temperature | 1000℃ |
| Shor-term max standing temperature | 1100℃ |
Size and resistance value
| Dia of NiCr80/20 | Resistance value (Ω/m) | Thickness of insulation | OD of cable |
| 0.2mm | 34.7 | 0.2mm | 0.6mm |
| 0.5mm | 5.55 | 0.25mm | 1.0mm |
| 0.8mm | 2.16 | 0.25mm | 1.3mm |
| 1.0mm | 1.38 | 0.3mm | 1.6mm |
| 1.2mm | 0.965 | 0.35mm | 1.9mm |
| 1.5mm | 0.617 | 0.45mm | 2.4mm |
Remarks: The size can be changed if special requirement.
The thickness of insulation also can be adjusted by special requirement.
FAQ
1. What's the minimum quantity customer can order?
If we have your size in stock, we can provide any quantity you want.
If we do not have, for spool wire, we can produce 1 spool, about 2-3kg. For coil wire, 25kg.
2. How can you pay for small sample amount?
We have account, wire transfer for sample amount also ok.
3. Customer do not have express account. How will us arrange the delivery for sample order?
Just need to provide your address information, we will check the express cost, you can arrange the express cost together with sample value.
4. What's our payment terms?
We can accept LC T/T payment terms, it also depending on delivery and total amount. Let's talk more in details after getting your detailed requirements.
5. Do you provide free samples?
If you want several meters and we have stock of your size, we can provide, customer need to bear the International express cost.
6. What's our working time?
We will give you reply through email/phone Online contact tool within 24 hours. No matter working day or holidays.
