ANSI Coiled Type K Thermocouple Cable With PVC Insulation

I'm Online Chat Now
Certification
China Ohmalloy Material Co.,Ltd certification
China Ohmalloy Material Co.,Ltd certification
I search for Nichrome plate long time, and successfully bought it from Ohmalloy material. OHMALLOY provide real good service in alloy service and can always help me in finding the correct resistance alloy.

—— Mike Harness

OHMALLOY can provie me only 1kg Kovar alloy wire 1.0mm with short time, that is really amazing. Thanks

—— Janey

Really professional in thermocouple wire and cable, what i want just can get from OHMALLOY

—— Chris

Enamelled Constantan 0.08mm, i never expect to get only 2kg of it. But OHMALLOY supply it to me with good quality. God Jesus! Such a reliable supplier from china

—— Aaron

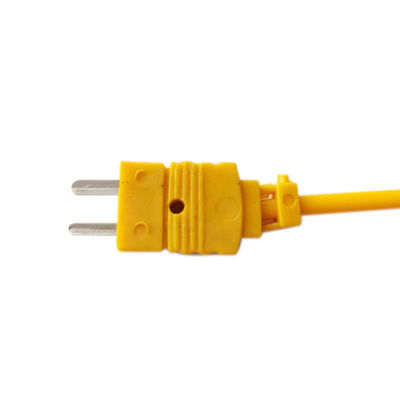

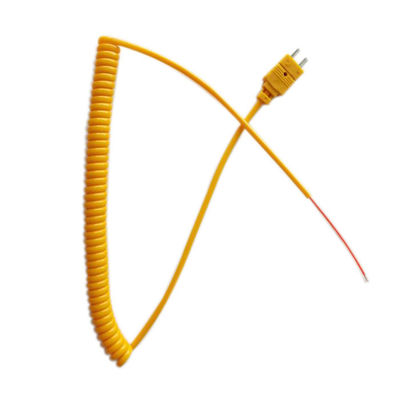

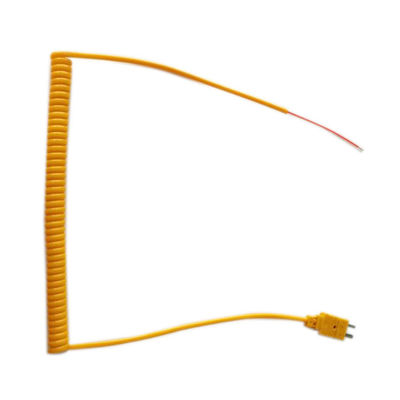

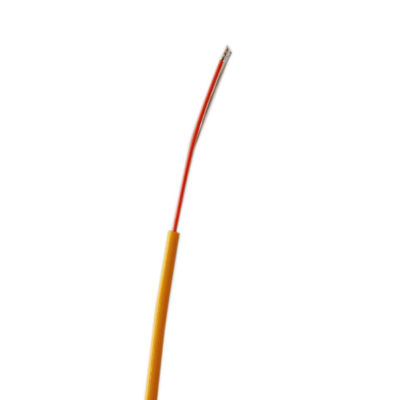

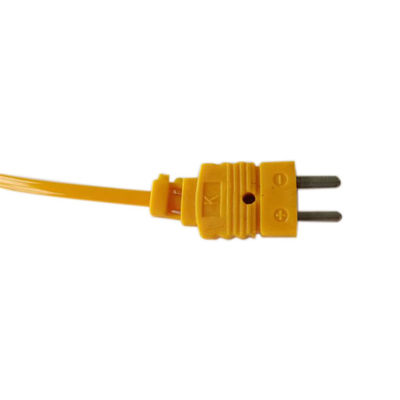

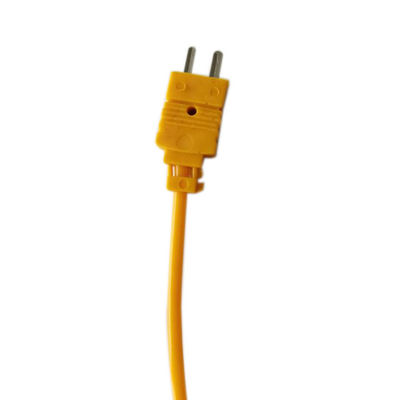

ANSI Coiled Type K Thermocouple Cable With PVC Insulation

ANSI Coiled Type K Thermocouple Cable With PVC Insulation
ANSI Coiled Type K Thermocouple Cable With PVC Insulation
video play

Large Image :  ANSI Coiled Type K Thermocouple Cable With PVC Insulation Get Best Price

Product Details:
Place of Origin: China(Shanghai)
Brand Name: OHMALLOY
Certification: ISO9001-2008
Model Number: TYPE K
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pieces
Packaging Details: wooden case
Delivery Time: 7-10 days
Payment Terms: L/C, T/T, Paypal,, D/P, D/A, MoneyGram
Supply Ability: 500000 meters per month
Detailed Product Description
Material: Chromel,Alumel Insulation: Fiberglass
Density (g/cm3): 8.5 Or 8.6 Color: ANSI MC 96.1
Shiled: No Shiled Usage: Thermocouple Cable
High Light:

Coiled Type K Thermocouple Cable

,

PVC Insulation Type K Thermocouple Cable

,

ANSI Type K Thermocouple Cable

Coiled Type K Thermocouple Cable With Miniature Connector Chromel Alumel Flat PVC Insulation Pin Fast Response


1. Chemical Composition



Material Chemical composition (%)
Ni Cr Si Mn Al
KP(Chromel) 90 10
KN(Alumel) 95   1-2 0.5-1.5 1-1.5



2. Physical properties and Mechnical properties



Material

Density

(g/cm3)

Melting point℃)

Tensile Strength

(Mpa)

Volume resistivity(μΩ.cm) Elongation rate (%)
KP(Chromel) 8.5 1427 >490 70.6(20℃) >10
KN(Alumel) 8.6 1399 >390 29.4(20℃) >15



3. EMF Value range at different temperature



Material EMF value Vs Pt(μV)
100℃ 200℃ 300℃ 400℃ 500℃ 600℃
KP(Chromel) 2816~2896 5938~6018 9298~9378 12729~12821 16156~16266 19532~19676
KN(Alumel) 1218~1262 2140~2180 2849~2893 3600~3644 4403~4463 5271~5331



EMF value Vs Pt(μV)
700℃ 800℃ 900℃ 1000℃ 1100℃
22845~22999 26064~26246 29223~29411 32313~32525 35336~35548
6167~6247 7080~7160 7959~8059 8807~8907 9617~9737



TYPE K (CHROMEL vs ALUMEL ) is used in oxidizing, inert or dry reducing atmospheres. Exposure to vacuum limited to short time periods. Must be protected from sulfurous and marginally oxidizing atmospheres. Reliable and accurate at high temperatures.



ANSI Coiled Type K Thermocouple Cable With PVC Insulation 0

FAQ

1. What's the minimum quantity customer can order?

If we have your size in stock, we can provide any quantity you want.

If we do not have, for spool wire, we can produce 1 spool, about 2-3kg. For coil wire, 25kg.



2. How can you pay for small sample amount?

We have account, wire transfer for sample amount also ok.



3. Customer do not have express account. How will us arrange the delivery for sample order?

Just need to provide your address information, we will check the express cost, you can arrange the express cost together with sample value.



4. What's our payment terms?

We can accept LC T/T payment terms, it also depending on delivery and total amount. Let's talk more in details after getting your detailed requirements.



5. Do you provide free samples?

If you want several meters and we have stock of your size, we can provide, customer need to bear the International express cost.



6. What's our working time?

We will give you reply through email/phone Online contact tool within 24 hours. No matter working day or holidays.
