Product Details:
Payment & Shipping Terms:
|
| Material: | Soft Magnetic Alloy | Shape: | Sheet |
|---|---|---|---|

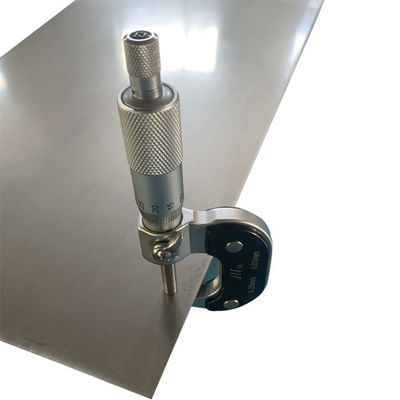

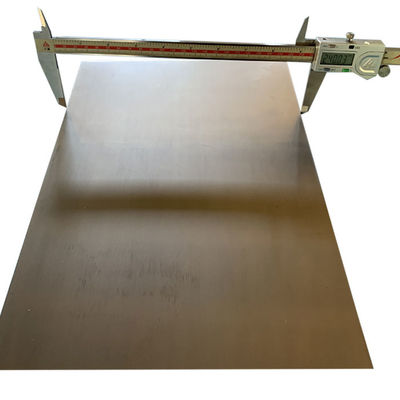

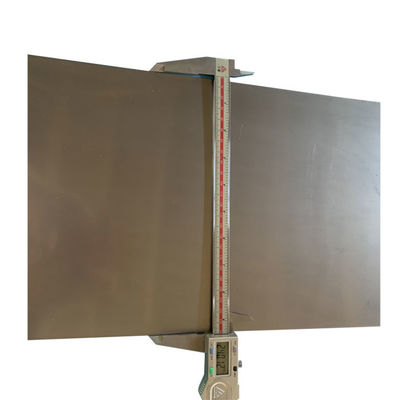

| Thickness: | 0.7mm | Width: | 240mm |

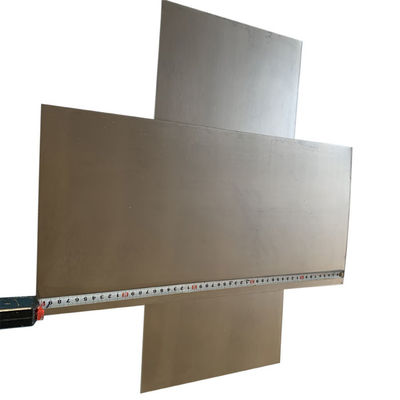

| Length: | 500mm | Type: | SP-1J50 |
| High Light: | Nickel Iron Soft Magnetic Alloys,0.7mm Thickness Soft Magnetic Alloys,500mm Length Soft Magnetic Alloys |
||

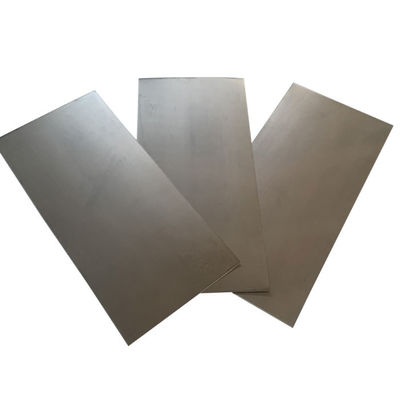

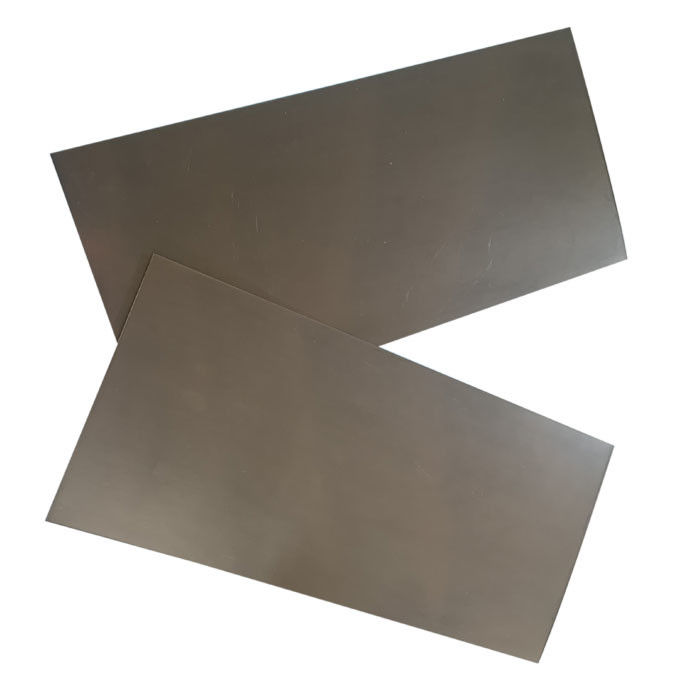

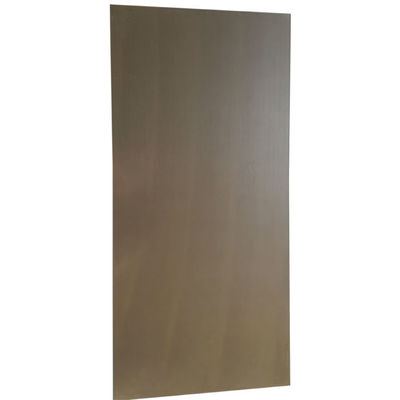

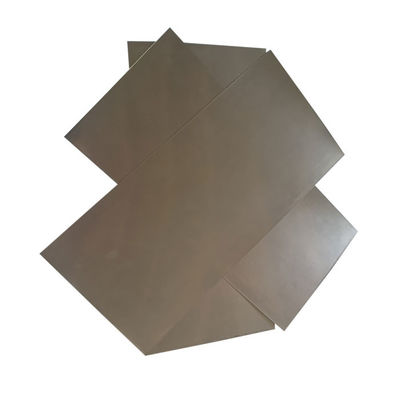

Nickel-iron magnetic alloy 1J50/Ni50 sheet 0.7x240mmx500mm
1J50 50Ni-Fe(Square Orthonol / Permenorm 5000 Z) has rectangular hysteresis loop and high saturation magnetic induction, is mainly used to worked at a moderate magnetic field magnetic amplifier, choke ring, rectifier circle, as well as the computer device components.
1J50 50Ni-Fe(Square Orthonol / Permenorm 5000 Z) is suitable for primary and secondary power transformers, micro-motor rotor, relays, electromagnetic clutches, torque motor street iron, barrier shielded magnetic shield, electronic stepper motor wire frame, electronic clock stator, buzzer vibrator and telephone components.
1J50 is a kind of nickel-iron soft magnetic alloy which has high initial permeability and maximum permeability with low coercive force and high saturation magnetic induction strength. It is usually used in saturable reactors, high gain magnetic amplifiers, biostable switching devices, and power inverter-converter applications.
1J50 50Ni-Fe (Square Orthonol/Permenorm 5000 Z) Chemical Composition %
|
Name |
Ni |
Fe |
Mn |
Si |
C |
|
1J50 50Ni-Fe (Permenorm 5000 Z) |
49-51 |
Balance |
0.30-0.60 |
0.15-0.30 |
≤0.03 |
Magnetic Properties (DC AC 50Hz)
|
Material |
Saturation Induction (at 80A/m) |
Coercive Force |
Initial Permeability (at 0.4A/m) |
Maximum Permeability |
|
1J50 50Ni-Fe (Permenorm 5000 Z) |
1.5T (15 000Gs) |
≥9.60A/m (0.12Oe) |
≥3.8mH/m (3 040Gs/Oe) |
≥62.5mH/m (50 000Gs/Oe) |
Physical Properties
|
Density |
8.25 g/cm³ |
|
Electrical resistivity |
0.47 Ohm mm²/ m |
|
Melting point |
1430°C |
|
Curie temperature |
485°C |
|
Coefficent of Thermal Expansion(20-200°C) |
8.4·10-6/K |
FAQ
1. What's the minimum quantity customer can order?
If we have your size in stock, we can provide any quantity you want.
If we do not have, for spool wire, we can produce 1 spool, about 2-3kg. For coil wire, 25kg.
2. How can you pay for small sample amount?
We have account, wire transfer for sample amount also ok.
3. Customer do not have express account. How will us arrange the delivery for sample order?
Just need to provide your address information, we will check the express cost, you can arrange the express cost together with sample value.
4. What's our payment terms?
We can accept LC T/T payment terms, it also depending on delivery and total amount. Let's talk more in details after getting your detailed requirements.
5. Do you provide free samples?
If you want several meters and we have stock of your size, we can provide, customer need to bear the International express cost.
6. What's our working time?
We will give you reply through email/phone Online contact tool within 24 hours. No matter working day or holidays.
