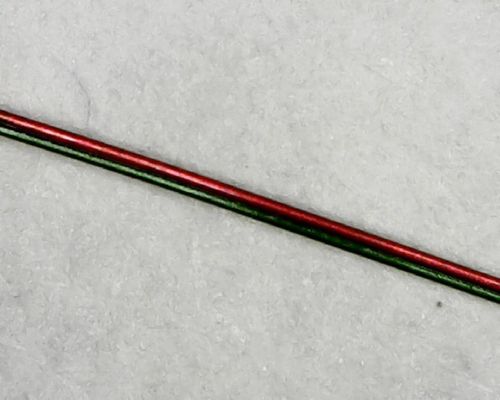

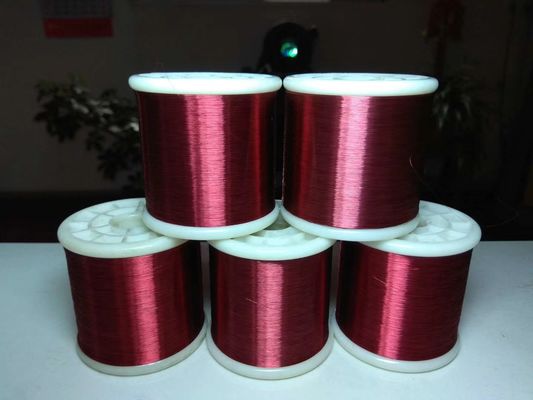

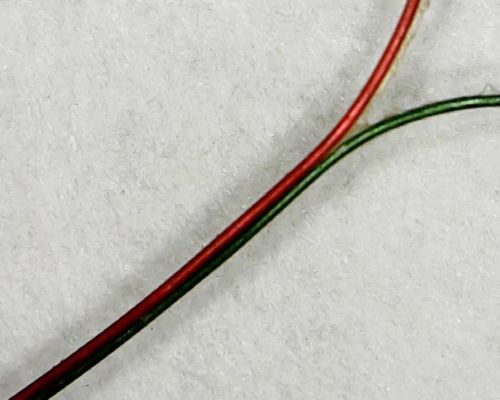

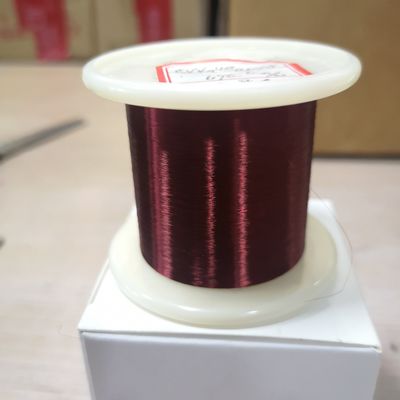

44AWG T Type Medical Constantan Thermocouple Wire Polyesterimide Coated

44AWG T Type Medical Constantan Thermocouple Wire Polyesterimide Coated
44AWG T Type Medical Constantan Thermocouple Wire Polyesterimide Coated 44AWG T Type Medical Constantan Thermocouple Wire Polyesterimide Coated 44AWG T Type Medical Constantan Thermocouple Wire Polyesterimide Coated 44AWG T Type Medical Constantan Thermocouple Wire Polyesterimide Coated

Large Image :  44AWG T Type Medical Constantan Thermocouple Wire Polyesterimide Coated Get Best Price

Product Details:
Place of Origin: Shanghai
Brand Name: OHMALLOY/OEM
Certification: ISO9001:2018
Model Number: SP-EN-PI-T-44AWG
Payment & Shipping Terms:
Minimum Order Quantity: 1kg
Packaging Details: Spool+paper case + wooden case
Delivery Time: 10-25 working days after payment confirmed
Payment Terms: L/C, T/T, , MoneyGram,paypal
Supply Ability: 30KG per Month
Detailed Product Description
Name: Polyesterimide Coated 44AWG T Type Medical Thermocouple Constantan Wire Conductor: +Copper -Constantan
Varish Type: Polyesterimide(180℃) Color: +Blue -Red
Conductor Size: 0.02-0.1mm(customized) Application: Medical Thermocouple
High Light:

Medical Constantan Thermocouple Wire

,

Polyesterimide Coated Thermocouple Wire

,

44AWG Thermocouple Wire



Polyesterimide Coated 44AWG K T Type Thermocouple Enameled Chromel Alumel Constantan Wire For Medical Use



Type T (Copper vs Constantan) is used or service in oxidizing, inert or reducing atmospheres or in vacuum. It is highly resistant to corrosion from atmospheric moisture and condensation and exhibits high stability at low temperatures. It is the only type with limits of error guaranteed for cryogenic temperatures.

TYPE K (CHROMEL vs ALUMEL ) is used in oxidizing, inert or dry reducing atmospheres. Exposure to vacuum limited to short time periods. Must be protected from sulfurous and marginally oxidizing atmospheres. Reliable and accurate at high temperatures.



Thermocouple Type Alloy Code Nominal Chemical Composition (%) Recommend Measuring Temperature
Cu Ni Cr Si Al Mn
Type K KP(Chromel) / 90 10 / / / 0-1200℃
KN(Alumel) / 97 / 1-2 1-1.5 0.5-1.5
Type T TP(Copper) 100 / / / / / -200-400℃
TN(Constantan) 55 45 / / / /





Type of insulation

Insulation-enameled Name

Thermal Level℃

(working time 2000h)

Code Name GB Code ANSI. TYPE
Polyurethane enameled wire 130 UEW QA MW75C
Polyester enameled wire 155 PEW QZ MW5C
Polyester-imide enameled wire 180 EIW QZY MW30C
Polyester-imide and polyamide-imide double coated enameled wire 200

EIWH

(DFWF)

QZY/XY MW35C
Polyamide-imide enameled wire 220 AIW QXY MW81C



Color of enameled insulation:

Red,Green,Yellow,Black,Blue,Brown,Nature etc.

44AWG T Type Medical Constantan Thermocouple Wire Polyesterimide Coated 0

Style of Supply

Alloys Name Type Dimension
Enameled-W Wire D=0.018mm~3mm
Enameled-R Ribbon W=0.4~24 T=0.01~0.2mm




Dimension of insulation

D

mm

Min thickness of insulation Max OD of Enameled
0.02 0.005 0.009 0.09 0.036
0.022 0.005 0.019 0.032 0.038
0.025 0.006 0.010 0.036 0.042
0.028 0.006 0.010 0.039 0.045
0.030 0.006 0.011 0.042 0.048
0.032 0.006 0.011 0.044 0.050
0.036 0.007 0.012 0.049 0.055
0.040 0.007 0.012 0.053 0.060
0.045 0.008 0.013 0.059 0.066
0.050 0.008 0.014 0.064 0.072
0.056 0.009 0.015 0.071 0.079
0.060 0.009 0.016 0.076 0.084
0.063 0.009 0.016 0.080 0.088
0.071 0.010 0.017 0.089 0.097
0.080 0.011 0.018 0.099 0.108
0.090 0.012 0.019 0.111 0.120
0.100 0.012 0.021 0.122 0.132
0.112 0.012 0.021 0.135 0.146
0.125 0.014 0.023 0.150 0.161
0.140 0.015 0.024 0.166 0.179
0.150 0.016 0.025 0.177 0.191
0.160 0.017 0.028 0.188 0.202
0.180 0.018 0.028 0.210 0.225
0.200 0.019 0.030 0.231 0.248
0.224 0.021 0.032 0.258 0.275
0.250 0.022 0.034 0.285 0.304
