Bright Annealed 1J50 Nickel Iron Magnetic Alloy For Power Transformers

Bright Annealed 1J50 Nickel Iron Magnetic Alloy For Power Transformers
Bright Annealed 1J50 Nickel Iron Magnetic Alloy For Power Transformers
video play

Large Image :  Bright Annealed 1J50 Nickel Iron Magnetic Alloy For Power Transformers Get Best Price

Product Details:
Place of Origin: China(Shanghai)
Brand Name: OHMALLOY
Certification: ISO, SGS
Model Number: 1J50
Payment & Shipping Terms:
Minimum Order Quantity: 10kg
Price: negotiable
Packaging Details: 10kg/coil
Delivery Time: 7 days
Payment Terms: L/C, T/T,
Supply Ability: 50000kg per month
Detailed Product Description
Chemical: 50% Nickel Grade: 1J50
Size: 92x21x500mm Status: Bright, Annealed
High Light:

1J50 Nickel Iron Magnetic Alloy

,

Bright Annealed Magnetic Alloy

,

Power Transformers Magnetic Alloy

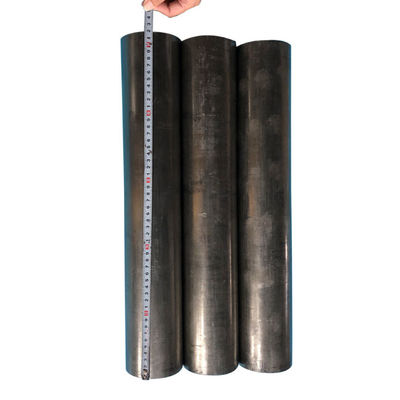

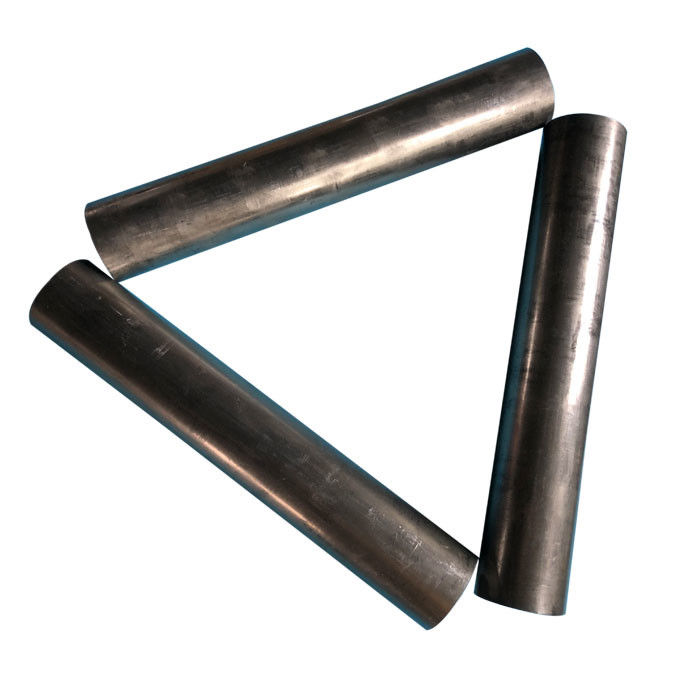

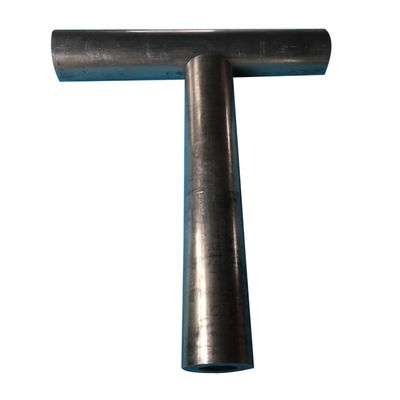

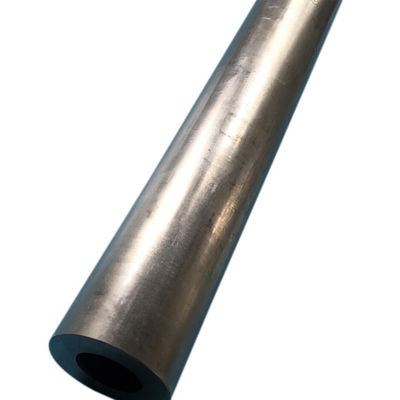

Nickel-iron magnetic alloy 1J50/Ni50 pipe 92x21x500mm



Product brief introduction


1J50 is a kind of nickel-iron soft magnetic alloy which has high initial permeability and maximum permeability with low coercive force and high saturation magnetic induction strength. It is usually used in saturable reactors, high gain magnetic amplifiers, biostable switching devices, and power inverter-converter applications.

1J50 50Ni-Fe(Square Orthonol/Permenorm 5000 Z) Chemical Composition:(%)



Name Ni Fe Mn Si C

1J50 50Ni-Fe

(Permenorm 5000 Z)

49-51 Balance 0.30-0.60 0.15-0.30 ≤0.03


Magnetic Properties (DC AC 50Hz)


Material

Saturation Induction

(at 80A/m)

Coercive Force

Initial Permeability

(at 0.4A/m)

Maximum Permeability

1J50 50Ni-Fe

(Permenorm 5000 Z)

1.5T

(15 000Gs)

≥9.60A/m (0.12Oe)

≥3.8mH/m

(3 040Gs/Oe)

≥62.5mH/m

(50 000Gs/Oe)


Physical Properties


Density 8.25 g/cm³
Electrical resistivity 0.47 Ohm mm²/ m
Melting point 1430°C
Curie temperature 485°C
Coefficent of Thermal Expansion(20-200°C) 8.4·10-6/K


1J50 50Ni-Fe(Square Orthonol / Permenorm 5000 Z) has rectangular hysteresis loop and high saturation magnetic induction, is mainly used to worked at a moderate magnetic field magnetic amplifier, choke ring, rectifier circle, as well as the computer device components.



1J50 50Ni-Fe(Square Orthonol / Permenorm 5000 Z) is suitable for primary and secondary power transformers, micro-motor rotor, relays, electromagnetic clutches, torque motor street iron, barrier shielded magnetic shield, electronic stepper motor wire frame, electronic clock stator, buzzer vibrator and telephone components.

Bright Annealed 1J50 Nickel Iron Magnetic Alloy For Power Transformers 0Bright Annealed 1J50 Nickel Iron Magnetic Alloy For Power Transformers 1Bright Annealed 1J50 Nickel Iron Magnetic Alloy For Power Transformers 2
