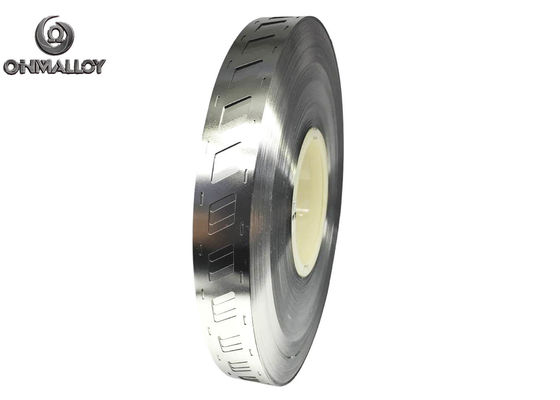

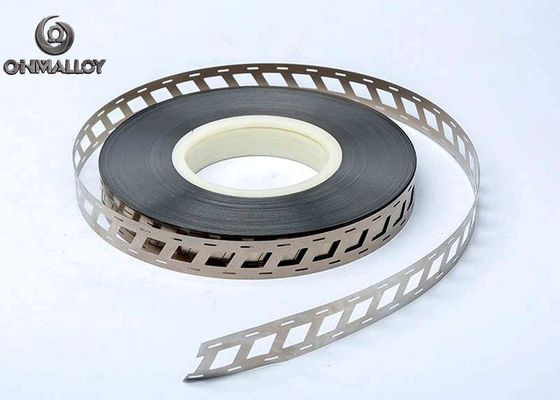

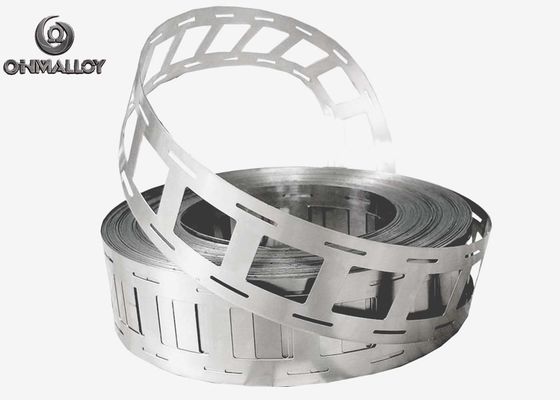

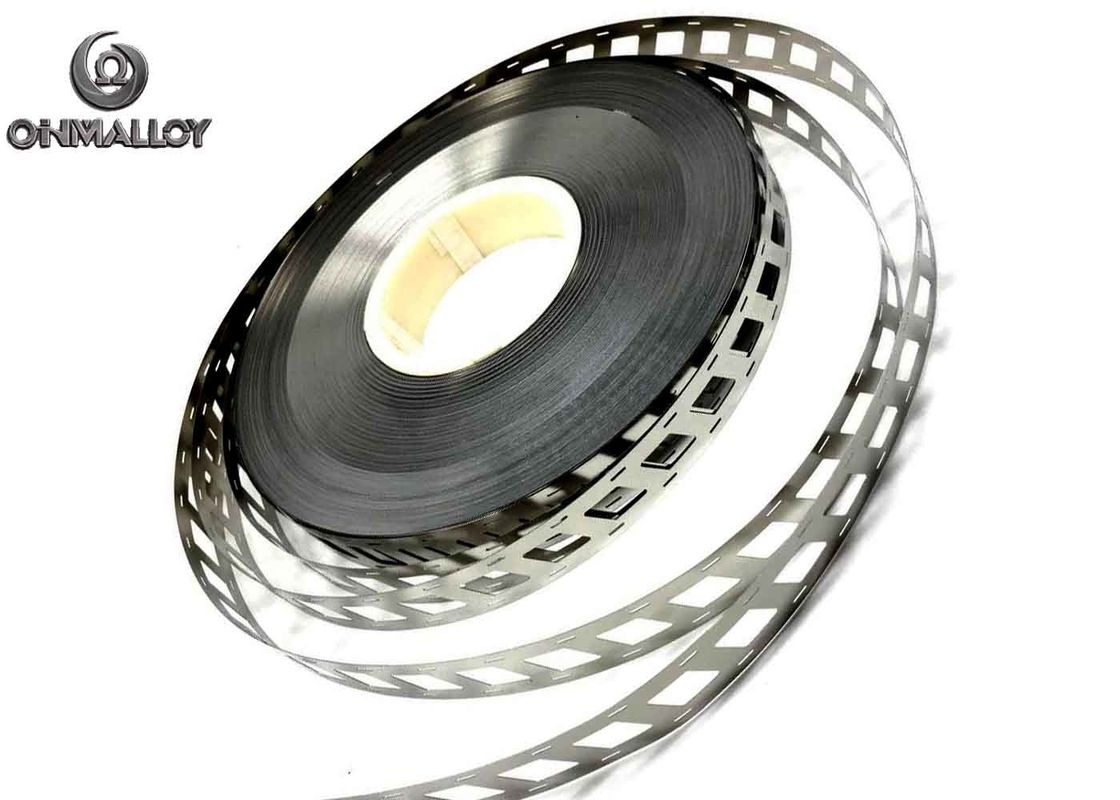

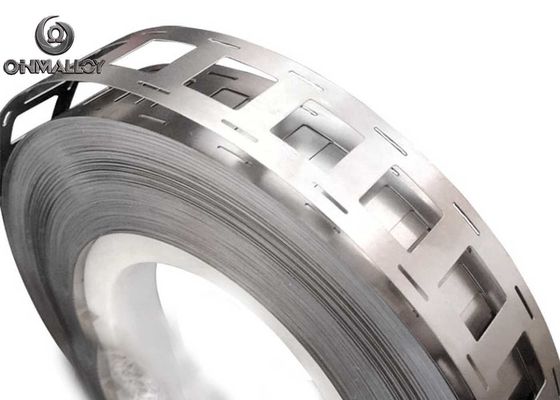

32650 Battery Pure Nickel Strip Anti Corrosion 0.2mm Thickness

32650 Battery Pure Nickel Strip Anti Corrosion 0.2mm Thickness
32650 Battery Pure Nickel Strip Anti Corrosion 0.2mm Thickness 32650 Battery Pure Nickel Strip Anti Corrosion 0.2mm Thickness 32650 Battery Pure Nickel Strip Anti Corrosion 0.2mm Thickness 32650 Battery Pure Nickel Strip Anti Corrosion 0.2mm Thickness 32650 Battery Pure Nickel Strip Anti Corrosion 0.2mm Thickness

Large Image :  32650 Battery Pure Nickel Strip Anti Corrosion 0.2mm Thickness Get Best Price

Product Details:
Place of Origin: China
Brand Name: OHMALLOY/OEM
Certification: ISO
Model Number: SP-32650-2P
Payment & Shipping Terms:
Minimum Order Quantity: 20KG
Packaging Details: Coil+Waterproof Paper+Plywood Case
Delivery Time: 5-25 Days after Payment Confirmed
Payment Terms: L/C, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 3 Tons per Month
Detailed Product Description
Name: 32650 2P Battery Pure Nickel Strip Ni 99.9% Anti Corrosion Assembly Connection Material Purity: Nickel 99.9% Mini
Applicable Type: 32650 Battery Hole Size: Customized According To Customer Requirement
Feature: Anti Corrosion Package: Coil Style
High Light:

32650 Battery Pure Nickel Strip

,

Anti Corrosion Pure Nickel Strip

,

0.2mm Thickness Pure Nickel Strip

32650 2P Battery Pure Nickel Strip Ni 99.9% Anti Corrosion Assembly Connection

Chemical Content for N6:

Ni+Co Cu Fe Mn C Si S
≥99.9 ≤0.06 ≤0.1 ≤0.05 ≤0.1 ≤0.1 ≤0.005



Physical properties

Melting Point 1435-1446℃
Density(g/cm3) 8.89g/cm3
Thermal conductivity (W/m. ℃) 79.3(20℃)
Volume resistivity (μΩ.cm) 8.5(20℃)



Model Thickness(mm) Width(mm) Distance of two welding centers
1P 0.15/0.2mm 14.7

32.5mm (applicable for battery pack without spacer)

34.5mm (applicable for battery pack with spacer)

2P 47.5
3P 82
4P 116.5
5P 151



32650 Battery Pure Nickel Strip Anti Corrosion 0.2mm Thickness 0

32650 Battery Pure Nickel Strip Anti Corrosion 0.2mm Thickness 1



Except pure nickel strip, we also can supply the nickel plated steel strip, this kind of strip can be used for battery with low power and low current. The main advantage of this strip is the price, it is lower a lot than pure nickel strip.



Our Nickel plated steel strips normal thickness is as follows:
Thickness: 0.08mm, 0.09mm, 0.10mm, 0.12mm, 0.15mm, 0.17mm, 0.20mm, 0.25mm and others.
Width: 3mm to 20mm



How to distinguish the pure nickel strip with nickel plated strip?

Many clients want to buy the pure nickel strip in low price, but sometimes they can be cheated by supplier who use the nickel plated steel strip to instead of pure nickel strip.

So how to check the quality for each strip become very important. It is impossible for us to check the strip by eye or measurement. The simplest way to distinguish is as follows:

Step 1: Cut the strip into pieces

Step 2: Put the piece into 20% hydrochloric acid and wait

Step 3: After few minutes, if the piece have visible reaction, the material should be nickel plated steel strip.



Application of nickel plated steel strip: battery cell connector, assembled battery, MP3, electrical bicycle, digital camera, laptop, power battery, electric vacuum, special bulb.....

32650 Battery Pure Nickel Strip Anti Corrosion 0.2mm Thickness 232650 Battery Pure Nickel Strip Anti Corrosion 0.2mm Thickness 3
