Bright Surface FeNi42 Plate Invar Alloy With Permanent Expansion

Bright Surface FeNi42 Plate Invar Alloy With Permanent Expansion
Bright Surface FeNi42 Plate Invar Alloy With Permanent Expansion
video play

Large Image :  Bright Surface FeNi42 Plate Invar Alloy With Permanent Expansion Get Best Price

Product Details:
Place of Origin: China(Shanghai)
Brand Name: OHMALLOY
Certification: ISO,SGS
Model Number: 4J42
Payment & Shipping Terms:
Minimum Order Quantity: 10kg
Price: negotiable
Packaging Details: in coil
Supply Ability: 5000kg/month
Detailed Product Description
Material: Invar Alloy Surface: Bright
Color: Oxidization
High Light:

FeNi42 Plate Invar Alloy

,

Bright Surface Invar Alloy

,

Permanent Expansion Invar Alloy

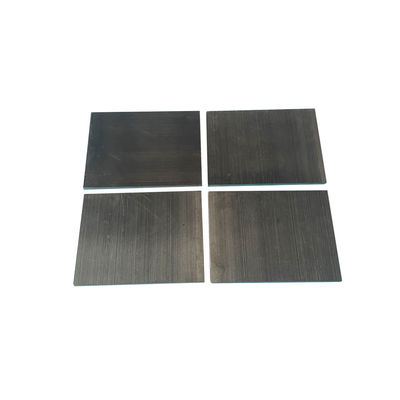

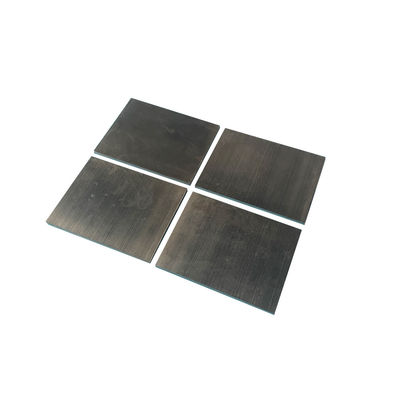

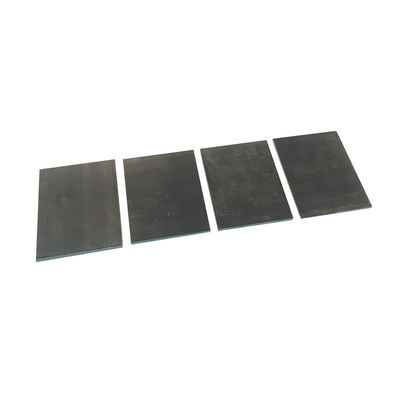

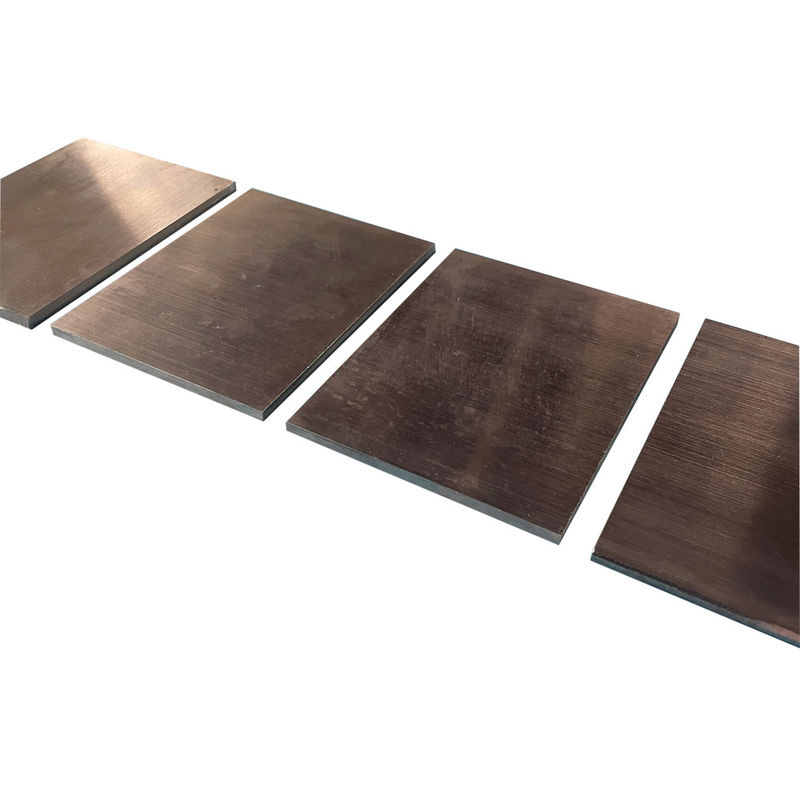

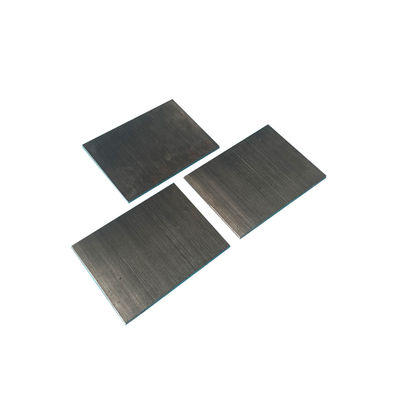

4.5*112*85mm FeNi42 alloy plate with Permanent Expansion in bright surface
Ohmalloy Material Co.,Ltd is a high-tech enterprise which specialized in making all kinds of alloy such as high resistance alloy, low-resistance copper nickel alloy, precision alloy, FeCrAl alloy and thermocouple Alloy.
Ohmalloy Material Co.,Ltd have a full production line from melting, surface cleaning, rolling and slitting, full set of testing machine and can meet all kinds of technical requirement from customer. Our product is widely used in heating equipment, big steel mill, mineral, electrical equipment, food machinery, auto industry, aerospace industry. Our product not only is popular in domestic market, but also been exported to all over the world.
Our company aims to be the best-quality alloy producer in the world. We insist on developing the more advanced alloy strip technology, to serve all the customer, improve people’s living level, make a more green earth in the future
Bright Surface FeNi42 Plate Invar Alloy With Permanent Expansion 0


OhmAlloy-4J42 (Expansion alloy)
(Common Name: 42H Glass Sealing 42, Nilo42, N42, FeNi42)
4J42 alloy is mainly composed of iron, nickel elements. It is characterized with a fixed coefficient of expansion. Increase the thermal expansion coefficient and the Curie point with increase of nickel content.
4J42 alloy is widely used the structure of the sealing material in the electric vacuum industry.


Normal composition%

Ni 41.5~42.5 Fe Bal. Co - Si ≤0.3
Mo - Cu - Cr - Mn ≤0.8
C ≤0.05 P ≤0.02 S ≤0.02 Al ≤0.1



Typical Physical properties

Density (g/cm3) 8.12
Electrical resistivity at 20℃(Ωmm2/m) 0.61
Thermal conductivity, λ/ W/(m*℃) 14.6
Curie point Tc/ ℃ 360
Elastic Modulus, E/ Gpa 147


Coefficient of expansion

θ/℃ α1/10-6-1 θ/℃ α1/10-6-1
20~100 5.6 20~400 5.9
20~200 4.9 20~450 6.9
20~300 4.8 20~500 7.8
20~350 4.95 20~600 9.2



Typical Mechanical properties

Tensile Strength Elongation
Mpa %
490 35



The heat treatment process
Annealing Heated to 900 ±20℃ in a hydrogen atmosphere
Holding time, h 1 hour
cooling With speed not more than 5 ℃ / min. cooling to below 200 ℃


Style of supply

Alloys Name Type Dimension
OhmAlloy-4J42 Wire D= 0.1~8mm
OhmAlloy-4J42 Strip W= 5~250mm T= 0.1mm
OhmAlloy-4J42 Foil W= 10~100mm T= 0.01~0.1
OhmAlloy-4J42 Bar Dia= 8~100mm L= 50~1000



Bright Surface FeNi42 Plate Invar Alloy With Permanent Expansion 1
