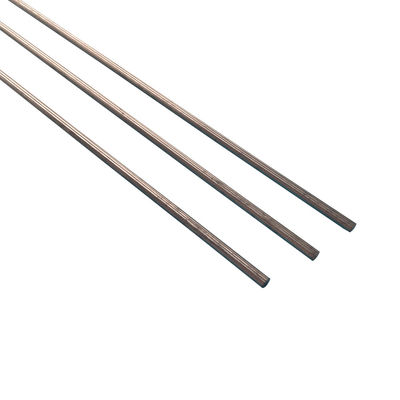

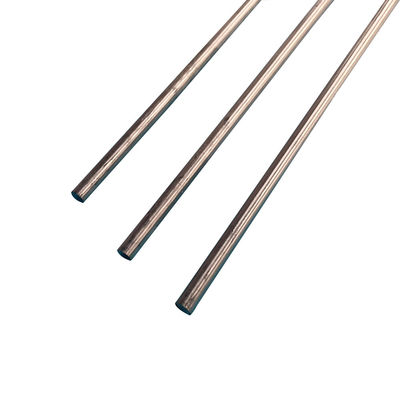

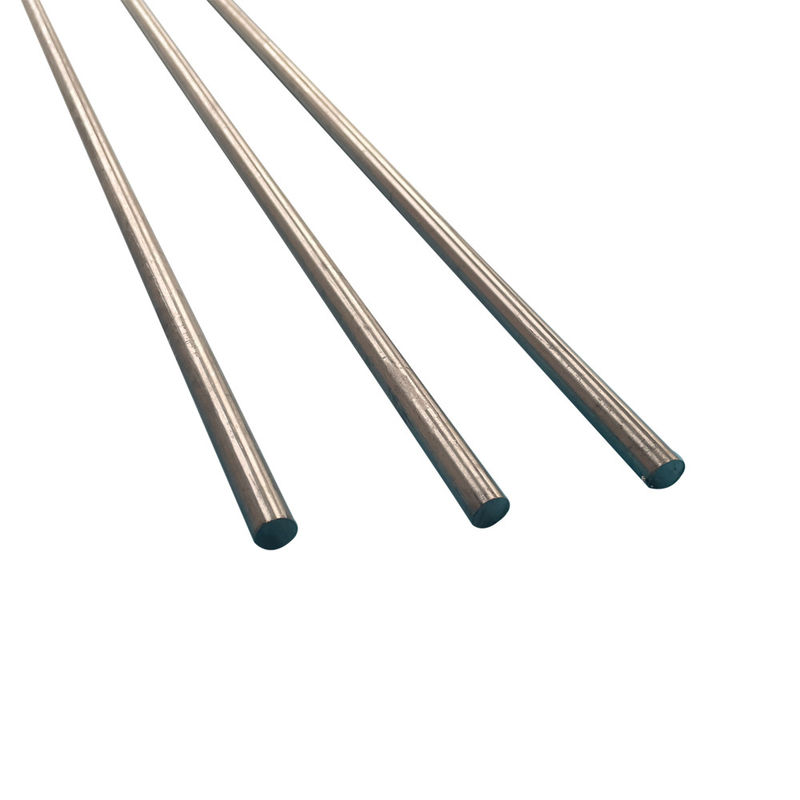

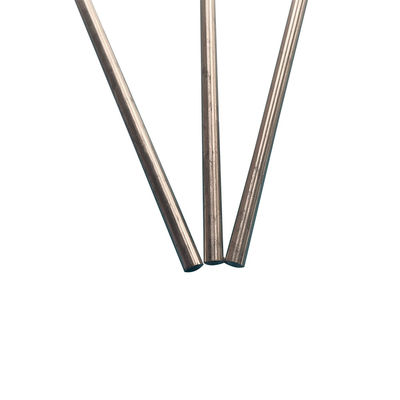

Diameter 13mm Incoloy 825 Bar ASTM Aerospace Nichrome Rod

I'm Online Chat Now
Certification
China Ohmalloy Material Co.,Ltd certification
China Ohmalloy Material Co.,Ltd certification
I search for Nichrome plate long time, and successfully bought it from Ohmalloy material. OHMALLOY provide real good service in alloy service and can always help me in finding the correct resistance alloy.

—— Mike Harness

OHMALLOY can provie me only 1kg Kovar alloy wire 1.0mm with short time, that is really amazing. Thanks

—— Janey

Really professional in thermocouple wire and cable, what i want just can get from OHMALLOY

—— Chris

Enamelled Constantan 0.08mm, i never expect to get only 2kg of it. But OHMALLOY supply it to me with good quality. God Jesus! Such a reliable supplier from china

—— Aaron

Diameter 13mm Incoloy 825 Bar ASTM Aerospace Nichrome Rod

Diameter 13mm Incoloy 825 Bar ASTM Aerospace Nichrome Rod
Diameter 13mm Incoloy 825 Bar ASTM Aerospace Nichrome Rod
video play

Large Image :  Diameter 13mm Incoloy 825 Bar ASTM Aerospace Nichrome Rod Get Best Price

Product Details:
Place of Origin: China
Brand Name: ohmalloy
Certification: ISO
Model Number: Incoloy 825
Payment & Shipping Terms:
Minimum Order Quantity: 100kg
Price: negotiation
Packaging Details: plastics film and plywood case
Delivery Time: 10 WORK DAYS
Payment Terms: T/T, L/C, , MoneyGram
Supply Ability: 2000KG/10WORK DAYS
Detailed Product Description
Application: Aerospace Component Shape: Rod
Surface: Bright &smooth Color: Silvery White
Standard: ASTM,DIN Density: 7.75g/cm3
High Light:

Diameter 13mm Incoloy 825 Bar

,

Aerospace Nichrome Rod

,

ASTM Nichrome Rod

 Nichrome Rod Diameter 13mm Length 1000mm Incoloy 825 Rod/Bar

Incoloy 825

Introduction
Incoloy 825 is a nickel-iron-chromium alloy with additions of molybdenum and copper. This nickel steel alloy’s chemical composition is designed to provide exceptional resistance to many corrosive environments. It is similar to alloy 800 but has improved resistance to aqueous corrosion. It has excellent resistance to both reducing and oxidizing acids, to stress-corrosion cracking, and to localized attack such as pitting and crevice corrosion. Alloy 825 is especially resistant to sulfuric and phosphoric acids.

Typical Uses and Applications
This nickel steel alloy is used for chemical processing, pollution-control equipment, oil and gas well piping, nuclear fuel reprocessing, acid production, and pickling equipment.



Product Details

Chemical composition:

Grade Ni% Cr% Mo% Fe% Al% Ti% C% Mn% Si%
Incoloy 825 38-46 19.5-23.5 2.5-3.5 Bal. Max 0.2 0.6-1.2 Max 0.05 Max 1.0 Max 0.5



Specifications:

Grade UNS Werkstoff Nr.
Incoloy 825 N08825 2.4858



Physical Properties:

Grade Density Melting Point
Incoloy 825 8.1g/cm3 1370°C-1400 °C



Mechanical Properties:

Heat Treatment Tensile Strength Yield Strength σp0.2/MPa Elongation Brinell Hardness
σ5 /%
Solution Treatment 550 N/mm² 250 N/mm² 35% ≥200


Available Specifications:

Grade Bar Forging Parts Welded Tube Seamless Tube Sheet/Strip
Incoloy 825 ASTM B425 ASTM B564 ASTM B704/705 ASTM B423 ASTM B424



Available forms:
Incoloy 825 wire, bar, rod, strip, forging, plate, sheet, tube, fastener and other standard forms are available.



Available for product specifications

Grades Type Thickness/mm Width/mm
N08800 Coil 1.0-5.0 900-1200
Medium plate
Round bar
Round wire rod
N08810/N08811 Coil
Medium plate 6-68 1400-2500
Round bar 80-350
Round wire rod



Diameter 13mm Incoloy 825 Bar ASTM Aerospace Nichrome Rod 0


FAQ

1. What's the minimum quantity customer can order?

If we have your size in stock, we can provide any quantity you want.

If we do not have, for spool wire, we can produce 1 spool, about 2-3kg. For coil wire, 25kg.



2. How can you pay for small sample amount?

We have account, wire transfer for sample amount also ok.



3. Customer do not have express account. How will us arrange the delivery for sample order?

Just need to provide your address information, we will check the express cost, you can arrange the express cost together with sample value.



4. What's our payment terms?

We can accept LC T/T payment terms, it also depending on delivery and total amount. Let's talk more in details after getting your detailed requirements.



5. Do you provide free samples?

If you want several meters and we have stock of your size, we can provide, customer need to bear the International express cost.



6. What's our working time?

We will give you reply through email/phone Online contact tool within 24 hours. No matter working day or holidays.
