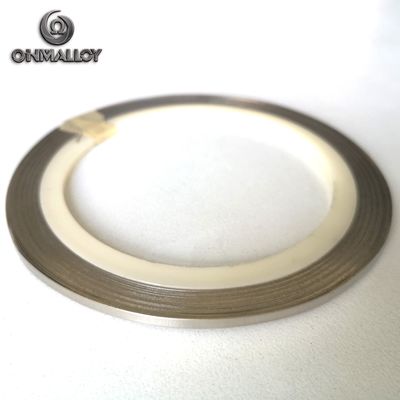

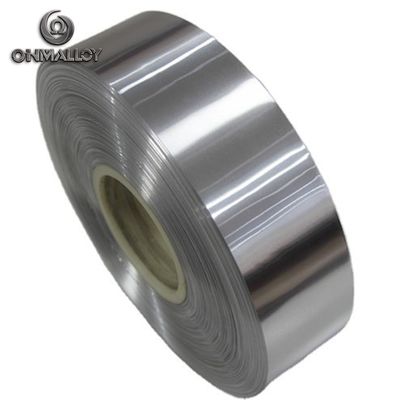

1/4 Hard Nickel Plated Strip For Lithium Battery

1/4 Hard Nickel Plated Strip For Lithium Battery
1/4 Hard Nickel Plated Strip For Lithium Battery
video play

Large Image :  1/4 Hard Nickel Plated Strip For Lithium Battery Get Best Price

Product Details:
Place of Origin: Hangzhou
Brand Name: OHMALLOY/OEM
Certification: ISO9001:2015
Model Number: SP-N6
Payment & Shipping Terms:
Minimum Order Quantity: 5KG
Packaging Details: waterproof paper+plywood case
Delivery Time: 3-12 working days after payment confirmed
Payment Terms: L/C, T/T, , MoneyGram,paypal
Supply Ability: 30 tons per month
Detailed Product Description
Name: 1/4 Hard Pure Nickel Strip Foil Ribbon For Li-lithium Battery Material Purity: >99.9%
State: 1/4Hard(110-150HV) Size: 0.02-8mm(Thickness)0.2-250mm(Width)
Package: Paper+Plywood Case Usage: Li-lithium Battery Pack
Edge Handle: Cut Edge
High Light:

1/4 Hard Nickel Plated Strip

,

8mm Lithium Battery Nickel Plated Strip

,

150HV Nickel Plated Strip

1/4 Hard Pure Nickel Strip Foil Ribbon For Li-lithium Battery Fast Delivery



1). Chemical composition(%)

Ni+Co Cu Si Mn C Mg S P Fe
99.9 0.015 0.03 0.002 0.01 0.01 0.001 0.001 0.04
99.6 0.1 0.1 0.05 0.1 0.1 0.005 0.002 0.1
99 ≤0.25 ≤0.35 ≤0.35 ≤0.02 / ≤0.01 / ≤0.40
99 0.2 0.3 0.3 0.15 / 0.01 / 0.4



2). Physical properties

Grade Density(g/cm3) Melting Range(℃) Curie point(℃) Volume resistivity(μΩ.cm)

Thermal

Conductivity

(W/m.℃)

Nickel 200 8.89 1435-1446 360 8.5(20℃) 79.3(20℃)


3). Mechnical properties

Strip State Reference

Hard(>190HV) 1/2Hard(140-170HV) 1/4Hard(110-150HV) Soft(70-110HV)


4). Usage

It is used in electric apparatus, lead for lamp and chemical machinery. Pure Nickel strip and foil, mainly used in batteries, electronic parts, some special lamp.

1/4 Hard Nickel Plated Strip For Lithium Battery 0

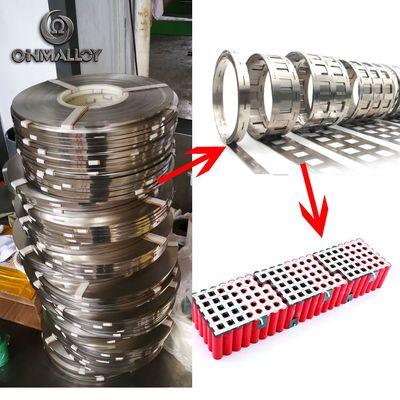

Formed Nickel strip

Formed nickel strip are mainly used in solar energy street lamps, energy storage battery packs, communications base station backup power and small power battery packs and other fields.

1/4 Hard Nickel Plated Strip For Lithium Battery 1

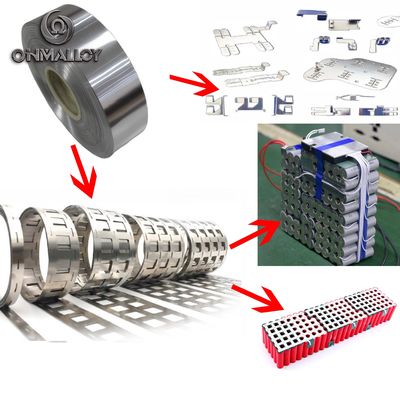

Metal stampings and Nickel sheet

Power tools, garden tools battery pack precision metal stamping parts, battery connector, copper sheet, and metal terminal and various battery special connector.
1/4 Hard Nickel Plated Strip For Lithium Battery 2



1/4 Hard Nickel Plated Strip For Lithium Battery 3

Features
Stable performance;Anti-oxidation;Corrosion resistance;High temperature stability;Excellent coil-forming ability;Uniform and beautiful surface condition without spots.

1/4 Hard Nickel Plated Strip For Lithium Battery 4

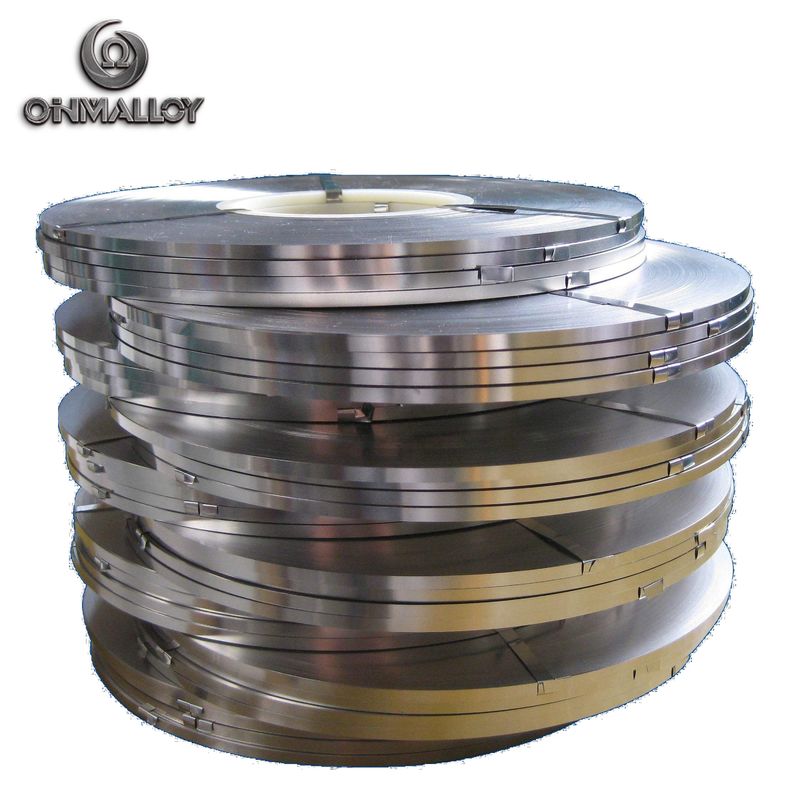

5).Package

1) Coil (plastic spool) + compressed ply-wooden case + pallet

2) Coil (plastic spool) + carton + pallet

1/4 Hard Nickel Plated Strip For Lithium Battery 5
