| Name: | Thermocouple Ceramic Tube | Shape: | Tube |
|---|---|---|---|
| Grade: | Type B,type S,type K | Measuring Range:: | 0~1800C |
| Thermowell Diameter:: | 16mm, 20mm, 25mm | Customized Support:: | OEM, ODM, OBM |
| High Light: | 16mm Thermocouple High Temp Alloys,OBM High Temp Alloys,M20×1.5 Thermocouple High Temp Alloys |
||

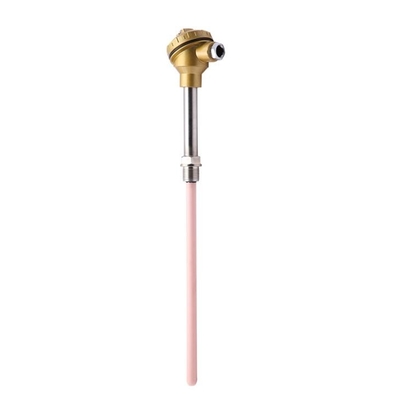

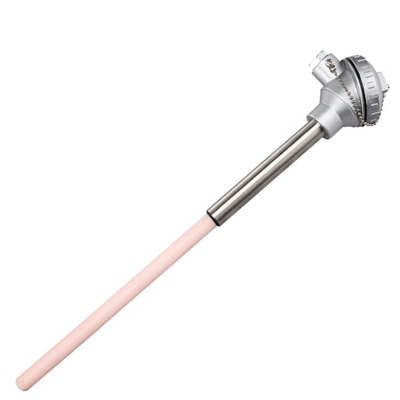

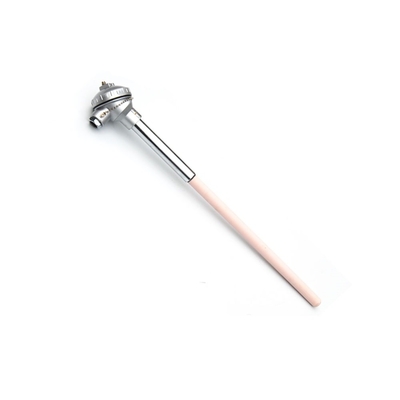

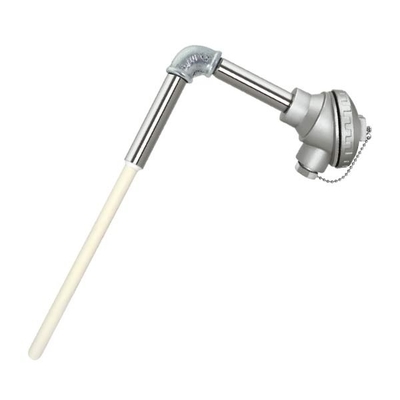

Type B/S/K thermocouple with ceramic tube
Calibration grade
Tolerance: ClassⅠ, Class Ⅱ

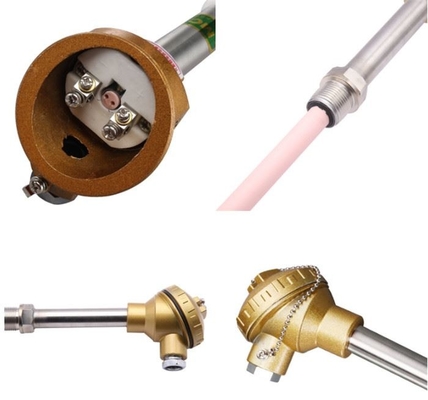

Electrical interface:
M20×1.5,M22×1.5,1/2NPT (M30×1.5 and M36×2)
Connector screw
Screw size:M12×1.5,M16×1.5,M27×2,G1/2,G3/4,1/2NPT
(Ceramic protection tube) Thermcouple
| Thermocouple grade | Model | Grade | Temperature range ℃ | Spec | Thermal response time τ 0.5(s) |
|
| OD mm | Protection tube material | |||||
| Simplex type B | WRR-130 | B | 0~1800 | φ16 | Alundum tube | <150 |
| Simplex type B | WRR-131 | B | 0~1800 | φ25 | Alundum tube | <360 |
| Duplex type B | WRR2-130 | B | 0~1800 | φ16 | Alundum tube | <150 |
| Duplex type B | WRR2-131 | B | 0~1800 | φ25 | Alundum tube | <360 |
| Simplex type S | WRP-130 | S | 0~1600 | φ16 | Ceramic | <150 |
| Simplex type S | WRP-131 | S | 0~1600 | φ25 | Ceramic | <360 |
| Duplex type S | WRP2-130 | S | 0~1600 | φ16 | Ceramic | <150 |
| Duplex type S | WRP2-131 | S | 0~1600 | φ25 | Ceramic | <360 |
| Simplex type K | WRN-133 | K | 0~1100 | φ20 | Ceramic | <240 |
| Duplex type K | WRN2-133 | K | 0~1100 | φ20 | Ceramic | <240 |
| Simplex type K | WRN-132 | K | 0~1100 | φ16 | Ceramic | <240 |
Remarks:
1) Non-insertion tube material: SS304 or SS316 or SS310
2) Dia φ25mm tube is double-layer ceramic
3) We also can make the special tube as per customer’s design
