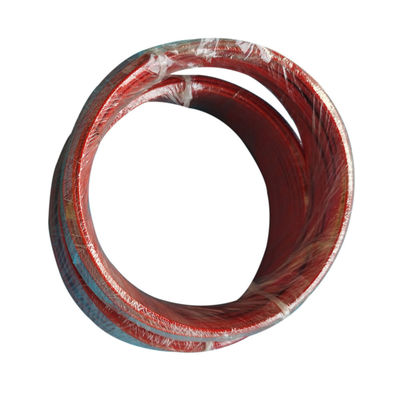

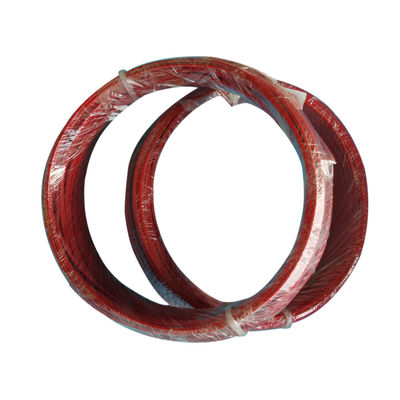

PVC Insulated Heating Cable - Nicr35/20, Nicr AA, Inconel 600 & 625 Alloy Conductors

PVC Insulated Heating Cable - Nicr35/20, Nicr AA, Inconel 600 & 625 Alloy Conductors
PVC Insulated Heating Cable - Nicr35/20, Nicr AA, Inconel 600 & 625 Alloy Conductors PVC Insulated Heating Cable - Nicr35/20, Nicr AA, Inconel 600 & 625 Alloy Conductors

Large Image :  PVC Insulated Heating Cable - Nicr35/20, Nicr AA, Inconel 600 & 625 Alloy Conductors Get Best Price

Product Details:
Place of Origin: China(Shanghai)
Brand Name: OHMALLOY
Certification: ISO9001-2008
Model Number: NiCr35/20
Payment & Shipping Terms:
Minimum Order Quantity: 500meter
Price: negotiable
Packaging Details: Roll/Spool
Delivery Time: 7-10 days
Payment Terms: L/C, T/T, , MoneyGram
Supply Ability: 500000 meter per month
Detailed Product Description
Conductor Material: NiCr35/20 Type: Insulated
Application: Heating Conductor Type: Stranded
Insulation Material: PVC Jacket: PVC

PVC Insulated Heating Cable - Nicr35/20, Nicr AA, Inconel 600 & 625 Alloy Conductors


Technical Specifications

Parameter Specification Standard/Reference

Insulation PVC (Polyvinyl Chloride) UL 758 / GB 12706

Max Operating Temp 105°C Continuous (120°C Short-term) PVC thermal limit

Voltage Rating 0.6/1 kV AC/DC IEC 60227

Conductor Options Nicr35/20, Nicr AA, Inconel 600, Inconel 625 ASTM B344

Resistivity Range Nicr35/20: ~1.10 μΩ·mInconel 625: 1.30 μΩ·m Alloy properties

Key Performance Advantages

  1. Cost-Effective Thermal Solution
    • PVC insulation reduces 40% cost vs. silicone/FEP, ideal for budget-sensitive industrial heating systems .
  2. Multi-Alloy Flexibility
    • Nicr35/20: 1,200°C max conductor temp (furnace coils) .
    • Inconel 625: Superior chloride resistance for marine/chemical environments .
  3. Easy Installation & Customization
    • PVC’s rigidity simplifies routing in control panels; supports custom gauges (0.2–10mm) and colors (6+ RAL) .

Alloy Selection Guide

Alloy Max Temp Key Strength Ideal Application

Nicr35/20 1,200°C Oxidation resistance Industrial heaters, kilns

Nicr AA 1,150°C High aluminum content (anti-sag) Oven heating elements

Inconel 600 1,000°C Acid/caustic resistance Chemical processing equipment

Inconel 625 1,000°C Chloride/pitting resistance Offshore platforms, marine

Application Scenarios

"Optimized for moderate-heat industrial systems:

  • HVAC Duct Heating – PVC insulation resists moisture in ventilation systems (<90°C).
  • Food Processing Lines – Inconel 625 conductors withstand steam cleaning (FDA-compliant).
  • Plastic Extruders – Nicr35/20 coils provide stable heat for polymer molding.
  • Low-Cost Thermal Prototypes – PVC’s affordability enables rapid OEM testing



Critical Limitations & Compliance

  • Temperature Caution:"PVC insulation degrades above 105°C – not suitable for high-temp zones (e.g., engine bays). For >105°C, upgrade to FEP/PFA insulation ."
  • Regulatory Notes:
    • Complies with RoHS/REACH (heavy-metal-free).
    • UL 758 certified for appliance wiring (US/CA markets) .

Customization Options

  • Conductor Gauges: 0.2mm–10mm (e.g., 1.5mm Nicr35/20: 0.617 Ω/m) .
  • Colors: White, black, red, yellow, blue, green (circuit ID).
  • Packaging: Moisture-proof spools + wooden crates (export-ready).
  • Certification: ISO 9001 + test reports on request .
Chemical Composition of NiCr80/20



Material Chemical composition (%)
Ni Fe Cr Si Al
NiCr80/20 Bal <0.8 20-22 0.7-1.5 <0.5



Insulation material: Silicone



Long-term max standing temperature 105ºC
Shor-term max standing temperature 120ºC



Size and Resistance Value



Dia of NiCr80/20 Resistance value (ohm/m) Thickness of insulation OD of cable
0.2mm 34.7 0.3mm 0.7mm
0.5mm 5.55 0.35mm 1.2mm
0.8mm 2.16 0.35mm 1.5mm
1.0mm 1.38 0.40mm 1.8mm
1.2mm 0.965 0.45mm 2.1mm
1.5mm 0.617 0.50mm 2.5mm


Remarks: The size can be changed if special requirement.
The thickness of insulation also can be adjusted by special requirement. We can do insulation thickness 0.2mm to 2.5mm



Available conductor alloy grade as follows:

NiCr60/15 CuNi44 CuNi23 OCr25Al5 OCr21Al6
Nickel 200 Nickel 201 Nickel 212 Tinned copper wire CuNi6
CuNi10 NiCr35/20 NiCr AA Inconel 600 Inconel 625



Available color: Black, white, green, red, yellow, blue

PVC Insulated Heating Cable - Nicr35/20, Nicr AA, Inconel 600 & 625 Alloy Conductors 0

FAQ:

1. What's the minimum quantity customer can order?

If we have your size in stock, we can provide any quantity you want.

If we do not have, for spool wire, we can produce 1 spool, about 2-3kg. For coil wire, 25kg.



2. How can you pay for small sample amount?

We have account, wire transfer for sample amount also ok.



3. Customer do not have express account. How will us arrange the delivery for sample order?

Just need to provide your address information, we will check the express cost, you can arrange the express cost together with sample value.



4. What's our payment terms?

We can accept LC T/T payment terms, it also depending on delivery and total amount. Let's talk more in details after getting your detailed requirements.



5. Do you provide free samples?

If you want several meters and we have stock of your size, we can provide, customer need to bear the International express cost.



6. What's our working time?

We will give you reply through email/phone Online contact tool within 24 hours. No matter working day or holidays.
