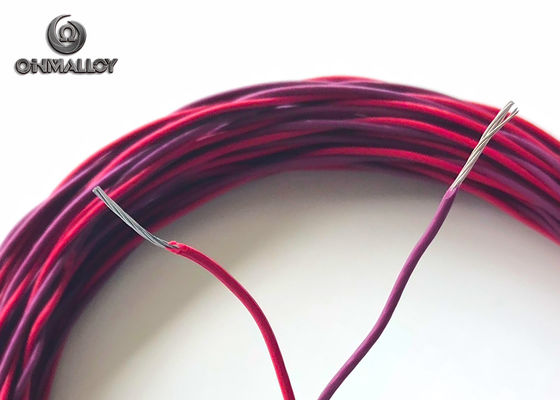

Fiberglass Insulation Thermocouple Cable Multi Strands Silicone Rubber Jacket

Fiberglass Insulation Thermocouple Cable  Multi Strands Silicone Rubber Jacket
Fiberglass Insulation Thermocouple Cable  Multi Strands Silicone Rubber Jacket Fiberglass Insulation Thermocouple Cable  Multi Strands Silicone Rubber Jacket Fiberglass Insulation Thermocouple Cable  Multi Strands Silicone Rubber Jacket Fiberglass Insulation Thermocouple Cable  Multi Strands Silicone Rubber Jacket Fiberglass Insulation Thermocouple Cable  Multi Strands Silicone Rubber Jacket

Large Image :  Fiberglass Insulation Thermocouple Cable Multi Strands Silicone Rubber Jacket Get Best Price

Product Details:
Place of Origin: jiangshu
Brand Name: Ohmalloy/OEM
Certification: GB
Model Number: SP-KP-FP-FP-0.5R
Payment & Shipping Terms:
Minimum Order Quantity: 600 meters
Price: USD 0.5~10/meter
Packaging Details: Spool+paper case + wooden case/plastic packing+papre case+ wooden box outside(or customized)
Delivery Time: 5-8 working days after payment confirmed
Payment Terms: L/C, T/T, , MoneyGram,paypal
Supply Ability: 10000 meter/day
Detailed Product Description
Name: PEF/Fiberglass Insulation Prices Type J Thermocouple Cable Multi Strands 24AWG Conductor Material: JP: CuNi45 JN: Fe
Insulation Material: Fiberglass/PTFE/PEF/Silicone Rubber Jacket Material: Fiberglass/PTFE/PEF/Silicone Rubber/PVC
Diameter: 0.5R*2(7*0.30mm) Color: Purple And Red(customized)
Certificate: GOST/JIS/GB(customized)
High Light:

k type thermocouple cable

,

thermocouple bare wire

PEF/Fiberglass Insulation Prices Type J Thermocouple Cable Multi Strands 24AWG



TYPE J (Iron vs Constantan) is used in vacuum, oxidizing, inert or reducing atmospheres. Iron element oxidizes rapidly at temperatures exceeding 538'C, and therefore heavier gauge wire is recommended for longer life at these temperatures.



1. Product Details



Fiberglass Insulation Thermocouple Cable  Multi Strands Silicone Rubber Jacket 0

Fiberglass Insulation Thermocouple Cable  Multi Strands Silicone Rubber Jacket 1

Fiberglass Insulation Thermocouple Cable  Multi Strands Silicone Rubber Jacket 2

1. Chemical Composition

Material Chemical composition (%)
Ni Cu Si Iron Al
JP(Iron)       100
JN(Constantan) 45 55



2. Physical Properties and Mechnical Properties





Material





Density(g/cm3)



Melting point(℃)



Tensile Strength(Mpa)



Volume resistivity(μΩ.cm)



Elongation rate (%)

JP(Iron) 7.8 1402 >240 12.0(20℃) >20
JN(Constantan) 8.8 1220 >390 49.0(20℃) >25



3. EMF Value Range at Different Temperature



Material EMF value (μV)
100℃ 200℃ 300℃ 400℃ 500℃ 600℃
JP-JN 5187~5351 10696~10862 16244~16410 21760~21936 27281~27505 32962~33242
EMF value Vs Pt(μV)
700℃ 750℃ 760℃ 800℃ 900℃ 1000℃
38958~39306 42089~42473 42725~43113



Fiberglass Insulation Thermocouple Cable  Multi Strands Silicone Rubber Jacket 3

Fiberglass Insulation Thermocouple Cable  Multi Strands Silicone Rubber Jacket 4

Fiberglass Insulation Thermocouple Cable  Multi Strands Silicone Rubber Jacket 5



2. Size Range Reference

Alloys Name Type Dimension
SP-KP-PF-PF-0.5RW Wire D=0.03mm~8mm
SP-KP-PF-PF-0.5RR Ribbon W=0.4~40 T=0.03~2.9mm
SP-KP-PF-PF-0.5RS Strip W=8~250mm T=0.1~3.0
SP-KP-PF-PF-0.5RF Foil W=6~120mm T=0.003~0.1
SP-KP-PF-PF-0.5RB Bar Dia=8~100mm L=50~1000



3. Production Progress

Fiberglass Insulation Thermocouple Cable  Multi Strands Silicone Rubber Jacket 6

3. Production Progress

-heating alloy.jpg





4. Package Reference

Fiberglass Insulation Thermocouple Cable  Multi Strands Silicone Rubber Jacket 6

5. Our Service



Fiberglass Insulation Thermocouple Cable  Multi Strands Silicone Rubber Jacket 9



Fiberglass Insulation Thermocouple Cable  Multi Strands Silicone Rubber Jacket 10



6. Questions and Answers



Q1:How can I contact with your company?

A1:We have multiple communication channels : Tel/Skype/Whatsapp/Wechat :+86-15826530281



Q2:Do you provide free samples?

A2:Yes,we can provide free samples for your testing,but buyer should bear the shipping costs.



Q3:What is your payment terms?

A3:30% in advance,balance after receiving the copy of B/L. T/T,L/C,,Paypal is OK.



Q4:What is your lead time?

A4:On normal condition,the lead time is 7 days after the payment. Special order or quantity is subject to the negotiation.





Q5:What is your working time?

A5: Monday to Firday: 9:00-12:00,13:30-17:30, rest in weekend.



Q6:Can i visit your factory?

A56: We will warmly welcome your visit and arrange the proper schedule for you.
