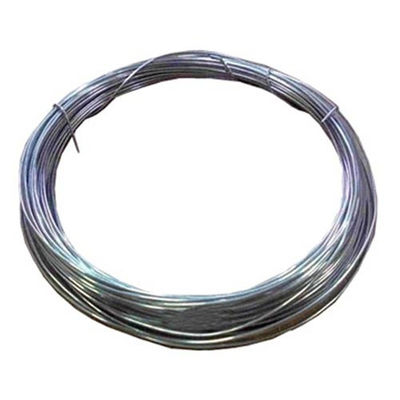

1.09 Resistivity Nickel Chrome Alloy 8.4g / Cm3 Super Fast Heating Speed
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Density: | 8.4g/cm3 | Electrical Resistivity: | 1.09 |
|---|---|---|---|
| Conductivity Coefficient At 20 C: | 15 Wmk | Melting Point: | 1400 C |
| Operating Temperature: | 1200 C | Magnetic Properties: | Non-magnetic |
| Highlight: | nichrome wire,nichrome resistance wire |
||
OhmAlloy109
(Common Name: Ni80Cr20,Nikrothal 8,MWS-650,NiCrA,Tophet A,HAI-NiCr 80,Chromel A,Alloy A,Alloy 650,N8,Resistohm 80, Stablohm 650,Nichorme V,Nikrothal 80.)
Nichrome has a silvery gray coloration. Nichrome wires are quite oxidation resistant. When at a high temperature environment, up to 1200 C (Nicr 8020), both nickle oxide and chromium oxide will be formed. As chromium oxide is more stable than nickel oxide, a layer of chromium oxide will be formed on the surface of the nichrome wire. The diffusion rate D of oxygen through chromium oxide is very low, which is 10-14 cm2/sec.
In order to have enough resistance, mental conduct wires always are designed into thin form. They process of oxidation will be quick, making them brittle and break when heated in air. By contrast, not only does nichrome have a excellent oxidation resistant, it also has a good ductility after high temperature use. Besides that, nichrome alloys have a higher emissivity compared to other air-stable resistance alloys. Nichrome alloys will endure a lower element temperature at the same surface load. Moreover, Nichrome alloys will be preferred in low-temperature applications because of its non-magnetic feature. It also has a higher hot and creep strength, wet corrosion resistance and good wear resistance.
A marked increase in electrical resistivity is observed with increasing chromium additions. An addition level of 20% chromium is considered the optimum for electrical resistance wires suitable for heating elements. This composition combines good electrical properties with good strength and ductility, making it suitable for wire drawing.
Application Examples
Nichrome is used to prepare bridgewire for electric ignition systems like model rocket igniters, electric matches and electronic cigarettes.
Nichrome wires are used to test the flame color in the non-illuminated parts of cation fire from the cations of sodium, copper, potassium and calcium.
Nichrome is also used in microbiological laboratories.
This substance is used in the manufacturing of motorcycle silencers.
Normal composition%
| C | P | S | Mn | Si | Cr | Ni | Al | Fe | Other |
| Max | |||||||||
| 0.03 | 0.02 | 0.015 | 0.60 | 0.75~1.60 | 20.0~23.0 | Bal. | Max 0.50 | Max 1.0 | - |
Typical Mechanical properties(1.0mm)
| Yield strength | Tensile Strength | Elongation |
| Mpa | Mpa | % |
| 420 | 810 | 30 |
Typical Physical properties
| Density (g/cm3) | 8.4 |
| Electrical resistivity at 20℃(Ωmm2/m) | 1.09 |
| Conductivity coefficient at 20℃ (WmK) | 15 |
| Coefficient of thermal expansion | |
| Temperature | Coefficient of Thermal Expansion x10-6/℃ |
| 20 ℃- 1000℃ | 18 |
| Specific heat capacity | |
| Temperature | 20℃ |
| J/gK | 0.46 |
| Melting point (℃) | 1400 |
| Max continuous operating temperature in air (℃) | 1200 |
| Magnetic properties | non-magnetic |
| Temperature Factors Of Electrical Resistivity | |||||
| 20℃ | 100℃ | 200℃ | 300℃ | 400℃ | 600℃ |
| 1 | 1.006 | 1.012 | 1.018 | 1.025 | 1.018 |
| 700℃ | 800℃ | 900℃ | 1000℃ | 1100℃ | 1300℃ |
| 1.01 | 1.008 | 1.01 | 1.014 | 1.021 | - |
Style of supply
| Alloys Name | Type | Dimension | |
| OhmAlloy109W | Wire | D=0.03mm~8mm | |
| OhmAlloy109R | Ribbon | W=0.4~40 | T=0.03~2.9mm |
| OhmAlloy109S | Strip | W=8~250mm | T=0.1~3.0 |
| OhmAlloy109F | Foil | W=6~120mm | T=0.003~0.1 |
| OhmAlloy109B | Bar | Dia=8~100mm | L=50~1000 |
1. What's the minimum quantity customer can order?
If we have your size in stock, we can provide any quantity you want.
If we do not have, for spool wire, we can produce 1 spool, about 2-3kg. For coil wire, 25kg.
2. How can you pay for small sample amount?
We have account, wire transfer for sample amount also ok.
3. Customer do not have express account. How will we arrange the delivery for sample order?
Just need to provide your address information, we will check the express cost, you can arrange the express cost together with sample value.
4. What's our payment terms?
We can accept LC T/T payment terms, it also depending on delivery and total amount. Let's talk more in details after getting your detailed requirements.
5. Do you provide free samples?
If you want several meters and we have stock of your size, we can provide, customer need to bear the International express cost.
6.How do you guarantee the quality?
We have QC who are responsible for tracking and monitoring whole production process, and we are willing to accept customer‘s testing.
7. What's our working time?
We will give you reply through email/phone Online chat tool within 24 hours. No matter working day or holidays.
