| Density (g/cm3): | 8.9 | Electrical Resistivity At 20℃ (Ωmm2/m): | 0.01 |
|---|---|---|---|
| Temperature Factor Of Resistivity（20℃~600℃）X10-5/℃: | <60 | Conductivity Coefficient At 20℃ (WmK): | 92 |
| EMF Vs Cu(μV/℃ )(0~100℃ ): | -18 | Melting Point (℃): | 1095 |
| Highlight: | co ni alloy,copper nickel alloy |
||

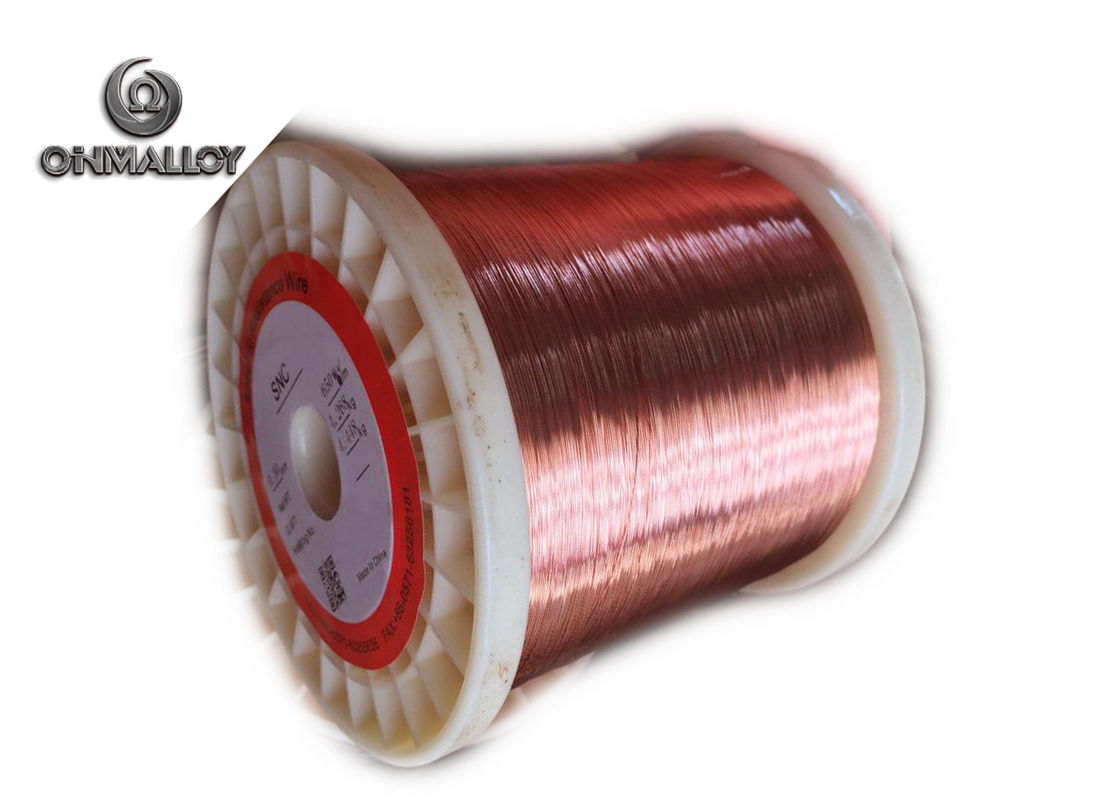

OhmAlloy 010(Resistance heating wire and resistance wire)
(Common Name:Cuprothal 10,CuNi6,NC6)
OhmAlloy 010 is a copper-nickel alloy (Cu94Ni6 alloy) with low resistivity for use at temperatures up to 220°C.
OhmAlloy 010 Wire is typically used for low-temperature applications such as heating cables.
| Nickel | 6 | Manganese | - |
| Copper | Bal. |
| Yield strength | Tensile Strength | Elongation |
| Mpa | Mpa | % |
| 110 | 250 | 25 |
| Density (g/cm3) | 8.9 |
| Electrical resistivity at 20℃ (Ωmm2/m) | 0.1 |
| Temperature factor of resistivity(20℃~600℃)X10-5/℃ | <60 |
| Conductivity coefficient at 20℃ (WmK) | 92 |
| EMF vs Cu(μV/℃ )(0~100℃ ) | -18 |
| Coefficient of thermal expansion | |
| Temperature | Thermal Expansion x10-6/K |
| 20 ℃- 400℃ | 17.5 |
| Specific heat capacity | |
| Temperature | 20℃ |
| J/gK | 0.380 |
| Melting point (℃) | 1095 |
| Max continuous operating temperature in air (℃) | 220 |
| Magnetic properties | non-magnetic |
| Alloys | Working In atmosphere at 20℃ | Working at max temperature 200℃ | |||||
|
Air and oxygen contain gases |
gases with Nitrogen |
gases with sulfur oxidability |
gases with sulfur reductibility |
carburization | |||
| OhmAlloy 010 | good | bad | bad | bad | bad | good | |
| Alloys Name | Type | Dimension | ||
| OhmAlloy 010W | Wire | D=0.06mm~8mm | ||
| OhmAlloy 010R | Ribbon | W=0.4~40 | T=0.05~2.9mm | |
| OhmAlloy 010S | Strip | W=8~200mm | T=0.1~3.0 | |
| OhmAlloy 010F | Foil | W=6~120mm | T=0.005~0.1 | |
| OhmAlloy 010B | Bar | Dia=8~100mm | L=50~1000 | |
