Resistivity(μΩ.m):: | 0.43 | Density (g/cm3):: | 8.4 |
---|---|---|---|
Tensile Strength:: | 390Mpa | Elongation:: | 15% |
Thermal Coefficient At 20℃ (WmK) :: | 22 | Application:: | Shunt Resistor |
Highlight: | nickel iron alloy,low expansion alloys |

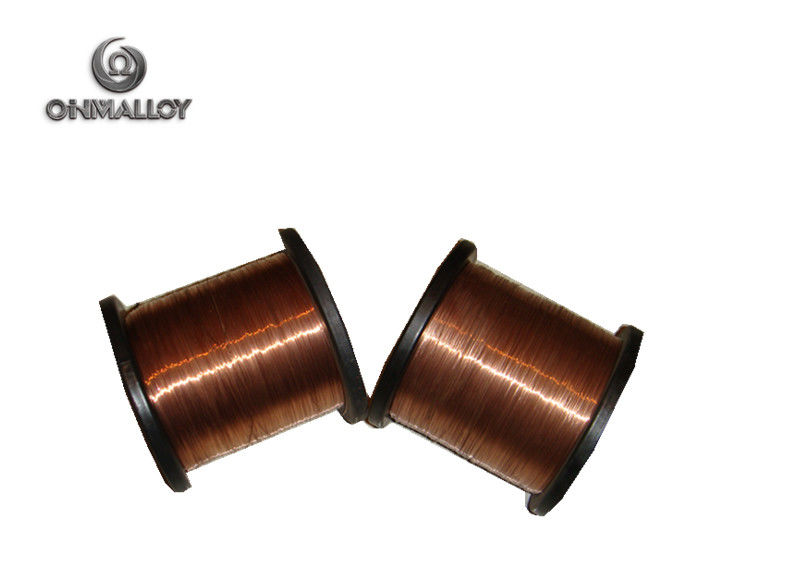

Shunt Manganin 43(Precision Resistance wire)
(Common Name: Manganin 43,CuMn12Ni4,Manganin )
Shunt Manganin 43 is a copper-manganese-nickel alloy (CuMnNi alloy) for use at room temperature. The alloy is characterized by very low thermal electromotive force (emf) compared to copper.
Shunt Manganin43 widely used for Shunt resistor with the highest requirements, shunt manganin43 has been used in precision built electrical components such as Wheatstone bridges, decade boxes, voltage drivers, potentiometers and resistance standards.
precision shunts
Nickel | 4 | Manganese | 12 |
Copper | Bal. |
Yield strength | Tensile Strength | Elongation |
Mpa | Mpa | % |
180 | 390 | 15 |
Density (g/cm3) | 8.4 |
Electrical resistivity at 20℃ (Ωmm2/m) | 0.43 |
Temperature factor of resistivity(20℃~600℃)X10-5/℃ | -7~40 |
Thermal coefficient at 20℃ (WmK) | 22 |
EMF vs Cu(μV/℃ )(0~100℃ ) | <2 |
Coefficient of thermal expansion | |
Temperature | Thermal Expansion x10-6/K |
20 ℃- 100℃ | 18 |
20 ℃- 400℃ | 19.5 |
Specific heat capacity | |
Temperature | 20℃ |
J/gK | 0.41 |
Melting point (℃) | 960 |
Element working temperature in air (℃) | 5~45 |
Magnetic properties | non-magnetic |
Corrosion resistance performance
Alloys | Working In atmosphere at 20℃ | Working at max temperature 200℃ | |||||
Air and oxygen contain gases |
gases with Nitrogen |
gases with sulfur oxidability |
gases with sulfur reductibility |
carburization | |||
Manganin43 | good | bad | bad | bad | bad | good |
Style of supply
Alloys Name | Type | Dimension | ||
Manganin43W | Wire | D=0.03mm~8mm | ||
Manganin43R | Ribbon | W=0.4~40 | T=0.03~2.9mm | |
Manganin43S | Strip | W=8~200mm | T=0.1~3.0 | |
Manganin43F | Foil | W=6~120mm | T=0.003~0.1 | |
Manganin43B | Bar | Dia=8~100mm | L=50~1000 |
