Product Details:
Payment & Shipping Terms:
|
| Brand: | Ohmalloy | Shape: | Wire |
|---|---|---|---|
| Surface: | Bright And Oxidation | Product Name: | Resistance Wire |
| Certification: | ISO9001 | Feature: | High Resistance |
| Standard: | GB/T 1234-2012 | Package: | DIN 125 |
| Length: | 198m/kg | Resistance Value: | 1.82ohm/m+/-5%(1.73-1.91) |
| High Light: | nichrome wire,nichrome resistance wire,nickel chromium resistance wire |
||

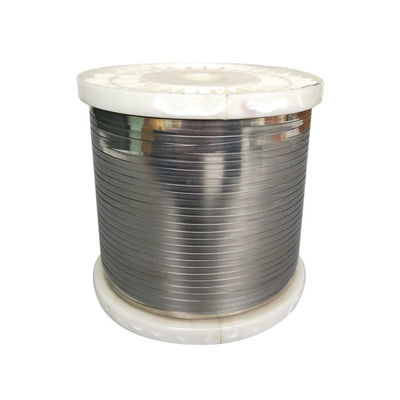

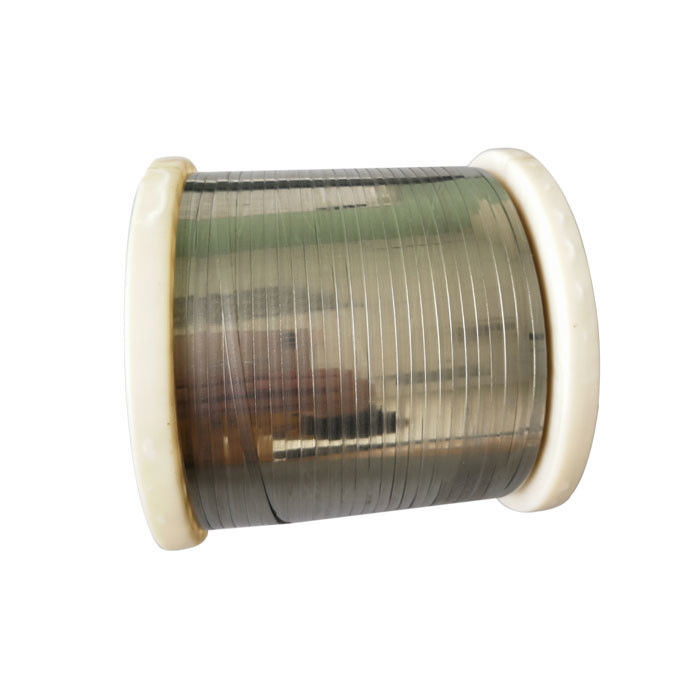

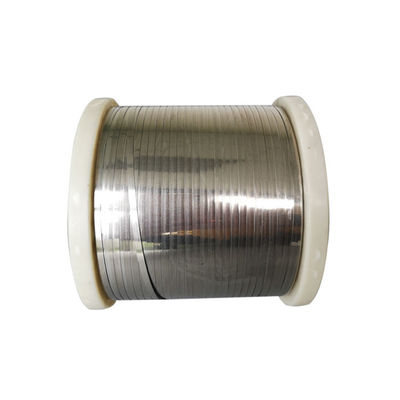

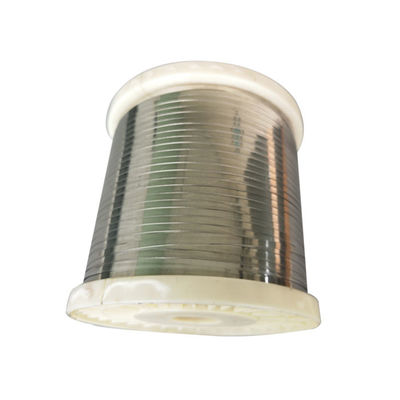

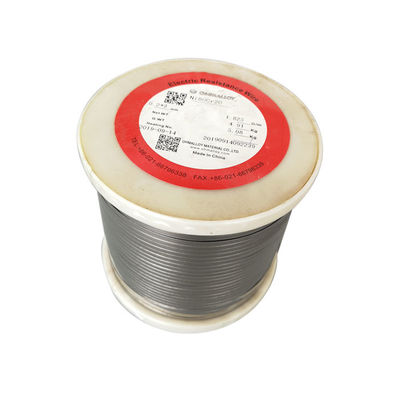

0.2mmx3.0mm Ni80Cr20 Ribbon as heating ribbon For Sealing
Similar sizes:0.2mm*2mm,0.2mm*3mm,0.2mm*4.0mm,0.25mm*3.0mm,0.25mm*4.5mm,
0.3*3.0mm,0.3mm*4.0mm,0.3mm*5mm,0.5mm*4.0mm,0.5mm*5mm,1mm*5mm,
1.0mm*10mm,0.3mm*12mm etc.
It is available upon your requests.
Applicaton:Ni80Cr20 Ribbon is mainly used as heating wire in the sealing machines
For Ni80Cr20,the equivalent in other country is Nikrothal 8,MWS-650,NiCrA,Tophet A,HAI-NiCr 80,Chromel A,Alloy A,Alloy 650,N8,Resistohm 80, Stablohm 650,Nichorme V,Nikrothal 80
|
C |
P |
S |
Mn |
Si |
Cr |
Ni |
Al |
Fe |
Other |
|
Max |
|||||||||
|
0.03 |
0.02 |
0.015 |
0.6 |
0.75~1.60 |
20.0~23.0 |
Bal. |
Max 0.50 |
Max 1.0 |
- |
Mechanical properties and Physical properties
|
Max Continuous Service Temp |
1200℃ |
|
Melting Point |
1400℃ |
|
Resisivity at 20℃ |
1.09 ohm mm2/m |
|
Density |
8.4 g/cm3 |
|
Thermal Conductivity |
60.3KJ/m·h·℃ |
|
Coefficient of Thermal Expansion |
18.0×10-6/℃ |
|
Elongation |
Min 20% |
|
Magnetic |
NonMagnetic |
FAQ
1. What's the minimum quantity customer can order?
If we have your size in stock, we can provide any quantity you want.
If we do not have, for spool wire, we can produce 1 spool, about 2-3kg. For coil wire, 25kg.
2. How can you pay for small sample amount?
We have account, wire transfer for sample amount also ok.
3. Customer do not have express account. How will us arrange the delivery for sample order?
Just need to provide your address information, we will check the express cost, you can arrange the express cost together with sample value.
4. What's our payment terms?
We can accept LC T/T payment terms, it also depending on delivery and total amount. Let's talk more in details after getting your detailed requirements.
5. Do you provide free samples?
If you want several meters and we have stock of your size, we can provide, customer need to bear the International express cost.
6. What's our working time?
We will give you reply through email/phone Online contact tool within 24 hours. No matter working day or holidays.
