Product Details:
Payment & Shipping Terms:
|
| Material: | NiCr80/20 | Power: | 300W To 110KW |
|---|---|---|---|
| Form: | Coiled | Length: | Up To 30 Meters |
| High Light: | nichrome wire,nichrome resistance wire,nickel chromium resistance wire |
||

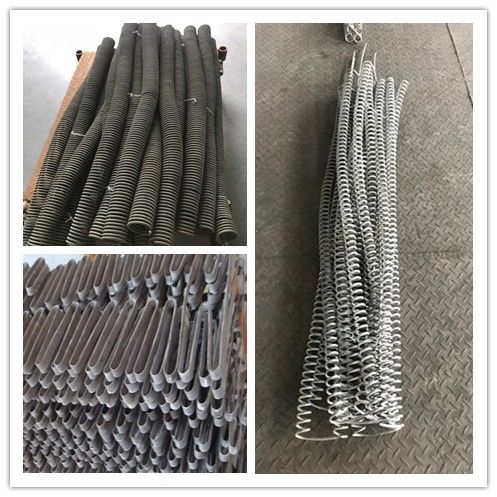

Coiled Nichrome Alloy wire 300W - 110KW
The normal small coiled nichrome wire is as follows:
| Power w |
Voltage v |
Dia of wire mm |
OD mm |
Length mm |
Weight g |
| 300 | 220 | 0.25 | 3.7 | 122 | 1.9 |
| 500 | 220 | 0.35 | 3.9 | 196 | 4.3 |
| 600 | 220 | 0.40 | 4.2 | 228 | 6.1 |
| 800 | 220 | 0.50 | 4.7 | 302 | 11.1 |
| 1000 | 220 | 0.60 | 4.9 | 407 | 18.5 |
| 1200 | 220 | 0.70 | 5.6 | 474 | 28.5 |
| 1500 | 220 | 0.80 | 5.8 | 554 | 39.0 |
| 2000 | 220 | 0.95 | 6.1 | 676 | 57.9 |
| 2500 | 220 | 1.10 | 6.9 | 745 | 83.3 |
| 3000 | 220 | 1.20 | 7.1 | 792 | 98.3 |
The client also can provide the above drawing if having it, that will be easy for us to quote the price.
Our available material include as follows:
| NiCr60/15 | NiCr80/20 | NiCr30/25 | OCr25Al5 | OCr21Al6 |
| OCr21Al6Nb | OCr27Al7Mo22 | OCr21Al4 | OCr17Al4 | OCr19Al3 |
| OCr24Al6 | NiCr90/10 | NiCr AA | NiCr C | OCr13Al4 |
The diameter of wire for heater coil range: 0.2mm to 9mm
Power output: 20W to 110KW
Our also can supply the service of custom made. The client just need to tell us the OD of coil and the stated power rate.
