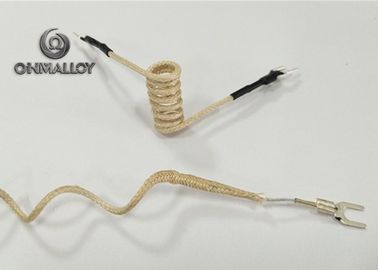

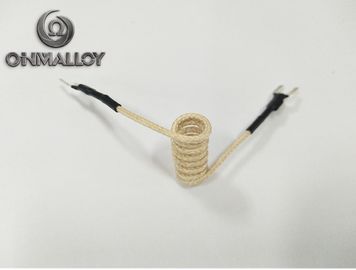

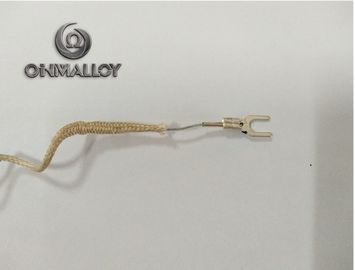

Low Temperature PTFE Fiberglass Insulated Wire 0.5mm OCr25Al5 Conductor For Relay

Low Temperature PTFE Fiberglass Insulated Wire 0.5mm OCr25Al5 Conductor For Relay
Low Temperature PTFE Fiberglass Insulated Wire 0.5mm OCr25Al5 Conductor For Relay Low Temperature PTFE Fiberglass Insulated Wire 0.5mm OCr25Al5 Conductor For Relay Low Temperature PTFE Fiberglass Insulated Wire 0.5mm OCr25Al5 Conductor For Relay

Large Image :  Low Temperature PTFE Fiberglass Insulated Wire 0.5mm OCr25Al5 Conductor For Relay Get Best Price

Product Details:
Place of Origin: China(Shanghai)
Brand Name: OHMALLOY
Certification: ISO9001-2008
Model Number: Insulated wire
Payment & Shipping Terms:
Minimum Order Quantity: 100meters
Price: negotiable
Packaging Details: in coil
Delivery Time: 7-10 days
Payment Terms: L/C, T/T, , MoneyGram
Supply Ability: 500000meters per month
Detailed Product Description
Conductor Material: OCr25Al5,NiCr,CuNi... Insulation Material: PTFE PFA
Out Jacket: Fiberglass Braid Color: Customized
Standard: GB/T 1234-2012 Size: 0.3mm 0.5mm 0.8mm 1.0mm 1.5mm
High Light:

silicone rubber insulated wire

,

high temperature insulated wire

low temperature PTFE Fiberglass Insulated wire 0.5mm OCr25Al5 conductor for relay



Conductor material: 0Cr25Al5



Material Chemical composition (%)
Fe Si Cr Al

Ni

0Cr25Al5

Bal Max0.6 23~26 4.5~6.5 Max0.6



Heating cable structure



Conductor size 0.5mm
Resistance value (ohm/m) 1.42+/-5%
Insulation layer PTFE PFA
Out jacket Fiberglass braid
OD of cable 1.8mm



Low Temperature PTFE Fiberglass Insulated Wire 0.5mm OCr25Al5 Conductor For Relay 0

Remarks: The size can be changed if special requirement.

The thickness of insulation also can be adjusted by special requirement. We can do insulation thickness 0.2mm to 2.5mm



Available conductor alloy grade as follows:



NiCr60/15 CuNi44 CuNi23 OCr25Al5 OCr21Al6
Nickel 200 Nickel 201 Nickel 212 Tinned copper wire CuNi6
CuNi10 NiCr35/20 NiCr AA Inconel 600 Inconel 625





Available color: Black, white, green, red, yellow, blue
