Product Details:
Payment & Shipping Terms:
|
| Type: | N,PT100,RTD | Conductor Material: | Positive Ni-Cr,Negative Ni-Al,Cu-Ni,NiCr-Konstantan |
|---|---|---|---|
| Application: | KX Thermocouple | Conductor Type: | Stranded/Solid |
| Insulation Material: | PVC,Fiberglass,FEP,PFA,Silicone Rubber | Temperature Range: | -200~1200,-40 To1700(Thermocouple),-0-1300C Or Other,0~1100(℃) |
| Usage: | Connecting With Thermocouple And Instrument Machine,RTD / Thermocouple | Color: | Requirement,As Per Customers Request,Available In Colors |
| Accuracy: | ±0.25%FS | Theory: | Temperature Sensor,Thermocouple Sensor |
| Conductor: | Solid. Material Is According To Thermocouple Type | Insulation: | PVC,PFA,fiberglass,Silicon |
| Jacket: | Fiberglass,Lead Alloy,PFA,F46 FEP | ||
| Highlight: | k type thermocouple cable,thermocouple bare wire,thermocouple extension wire |
||

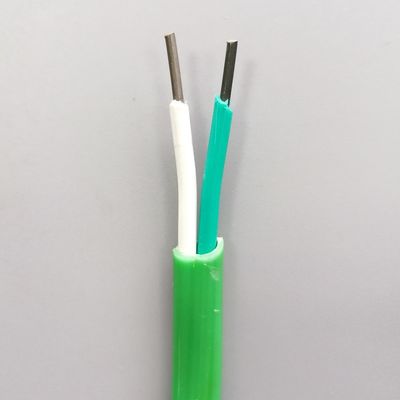

K type thermocouple compensation/compensating cable/wire
Type: pt 100, K, E, J, T, N, etc.
Style: solid or stranded, parallel or twisted
Specifications
Conductor material:
|
Calibration of thermocouple |
Model number of Compensation cable | Alloy wire name of Compensation cable |
| S or R | SC or RC | Cu-CuNi |
| K | KC | Cu-CuNi |
| KX | NiCr-NiSi | |
| N | NC | Fe-CuNi |
| NX | NiCrSi-NiSiMg | |
| E | EX | NiCr-CuNi |
| J | JX | Fe-CuNi |
| T | TX | Cu-CuNi |
Insulating and sheath material:
| insulation | PTFE | PFA | TEF | FEP | PVC | FG | silicone | kapton | Quartz fiber |
| Max temp(°c) | 260 | 260 | 200 | 200 | 108 | 400 | 200 | 400 | 800 |
Aplication:
1. Thermocouple level (high temperature level). This type of thermocouple wire is mainly suitable
for thermocouple type K, J, E, T, N and L and other high temperature detection instrument,
temperature sensor, etc.
2. Compensating wire level (low temperature level). This type of thermocouple wire is mainly suitable
for compensating cable and extension wire of various thermocouples of type S, R, B, K, E, J, T, N
and L, heating cable, control cable and so on.
Description:
| 1. insulator Material | Silicone, fiberglass, , PFA, FEP, PTFE, PVC, Quartz Fiber, Kapton |
| 2. Sheath Material | Silicone, fiberglass, , PFA, FEP, PTFE, PVC,Quartz Fiber, Kapton |
| 3. Conductor material | positive: Chromel, negative: Alumel |
| 4.Color code | ANSI, IEC, DIN, JIS, BS etc |
| 5.Size: | 0000 AWG46 AWG or customized |
| 6.MOQ: | 100m |
| 7.Samples Time: | (1)3-5days-If you want the exact size you need |
| (2)1day-For our available samples for reference. | |
| 8.OEM Accepted | Yes |
| 9.Certification available: | Yes |
| 10. Packing Details: | 100m/roll, 200m/roll, 1000m/ carton, Carton size: 50*50*27cm GW:30kg |
| 11.Production Capacity: | 1000,000m Per month. |
| 12.Payment Term: | (1) L/C,T/T,D/P,D/A,PAYPAL,,MONEY GRAM |
(2) We also can provide a monthly statement payment services. |
Contact Person: Mr. Qiu
Tel: +8613795230939
