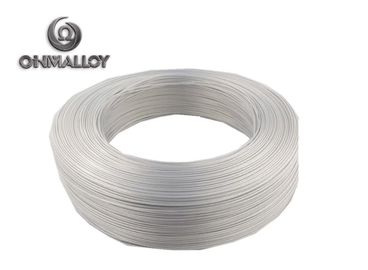

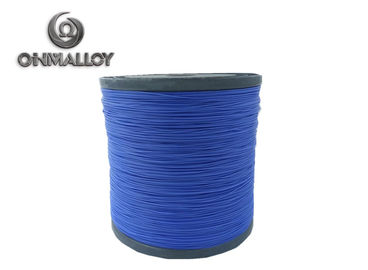

Tinned Copper Insulated Resistance Wire Solid Conductor Type ISO Certification

Tinned Copper Insulated Resistance Wire Solid Conductor Type ISO Certification
Tinned Copper Insulated Resistance Wire Solid Conductor Type ISO Certification Tinned Copper Insulated Resistance Wire Solid Conductor Type ISO Certification

Large Image :  Tinned Copper Insulated Resistance Wire Solid Conductor Type ISO Certification Get Best Price

Product Details:
Place of Origin: China(Shanghai)
Brand Name: OHMALLOY
Certification: ISO,Rohs
Model Number: insulated wire
Payment & Shipping Terms:
Minimum Order Quantity: 100,meters
Price: negotiable
Packaging Details: in coil
Delivery Time: 7-10 days
Payment Terms: L/C, T/T, , MoneyGram
Supply Ability: 500000 meter per month
Detailed Product Description
Conductor Material: Tin-coated Copper Type: Insulated
Application: Heating Conductor Type: Solid
Standard: GB/T 1234-2012
High Light:

silicone rubber insulated wire

,

high temperature insulated wire

High temperature FEP/PFA tinned copper insulated wire heating cable





Conductor material: Tin-coated Copper

Material Chemical composition (%)
Ni Fe Cr Cu Mn
Copper       100%





Heating cable structure



Conductor size Tin-coated Copper
Insulation layer /PFA
OD of cable 1.9mm
Weight/meter 0.75kg/100meter



Insulation material:

Long-term max standing temperature 200℃
Shor-term max standing temperature 250℃



Insulation material: FEP

Long-term max standing temperature 200℃
Shor-term max standing temperature 250℃



Insulation material: PFA

Long-term max standing temperature 260℃
Shor-term max standing temperature 290℃





Remarks: The size can be changed if special requirement.

The thickness of insulation also can be adjusted by special requirement. We can do insulation thickness 0.2mm to 2.5mm



Available conductor alloy grade as follows:



NiCr60/15 CuNi44 CuNi23 OCr25Al5 OCr21Al6
Nickel 200 Nickel 201 Nickel 212 Tinned copper wire CuNi6
CuNi10 NiCr35/20 NiCr AA Inconel 600 Inconel 625





Available color: Black, white, green, red, yellow, blue
