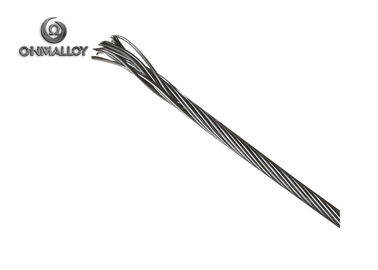

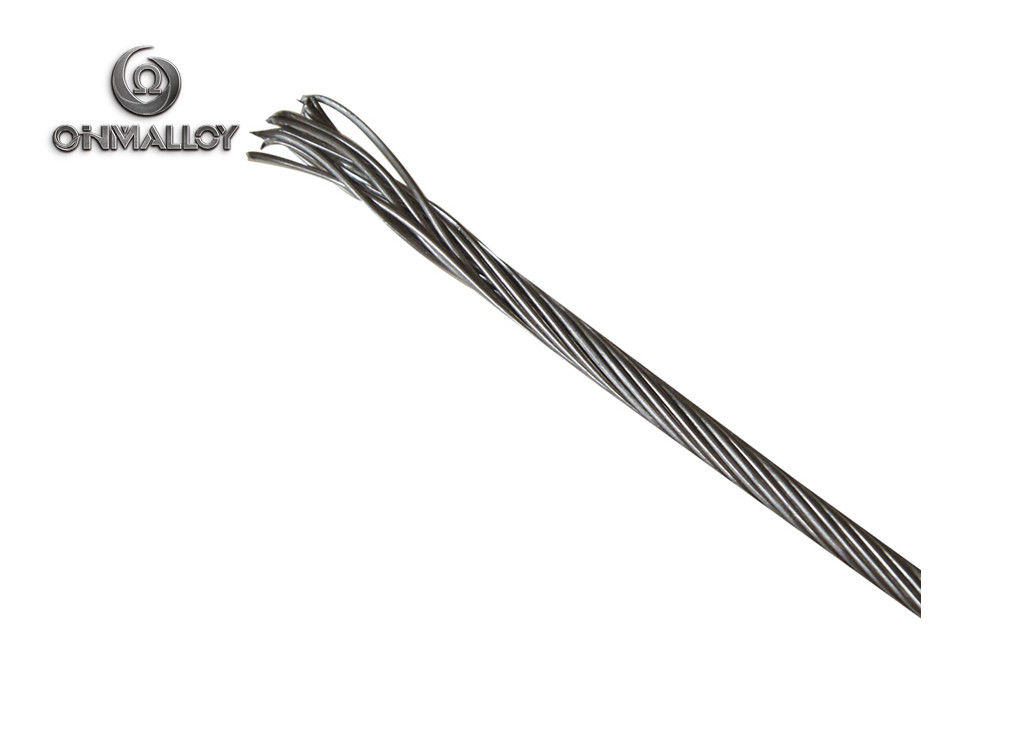

Stranded Nichrome Heating Wire 500m / Roll For Heater Pad High Performance

Stranded Nichrome Heating Wire 500m / Roll For Heater Pad High Performance
Stranded Nichrome Heating Wire 500m / Roll For Heater Pad High Performance Stranded Nichrome Heating Wire 500m / Roll For Heater Pad High Performance

Large Image :  Stranded Nichrome Heating Wire 500m / Roll For Heater Pad High Performance Get Best Price

Product Details:
Place of Origin: China(Shanghai)
Brand Name: OHMALLOY
Certification: ISO9001-2015 ROHS
Model Number: TE-2080-6
Payment & Shipping Terms:
Minimum Order Quantity: 500 Meter
Price: negotiable
Packaging Details: 500m/roll
Delivery Time: 3-5 days
Payment Terms: , L/C, T/T, D/P, D/A
Supply Ability: 5000 Tons/ year
Detailed Product Description
Type: NiCr80/20 Size: 0.523mm*18+0.574mm*1
Material: 80% Ni+20% Cr Shape: Wire
Application: Ceramic Pad Heater OD Of Stranded Wire: 2.67mm
Package: 500m/roll
High Light:

nichrome wire

,

nichrome resistance wire

,

nickel chromium resistance wire

0.523mm*18+0.574mm*1 Stranded Nichrome(Ni80Cr20) Heating Wire for Heater pad



Stranded nichrome heating wire is mainly used for making heater pad with ceramic,and heating element repair kit etc.



Generally,the conductor will be Ni80Cr20,Ni60Cr15,and the wire comes from 7,19,37 multi-strands:

7=1+6

19=1+6+12

37=1+6+12+18



The conductor can be also other nichrome,FeCrAl,CuNi alloy,and the size can be custom produced.

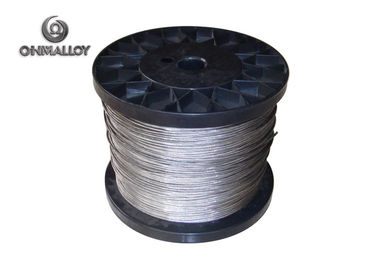

Our Standard material,DIN 250 consist of 500meters per spool:

Alloy Nominal
total diam.(mm)
Strand Construction (mm) Resistance
(Ohms/M)
No. of strands x size King wire size
Ni80Cr20 2.8 19*0.55 0.55 0.26
Ni80Cr20 2.67 19*0.523 0.574 0.28
Ni80Cr20 2.76 37*0.385 0.508 0.27
Ni60Cr15 2.76 19*0.523 0.574 0.29



The Properties:

Properties/Grade Cr20Ni80 Cr15Ni60
Main Chemical
Composition(%)
Ni Rest 55.0-61.0
Cr 20.0-23.0 15.0-18.0
Fe ≤ 1.0 Rest
Max Continuous Service
Temperature(℃)
1200 1150
Resistivity at 20℃(μ Ω · m) 1.09 1.12
Density(g/cm3) 8.4 8.2
Thermal Conductivity(KJ/m· h· ℃) 60.3 45.2
Coefficient of Thermal
Expansion(α × 10-6/℃)
18 17
Specific Heat Capacity(J/g.K) 0.46 0.46
Thermal Conductivity at 20℃(W/m.K) 15 13
Melting Point(℃) 1400 1390
Elongation(%) > 20 > 20
Micrographic Structure austenite austenite
Magnetic Property Non magnetic Non magnetic

Heater Core Wire 19 strands Cr20Ni80

Material Available:

NiCr80/20, NiCr60/15, Nickel 212, NiMn2, CuNi44 or others





Heater Core Wire 19 strands Cr20Ni80

Heater Core Wire 19 strands Cr20Ni80

Heater Core Wire 19 strands Cr20Ni80Heater Core Wire 19 strands Cr20Ni80
