Product Details:
Payment & Shipping Terms:
|
| Material: | Hastelloy C-Hastelloy C-276 | Diameter: | 0.1mm |
|---|---|---|---|
| Package: | Be Packed Into Cartons,then Pallet And Case | Application: | Corrosion Resistance |
| Surface: | Bright,soft | ||
| High Light: | nichrome wire,nichrome resistance wire,nickel chromium resistance wire |
||

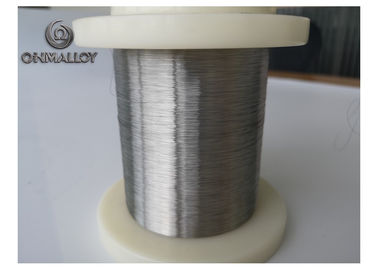

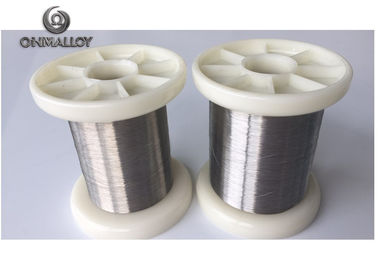

0.1mm High quality NiCrMo Hastelloy C-276/INCONEL Alloy C-276 wire
Common name:C-276,INCONEL Alloy C-276,HC-276,Hastelloy C-276,UNS N10276,W.-Nr. 2.4819,ATI C-276,Nicrofer 5716 hMoW-Alloy C-276,NAS NW276
HASTELLOY C276 is a Nickel-chromium-molybdenum wrought alloy,the content of Silicon and Carbon is very less that is considered as the most versatile corrosion resistant alloy.This alloy is resistant to the formation of grain boundary precipitates in the weld heat-affected zone, thus making it suitable for most chemical process applications in an as welded condition. Alloy C-276 also has excellent resistance to pitting, stress-corrosion cracking and oxidizing atmospheres up to 1038℃. Alloy C-276 has exceptional resistance to a wide variety of chemical environments.
Characteristics
This alloy is one of the few alloys resistant to wet chloride gas, hypochlorite and chlorine dioxide solutions,it has exceptional resistance to strong solutions of oxidizing salts, such as ferric and cupric chlorides.And it is not prone to grain boundary precipitation in the as welded condition and therefore suitable for many chemical process applications.
Chemical content
| Chemical Content(%) | ||||||||
| Ni | Cr | Mn | Mo | C | Si | Fe | ||
| Max% | Bal. | 16.5 | 1.0 | 17.0 | 0.01 | 0.08 | 7.0 | |
| Min% | 14.5 | 15.0 | 4.0 | |||||
Mechanical properties
Density ((g/cm3)):8.9
Melting point (℃):1325-1370
Magnetic properties:non-magnetic
Tensile Strength(Mpa):≥690
Yield strength(Mpa):≥275
Elongation(%):≥40%
Hardness(HB):≤100
Applications
Digesters and bleach plants in the paper industry.
Components exposed to sour gas.
Equipment for flue-gas desulfurisation plants.
Evaporators, heat exchangers, filters and mixers used in sulfuric acid environments.
Sulfuric acid reactors.
Organic chloride process equipment.
Equipment for processes utilizing halide or acid catalysts.
