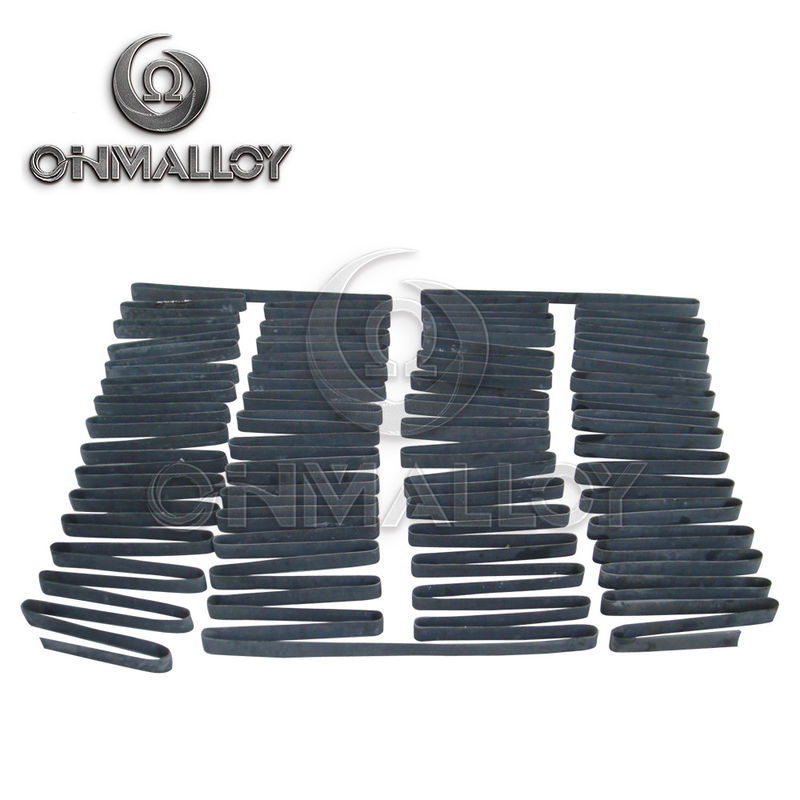

Furnace FeCrAl Alloy FeCr23Al5 Resistance Band Strip For Heating Elements

Furnace FeCrAl Alloy FeCr23Al5 Resistance Band Strip For Heating Elements
Furnace FeCrAl Alloy FeCr23Al5 Resistance Band Strip For Heating Elements Furnace FeCrAl Alloy FeCr23Al5 Resistance Band Strip For Heating Elements

Large Image :  Furnace FeCrAl Alloy FeCr23Al5 Resistance Band Strip For Heating Elements Get Best Price

Product Details:
Place of Origin: China
Brand Name: Ohmalloy
Certification: ISO
Model Number: Ohmalloy135
Payment & Shipping Terms:
Minimum Order Quantity: 100 kg
Packaging Details: wooden case or pallet
Delivery Time: 20-25 days
Payment Terms: L/C, T/T, D/A, D/P,
Supply Ability: 10 000 kg per month
Detailed Product Description
Surface: Dark Condition: Soft
Ti: 0.1-0.35% Name: Fechral / FeCr23Al5
Standard: GOST 10994- 74 Package: Spool+ Carton+ Wooden Case Or Pallet
Size: 1.2 X 15 Mm
High Light:

heating wire

,

high temp alloys

Furnace FeCrAl Alloy FeCr23Al5 Resistance Band Strip For Heating Elements





OhmAlloy135



(Common Name:0Cr23Al5,Kanthal D, Kanthal, Alloy 815, Alchrome DK, Alferon 901, Resistohm 135,Aluchrom S, Stablohm 812)





OhmAlloy135 is a iron-chromium-aluminium alloy (FeCrAl alloy) characterized by high resistance, low coefficient of electric resistance, high operating temperature, good corrosion resistance under high temperature.It is suitable for use at temperatures up to 1250°C.



Typical applications for OhmAlloy135 are used in home appliances and industrial furnace,and kinds of elements in heaters and dryers.

Normal composition%

C P S Mn Si Cr Ni Al Fe Other
Max
0.06 0.025 0.025 0.70 Max 0.6 20.5~23.5 Max 0.60 4.2~5.3 Bal. -



Typical Mechanical properties(1.0mm)

Yield strength Tensile Strength Elongation
Mpa Mpa %
485 670 23



Typical Physical properties

Density (g/cm3) 7.25
Resistivity at 20(мкОм*м) 1.3-1,4
Conductivity coefficient at 20 (WmK) 13













Coefficient of thermal expansion

Temperature Coefficient of Thermal Expansion x10-6/℃
20 - 1000 15





Specific heat capacity
Temperature 20
J/gK 0.46



Melting point (℃) 1500
Max continuous operating temperature in air (℃) 1250
Magnetic properties non-magnetic







Style of supply

Alloys Name Type Dimension
OhmAlloy135W Wire D=0.03mm~8mm
OhmAlloy135R Ribbon W=0.4~40mm T=0.03~2.9mm
OhmAlloy135S Strip W=8~250mm T=0.1~3.0mm
OhmAlloy135F Foil W=6~120mm T=0.003~0.1mm
OhmAlloy135B Bar Dia=8~100mm L=50~1000mm




Furnace FeCrAl Alloy FeCr23Al5 Resistance Band Strip For Heating Elements 0



Fechral can most likely be attributed to metals with a very high electrical resistance, which explains its widespread use in electrical products associated with high temperatures. This article describes in detail the physical properties of the application area, various brands of fechral and types of goods in which metal is used.


Fechral itself is an alloy consisting of elements such as chrome aluminum and iron with a small percentage of nickel of about 0.6 percent. The low content of the latter gives the alloy an undeniable advantage over nichrome making it cheaper. With a melting point of -1500 degrees, the fechral can withstand operating conditions and at 1400 degrees, plus, the resistivity is 1.39 μOhm. With a density of 7.21g / cm3, this alloy can be confidently considered a serious competitor to nichrome.


Fechral has a high degree of resistance, which is a distinctive and main useful feature of this alloy. It is also characterized by heat resistance and is not prone to corrosion. The alloy is hard and works in conjunction with various materials as well as in aggressive environments and atmospheres. The only weak point of fechral is the presence of iron in its composition, which makes the alloy brittle enough, which in turn complicates the processing of metal to obtain the final product.
