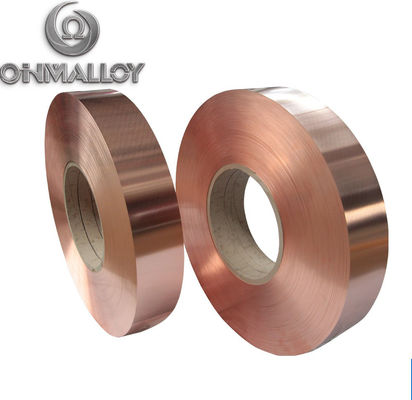

Bright Surface Pure Copper Metal Strips JIS C1100 0.2 X 3mm For Earphone Tape Wire

Bright Surface Pure Copper Metal Strips JIS C1100 0.2 X 3mm For Earphone Tape Wire
Bright Surface Pure Copper Metal Strips JIS C1100 0.2 X 3mm For Earphone Tape Wire Bright Surface Pure Copper Metal Strips JIS C1100 0.2 X 3mm For Earphone Tape Wire

Large Image :  Bright Surface Pure Copper Metal Strips JIS C1100 0.2 X 3mm For Earphone Tape Wire Get Best Price

Product Details:
Place of Origin: China(Shanghai)
Brand Name: OHMALLOY
Certification: ISO,Rohs
Model Number: C11000
Payment & Shipping Terms:
Minimum Order Quantity: 20
Price: negotiable
Packaging Details: in roll and woodencase outside
Detailed Product Description
Thickness: 0.005mm~1mm Width: 5mm~600mm
Cu (Min): 99.90 Surface: Bright,Soft
Alloy Or Not: Not Shape: Strip
Color: Red Starandart: ASTM&JIS
High Light:

pure tantalum foil

,

titanium foil

                             Pure Copper Strip JIS C1100 0.2x3mm For Earphone tape wire ,Terminal and connecting Wire

Product Description

Pure Copper Foil C11000/Cu-ETP Strip

C11000 - also known as Electrolytic-Tough-Pitch (ETP). This is the most common copper. It is universal for electrical applications. ETP has a minimum conductivity rating of 100% IACS and is required to be 99.9% pure. It has 0.02% to 0.04% oxygen content (typical). Most ETP sold today will meet or exceed the 101% IACS specification. As with OF copper, silver (Ag) content is counted as copper (Cu) for purity purposes.



Standard: JIS C1100, ASTM C11000

Chemical Composition (%)
Cu 99.9 min O2 0.02-0.0045





Physical Properties
Density g/cm3 8.94 Coefficient of thermal expansion 10-6 /℃ 20/℃-100/℃ 17.7
Electrical conductivity IACS%(20℃) 99 Thermal Conductility W/(m*k) 390
Modulus of elasticity (KN/mm2) 118



Temper Tensile strength (RM, Mpa) Yield Strength (Rp0.2 Mpa) Elongation A50 Vickers Hardness (HV)
0 195 min - 35 min 60 max
1/4 H 215-255 - 25 min 60-80
1/2 H 255-315 - 15 min 80-100
H 290 min - 5 min 100-130
EH - - - -



Applications for copper foil
1) Electric and electric springs,switches
2) Lead frames
3) Connectors and oscillation reeds
3) PCB field
4) Communication cable
5) Cable armoring
6) Mobile phone main board
7) Ion battery production lamination with PI film
8) PCB collector (electrode backing) materials

Bright Surface Pure Copper Metal Strips JIS C1100 0.2 X 3mm For Earphone Tape Wire 0

Features for thin copper foil
1) Good viscosity,Cold resistance
2) Mechanical resistance,Moisture resistant
3) High thermal conductivity,Oil & acid resistant
4) Ageing-resistant
5) Flame retardant
6) Easy to tear apart

Copper Coil For Cu-Etp strip Copper T2 strip Name C1100 Copper Coil

Copper Coil For Cu-Etp strip Copper T2 strip Name C1100 Copper Coil
Production Process



Machine Product Foil Cu-Etp strip Copper T2 strip Chinal Name T2

Machine Product Foil Cu-Etp strip Copper T2 strip Chinal Name T2

Testing Equirement



Power Cu-Etp strip Copper T2 strip Shape Foil

Power Cu-Etp strip Copper T2 strip Shape Foil

Copper Coil For Cu-Etp strip Copper T2 strip Surface Bright

Copper Coil For Cu-Etp strip Copper T2 strip Surface Bright

Package



Machine Product Foil Cu-Etp strip Copper T2 strip Color Copper-clored

Machine Product Foil Cu-Etp strip Copper T2 strip Color Copper-clored

Power Cu-Etp strip Copper T2 strip Certification RoHS

Power Cu-Etp strip Copper T2 strip Certification RoHS



Shipment



Copper Coil For Cu-Etp strip Copper T2 strip Price Term CIF CFR FOB Ex-Work

Copper Coil For Cu-Etp strip Copper T2 strip Price Term CIF CFR FOB Ex-Work
