Product Details:
Payment & Shipping Terms:
|
| Surface: | Oxidized | Condition: | Soft |
|---|---|---|---|

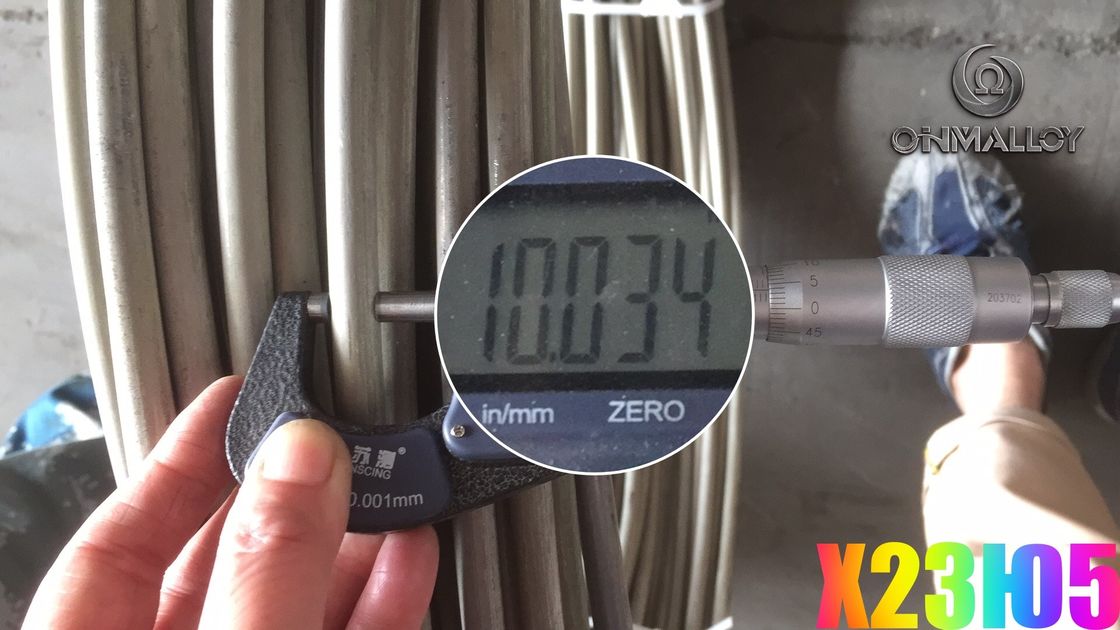

| Size: | 10mm | Shape: | Coil |
| Standard: | ГОСТ 10994- 74 | Стандарт: | ГОСТ 10994- 74 |
| High Light: | heating wire,high temp alloys |
||
OhmAlloy135
(Common Name: 0Cr23Al5,Kanthal D, Kanthal, Alloy 815, Alchrome DK, Alferon 901, Resistohm 135,Aluchrom S, Stablohm 812)
OhmAlloy135 is a iron-chromium-aluminium alloy (FeCrAl alloy) characterized by high resistance, low coefficient of electric resistance, high operating temperature, good corrosion resistance under high temperature.It is suitable for use at temperatures up to 1250°C.
Typical applications for OhmAlloy135 are used in home appliances and industrial furnace,and kinds of elements in heaters and dryers.
Style of supply
| Alloys Name | Type | Dimension | ||
| OhmAlloy135W | Wire | D=0.03mm~8mm | ||
| OhmAlloy135R | Ribbon | W=0.4~40mm | T=0.03~2.9mm | |
| OhmAlloy135S | Strip | W=8~250mm | T=0.1~3.0mm | |
| OhmAlloy135F | Foil | W=6~120mm | T=0.003~0.1mm | |
| OhmAlloy135B | Bar | Dia=8~100mm | L=50~1000mm | |
| C | P | S | Mn | Si | Cr | Ni | Al | Fe | Other |
| Max | |||||||||
| 0.06 | 0.025 | 0.025 | 0.70 | Max 0.6 | 20.5~23.5 | Max 0.60 | 4.2~5.3 | Bal. | - |
| Yield strength | Tensile Strength | Elongation |
| Mpa | Mpa | % |
| 485 | 670 | 23 |
| Density (g/cm3) | 7.25 |
| Resistivity at 20℃(мкОм*м) | 1.3-1,4 |
| Conductivity coefficient at 20℃ (WmK) | 13 |
| Coefficient of thermal expansion | |
| Temperature | Coefficient of Thermal Expansion x10-6/℃ |
| 20 ℃- 1000℃ | 15 |
| Specific heat capacity | |
| Temperature | 20℃ |
| J/gK | 0.46 |
| Melting point (℃) | 1500 |
| Max continuous operating temperature in air (℃) | 1250 |
| Magnetic properties | non-magnetic |
Temperature Factor of Electrical Resistivity
| 20℃ | 100℃ | 200℃ | 300℃ | 400℃ | 500℃ | 600℃ | 700℃ | 800℃ | 900℃ | 1000℃ | 1100℃ | 1200℃ | 1300℃ |
| 1 | 1.002 | 1.007 | 1.014 | 1.024 | 1.036 | 1.056 | 1.064 | 1.070 | 1.074 | 1.078 | 1.081 | 1.084 | - |
Any questions please feel free to contact with us!
