Type N bare thermocouple wire NiCrMg wire for sensor inert or dry reducing atmospheres

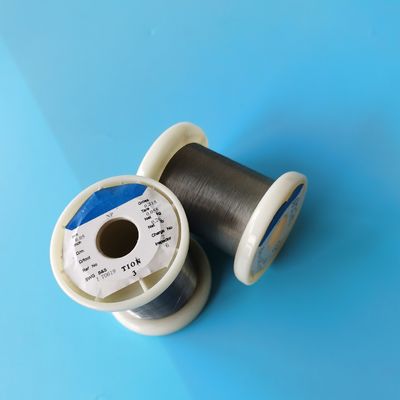

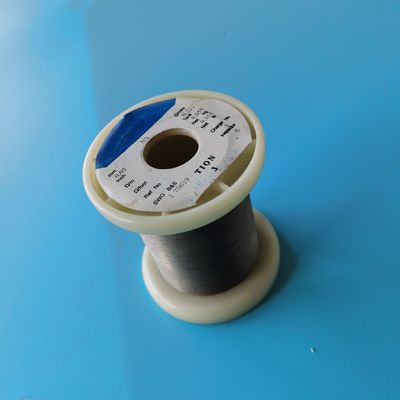

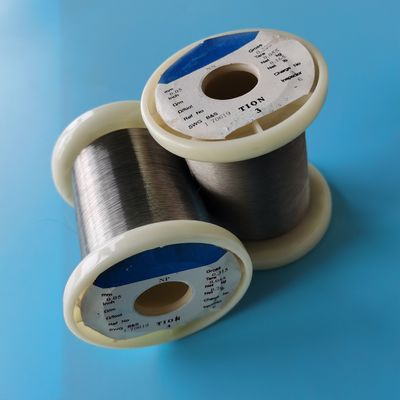

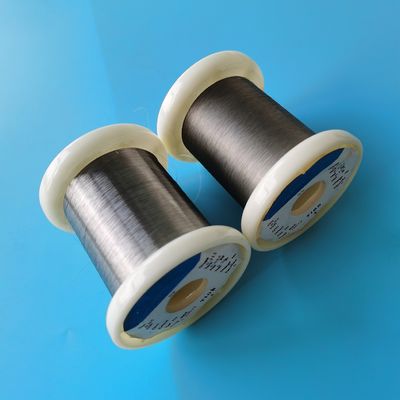

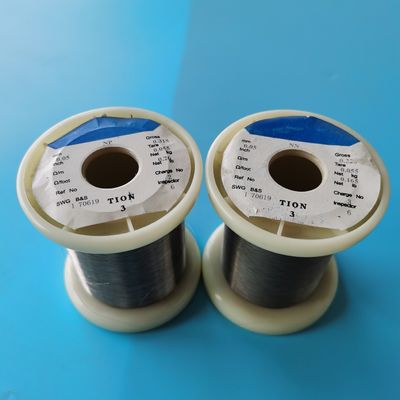

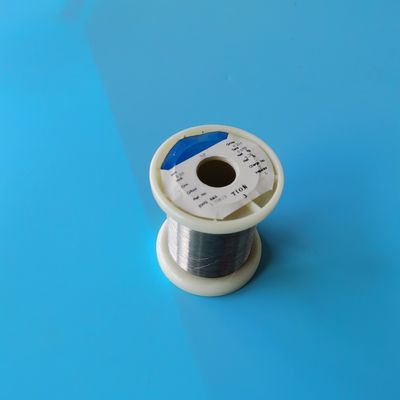

Large Image : Type N bare thermocouple wire NiCrMg wire for sensor inert or dry reducing atmospheres Get Best Price

Product Details:

Place of Origin:	CHINA
Brand Name:	OHMALLOY
Certification:	ISO CE
Model Number:	Type N

Payment & Shipping Terms:

Minimum Order Quantity:	1kg
Price:	USD 35/kg
Packaging Details:	spool
Delivery Time:	15WORKDAYS
Payment Terms:	L/C, T/T,
Supply Ability:	5000kg/month

Contact Now

Detailed Product Description

Application:	Temperature Sensors,thermocouple,temperature Inspector	Type:	Type N
Surface:	Bright	Size:	0.02mm-2.0mm
Material:	NiCrSi Vs.NiCrMg	Color:	Bright And Soft
Highlight:	NiCrMg Bare Thermocouple Wire , Oxidizing Bare Thermocouple Wire , Platinum Bare Thermocouple Wire

Type N(NiCrMg) Bare Wire for oxidizing, inert or dry reducing atmospheres

TYPE N (NiCrSi Vs.NiCrMg) is used in oxidizing, inert or dry reducing atmospheres. Exposure to vacuum limited to short time periods. Must be protected from sulfurous and marginally oxidizing atmospheres. Reliable and accurate at high temperatures.

1. Chemical Composition

Material	Chemical composition (%)
Material	Ni	Cr	Si	Mg	Al
NP(NiCrSi)	bal	13.7-14.7	1.2-1.6	<0.01
NN(NiCrMg)	bal	<0.02	4.2-4.6	0.5~1.5

2. Physical properties and Mechanical properties

Material	Density(g/cm3)	Melting point℃)	Tensile Strength (Mpa)	Volume resistivity (μΩ.cm)	Elongation rate (%)
NP(NiCrSi)	8.5	1410	>620	100.0 (20℃)	>30
NN(NiCrMg)	8.6	1340	>550	33.0(20℃)	>35

3. EMF Value range at different temperature

Material	EMF value Vs Pt (μV)
Material	100℃	200℃	300℃	400℃	500℃	600℃
NP(NiCrSi)	1755~1813	3910~3976	6313~6383	8880~8959	11552~11654	14307~14433
NN(NiCrMg)	975~1005	1954~1986	2975~3011	4035~4075	5120~5170	6212~6274

EMF value Vs Pt (μV)
700℃	800℃	900℃	1000℃	1100℃
17129~17275	20010~20178	22951~23139	25943~26149	28972~29194
7288~7362	8318~8402	9281~9373	10159~10261	10948~11060
