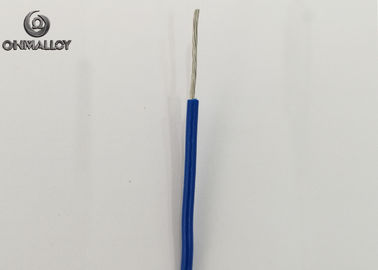

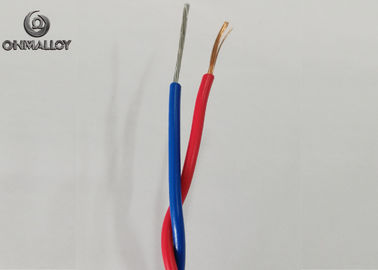

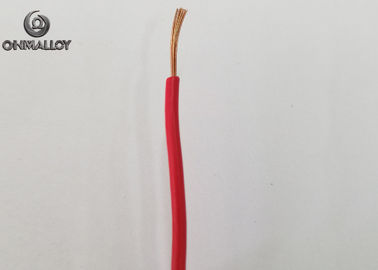

PVC Stranded K Type Thermocouple Wire With Stranded Conductor Custom Service

PVC Stranded K Type Thermocouple Wire With Stranded Conductor Custom Service
PVC Stranded K Type Thermocouple Wire With Stranded Conductor Custom Service PVC Stranded K Type Thermocouple Wire With Stranded Conductor Custom Service PVC Stranded K Type Thermocouple Wire With Stranded Conductor Custom Service

Large Image :  PVC Stranded K Type Thermocouple Wire With Stranded Conductor Custom Service Get Best Price

Product Details:
Place of Origin: China
Brand Name: OHMALLOY/OEM
Certification: ISO9001
Model Number: SP-T-PVC-0.5R-ANSI
Payment & Shipping Terms:
Minimum Order Quantity: 500 meter
Packaging Details: Coil style
Delivery Time: 5-15 working days
Payment Terms: L/C, T/T, , MoneyGram,Paypal
Supply Ability: 50000 meter per month
Detailed Product Description
Name: Thermocouple Extension Cable Type T ANSI Standard Inner Wire: + Copper -Constantan
Insulation Material: PVC(105 Degree Celsius) Conductor Type: Stranded
Color Code: ANSI Service: Customizing As Customer Requirement
High Light:

k type thermocouple cable

,

thermocouple bare wire

,

thermocouple extension wire

Thermocouple Extension Cable Type T ANSI Standard High Temperature PVC Stranded Type





In actual temperature measurement, usually there are long measuring distance with the measuring device, a thermocouple compensation wire is generated to compensate the temperature difference caused by the temperature change between the measuring device and the thermocouple connecting piece.



The compensation cable has the following advantages: improving thermocouple temperature measurement line physical properties and mechanical properties; improving the measurement line flexibility and making the connection convenient by using multi-strand core or small-diameter compensation wire; easy to shield external interference; reducing measuring lines cost.



Thermocouple Cable Grade

A:Extension Grade Cable

Whose wire composition is totally as the same as the thermocouple wire, remarked by the letter“X”after the thermocouple symbol number, such as“KX”“JX”“TX”

B:Compensation Grade Cable

Whose wire composition is different from the thermocouple wire, but its wire electromotive force (EMF) value is the same as thermocouple wire only at 0-100℃ or 0-200℃. It remarked by the letter“C”after the thermocouple symbol number, such as“KC”“JC”“TC”

  1. For cost consideration, when the tested temperature under 200℃, compensation grade cable is preferred. But compensation grade cable will occur enormous tested temperature value deviation if the tested temperature above 200℃. The higher the tested temperature, the greater deviation be.
  2. For compensation grade cable, the max testing temperature is less than 200℃, the bigger the cable, the smaller the signal loss.
  3. Extension cable and compensation cable comparison:



    Performance

Extension Grade Compensation Grade

Material

Same as thermocouple Different from thermocouple
EMF Value Feature Same as the thermocouple’s at certain temperature range Same as the thermocouple’s
Deviation Curve Nonlinear, varies with temperature

  Linear

Working Temperature Range Limited(usual at 100℃) Unlimited(depend on insulation material temperature bearing)
Line Resistance Low resistance High resistance
Compensation Contact Interference Different contactor material may cause interference

None

Accuracy

Low

High

Price

Low

High(about 1-2 times higher)



PVC Stranded K Type Thermocouple Wire With Stranded Conductor Custom Service 0





For the extension/compensation cable, the basic structure is conductor and insulation.

To increase its temperature bearing ability and to install easily, jacket is applicable.



In the working environment, there are too much factors will interference the EMF signal, therefore shield layer is practical way to prevent the cable from interference caused by complex environment.
