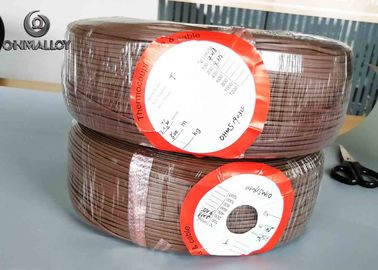

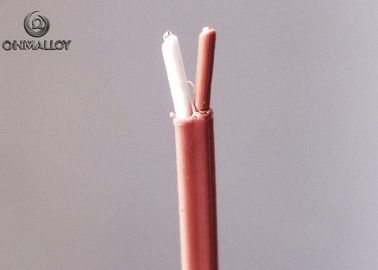

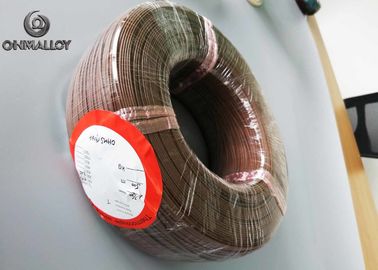

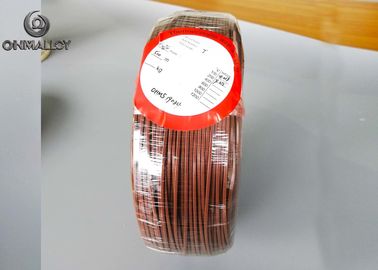

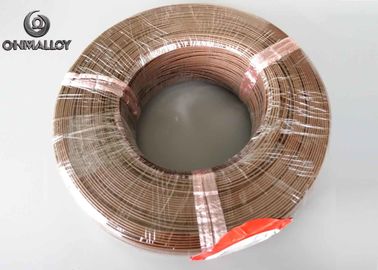

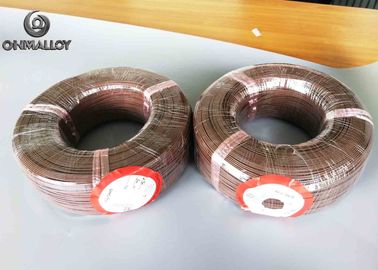

PFA Insulated Type T Thermocouple Cable Class I Accuracy High Stability
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | PFA Insulated Type T Extension Cable | Conductor Type: | + Copper -Constantan |
|---|---|---|---|
| Size: | 0.22R（7/0.2mm） | Insulation: | PFA(260 Degree Celsius) |
| Application: | Thermocouple Extension Cable | Certification: | ISO9001 |
| Highlight: | k type thermocouple cable,thermocouple bare wire,thermocouple extension wire |
||
PFA Insulated Type T Extension Cable American Color Standard Class I Accuracy
TYPE T (Copper vs Constantan) is used or service in oxidizing, inert or reducing atmospheres or in vacuum. It is highly resistant to corrosion from atmospheric moisture and condensation and exhibits high stability at low temperatures. It is the only type with limits of error guaranteed for cryogenic temperatures.
1. Chemical Composition
| Material | Chemical composition (%) | ||||
| Ni | Cu | Si | Iron | Al | |
| TP(Copper) | 100 | ||||
| TN(Constantan) | 45 | 55 | |||
2. Physical Properties and Mechnical Properties
|
Material |
Density(g/cm3) |
Melting point(℃) |
Tensile Strength(Mpa) |
Volume resistivity(μΩ.cm) |
Elongation rate (%) |
| TP(Copper) | 8.9 | 1084 | >196 | 1.71(20℃) | >30 |
| TN(Constantan) | 8.8 | 1220 | >390 | 49.0(20℃) | >25 |
For the extension/compensation cable, the basic structure is conductor and insulation.
To increase its temperature bearing ability and to install easily, jacket is applicable.
In the working environment, there are too much factors will interference the EMF signal, therefore shield layer is practical way to prevent the cable from interference caused by complex environment.
ReF. The Short Name for Materials
| Type | Insulation material | CODE | Inner Shielding | CODE | JACKET | CODE |
| K | FEP | FP | FEP | FP | ||
| T | PFA | FA | Al foil | AL | PFA | FA |
| E | PVC 70℃ | LP | copper wire | CU | PVC 70℃ | LP |
| J | PVC 105℃ | HP | Tinned copper | TC | PVC 105℃ | HP |
| N | Fiberglass 400℃ | BL | Nickel plated copper | NC | Fiberglass 400℃ | BL |
| SC | Fiberglass600℃ | BM | Silver plated copper | AC | Fiberglass600℃ | BM |
| Fiberglass700℃ | BH | Fiberglass700℃ | BH | |||
| MICA FIBER 650℃ | MA | |||||
| KCA | Vitreous Silica 800℃ | VS | SS 304 wire | SS | Vitreous Silica 800℃ | VS |
| KCB | Silica fiber1000℃ | SV | Inconel 600 wire | 600 | Silica fiber1000℃ | SV |
| RTD | Ceramic fiber1200℃ | CF | Inconel 625 wire | 625 | Ceramic fiber1200℃ | CF |
| PTFE | PT | PTFE | PT | |||
| ETFE | ET | ETFE | ET | |||
| KAPTON | KP | KAPTON | KP | |||
| Silicone rubber | SR | Silicone rubber | SR | |||
| Rubber | RU | Rubber | RU | |||
| PE | PE | PE | PE |
