Chemical Machinery Pure Metals Micro Wire For Special Light Anti Oxidation

Chemical Machinery Pure Metals Micro Wire For Special Light Anti Oxidation
Chemical Machinery Pure Metals Micro Wire For Special Light Anti Oxidation Chemical Machinery Pure Metals Micro Wire For Special Light Anti Oxidation Chemical Machinery Pure Metals Micro Wire For Special Light Anti Oxidation

Large Image :  Chemical Machinery Pure Metals Micro Wire For Special Light Anti Oxidation Get Best Price

Product Details:
Place of Origin: China
Brand Name: Ohmalloy
Certification: ISO,Rohs
Model Number: N201/N200
Payment & Shipping Terms:
Minimum Order Quantity: 2
Packaging Details: in spool
Delivery Time: 5~8working days
Supply Ability: 500T/Month
Detailed Product Description
Purity Of Ni: 99.9%/99.5%(Min) Purity Of C: <0.01%/0.1%
Surface: Bright,Soft Size: 0.025 To 10mm
Package: In Spool Name: Pure Metals
High Light:

pure tantalum foil

,

titanium foil

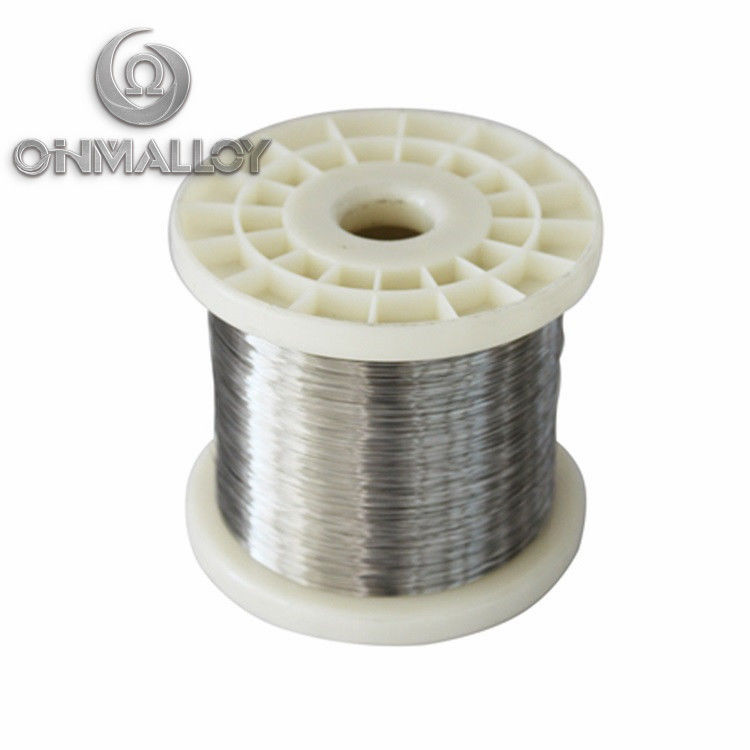

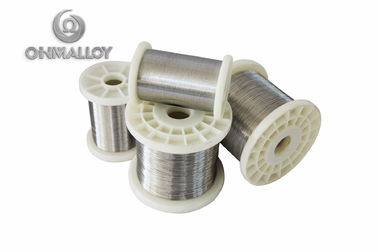

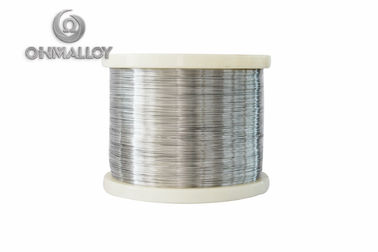

Pure Nickel Wire Purity>99.9% 0.04mm UNS N02201/N02200 Micro Wire For Special light



OHMALLOY 201
Common Name: N4, Pure Nickel, Nickel 201


OHMALLOY201 are made by advanced vacuum melting process.and by forging,rolling,annealing and drawing. It is used in electric apparatus,lead for lamp and chemical machinery. Pure Nickel strip and foil, mainly used in batteries, electronic parts, some special lamp

1). Chemical composition(%)

Grade C Si Mn P S Ni+Co Cu Fe
Nickel 201 <0.01 <0.35 <0.35   <0.01 >99.9 <0.25 <0.40


2. Physical properties



Grade
Density (g/cm3) Melting Range
(ºC)
Curie point
(ºC)
Volume resistivity (μΩ.cm) Thermal conductivity (W/m. ºC)
Nickel 201 8.89 1435-1446 360 8.5(20ºC) 79.3(20ºC)


3). Mechnical properties



FORM

Yield Strength (Mpa)

Tensile Strength (Mpa)

Elongation (%)

Hardness (RB)

Bar
Hot-finished 105-310 60-85 55-35 45-80
Cold-drawn,annealed 105-210 55-75 55-40 75-98

Strip
Hard 480-795 620-895 15-2 >90
Annealed 105-210 380-580 55-40 <70

Wire
Annealed 105-345 380-580 50-30
No.1 Temper 275-520 485-655 40-20
Spring Temper 725-930 860-1000 15-2

2. Specification
Strip:Thickness: 0.02mm to 3.0mm ,Width: 1.0mm to 250mm
Wire:Diameter: 0.025mm to 3.0mm
Sheet/Coil:Thickness:0.002-0.125mm
Width in coil:6.00mm max
In plate and straight lengths:12.00mm max

3. Usage
It is used in electric apparatus,lead for lamp and chemical machinery. Pure Nickel strip and foil, mainly used in batteries, electronic parts, some special lamp.

4. Features
Stable performance;Anti-oxidation;Corrosion resistance;High temperature stability;Excellent coil-forming ability;Uniform and beautiful surface condition without spots.

5. Packing detail
1) Coil (plastic spool) + compressed ply-wooden case + pallet
2) Coil (plastic spool) + carton + pallet

6. Products and services
1). Pass: ISO9001 certification, and SO14001cetification;
2). Fine after-sale services;
3). Small order accepted;
4). Stable properties in high temperature;
5). Fast delivery;
