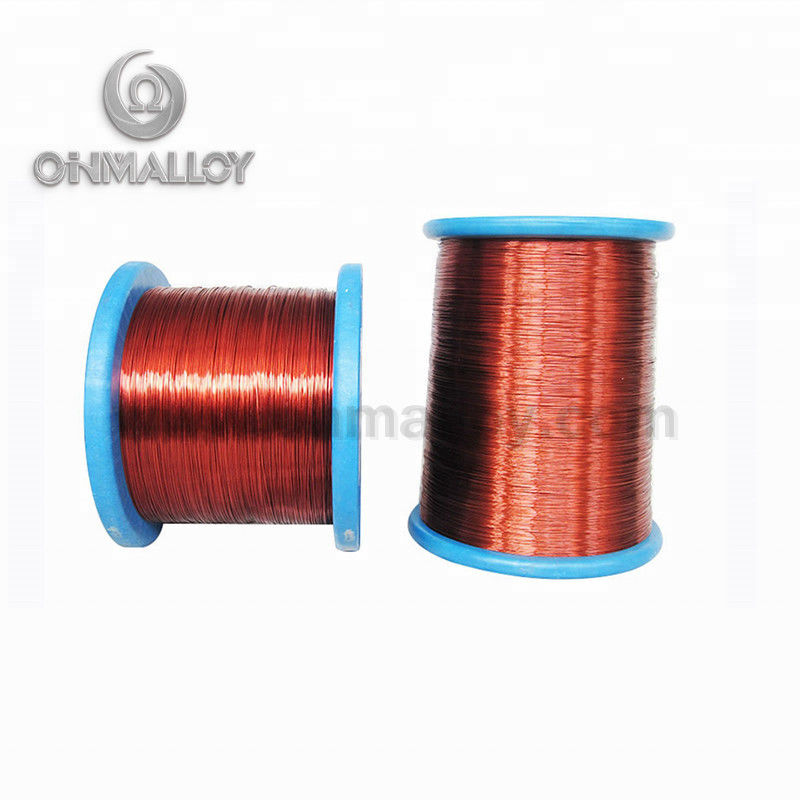

0.02mm Heat Resistant Electrical Wire / Thermal Insulated Wire For Auto Seat

0.02mm Heat Resistant Electrical Wire / Thermal Insulated Wire For Auto Seat
0.02mm Heat Resistant Electrical Wire / Thermal Insulated Wire For Auto Seat 0.02mm Heat Resistant Electrical Wire / Thermal Insulated Wire For Auto Seat 0.02mm Heat Resistant Electrical Wire / Thermal Insulated Wire For Auto Seat

Large Image :  0.02mm Heat Resistant Electrical Wire / Thermal Insulated Wire For Auto Seat Get Best Price

Product Details:
Place of Origin: China
Brand Name: OHMALLOY
Certification: ISO,Rohs
Model Number: CuNi10
Payment & Shipping Terms:
Minimum Order Quantity: 1spool
Packaging Details: By Spool
Delivery Time: 10~15 working days
Payment Terms: L/C, T/T,
Supply Ability: 50T/Spool
Detailed Product Description
Color: Nature,black,red,green,yellow Solid Wire: Karma
Class Grade: 130℃,155℃,180℃,200℃,220℃ OEM: Available
Insulation Type: Enameling Application: OEM
Min Dia.: 0.02mm Resistivity: 0.15
High Light:

silicone rubber insulated wire

,

high temperature insulated wire

Heating Cable Made by Polyester Enameled CuNi10 Heating Wire 0.12mm Alloy WIre For Auto Seat





Product Description

These enameled resistance wires have been broadly used for standard resistors, High /Low Voltage Resistor automobile parts, winding resistors, etc. using the insulation processing best suited for these applications, taking full advantage of the distinctive features of enamel coating.

Furthermore, we will carry out enamel coating insulation of precious metal wire such as silver and platinum wire upon order. Please make use of this production-on-order.



Type of bare alloy wire

Copper-nickel alloy wire, Pure copper, Constantan Wire,CuNi1,CuNi2,CuNi6~CuNi44 Resistance Wire,
Ni-Cr Alloy wire

Pure Nickel NiCr35/20,NiCr70/30,NiCr60/15,

NiCr80/20,NiCr90/10,NiCr AA,Karma.

Fe-Cr-Al Alloy wire

Cr13Al4,Cr21Al4,Cr21Al6,Cr23Al5,Cr25Al5,

Cr21Al6Nb,Cr27Al7Mo2,

Cu-Ni-Mn Alloy wire CuMn12Ni2,CuMn12Ni4,Manganin,NiMn2,
Any copper alloy and nickel alloy is available


Color of enameled insulation:

Red,Green,Yellow,Black,Blue,Nature etc.







Type of insulation

Insulation-enameled Name

Thermal Level

(working time 2000h)

Code Name GB Code ANSI. TYPE
Polyurethane enameled wire 130 UEW QA MW75C
Polyester enameled wire 155 PEW QZ MW5C
Polyester-imide enameled wire 180 EIW QZY MW30C
Polyester-imide and polyamide-imide double coated enameled wire 200

EIWH

(DFWF)

QZY/XY MW35C
Polyamide-imide enameled wire 220 AIW QXY MW81C



Style of supply

Alloys Name Type Dimension
Enameled-W Wire D=0.018mm~3mm
Enameled-R Ribbon W=0.4~24 T=0.01~0.2mm
