| Name: | NiCrC Resistohm Nikrothal 60 Nickel Alloy 0Cr15Ni60 Wire Strip Rod For Tubular Heating | Composition: | Ni 60% Cr15% Fe Balance |
|---|---|---|---|
| Supply State: | Wire/Strip/Rod | Similar Brand: | Chromel C/Nikrothal 60/N6/HAI-NiCr 60/Tophet C/ Resistohm 60/Alloy 675 |
| Density: | 8.2g/cm3 | Electrical Resistivity At 20℃: | 1.12 Ωmm2/m |
| High Light: | 0Cr15Ni60 Wire Strip,8.2g/cm3 Wire Strip |
||
NiCrC Resistohm Nikrothal 60 Nickel Alloy 0Cr15Ni60 Wire Strip Rod For Tubular Heating
Ohmalloy112
(Common Name: Ni60Cr15,Chromel C, Nikrothal 60, N6, HAI-NiCr 60, Tophet C, Resistohm 60, Cronifer II,Electroloy, Nichrome, Alloy C, Alloy 675,Nikrothal 6, MWS-675, Stablohm 675,NiCrC)
OhmAlloy112 is a nickel-chromium alloy (NiCr alloy) characterized by high resistivity, good oxidation resistance ,good form stability and good ductility and excellent weldability. It is suitable for use at temperatures up to 1150°C.
| C | P | S | Mn | Si | Cr | Ni | Al | Fe | Other |
| Max | |||||||||
| 0.08 | 0.02 | 0.015 | 0.60 | 0.75~1.60 | 15.0~18.0 | 55.0~61.0 | Max 0.50 | Bal. | - |
NiCrC Resistohm Nikrothal 60 Typical Mechanical properties(1.0mm)
| Yield strength | Tensile Strength | Elongation |
| Mpa | Mpa | % |
| 370 | 730 | 35 |
NiCrC Resistohm Nikrothal 60 Typical Physical properties
| Density (g/cm3) | 8.2 |
| Electrical resistivity at 20℃(Ωmm2/m) | 1.12 |
| Conductivity coefficient at 20℃ (WmK) | 13 |
| Melting point (℃) | 1390 |
| Max continuous operating temperature in air (℃) | 1150 |
| Magnetic properties | non-magnetic |
| Coefficient of thermal expansion | |
| Temperature | Coefficient of Thermal Expansion x10-6/℃ |
| 20 ℃- 1000℃ | 17 |
| Specific heat capacity | |
| Temperature | 20℃ |
| J/gK | 0.46 |
Temperature Factors Of Electrical Resistivity
| 20℃ | 100℃ | 200℃ | 300℃ | 400℃ | 500℃ | 600℃ |
| 1 | 1.011 | 1.024 | 1.038 | 1.052 | 1.064 | 1.069 |
| 700℃ | 800℃ | 900℃ | 1000℃ | 1100℃ | 1200℃ | 1300℃ |
| 1.073 | 1.078 | 1.088 | 1.095 | 1.109 | - | - |
Style of supply
| Alloys Name | Type | Dimension | ||

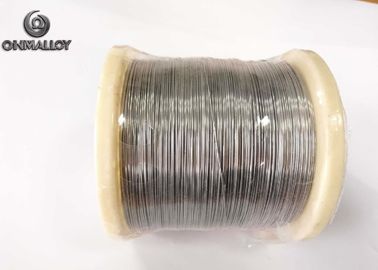

| OhmAlloy112W | Wire | D=0.03mm~8mm | ||
| OhmAlloy112R | Ribbon | W=0.4~40 | T=0.03~2.9mm | |

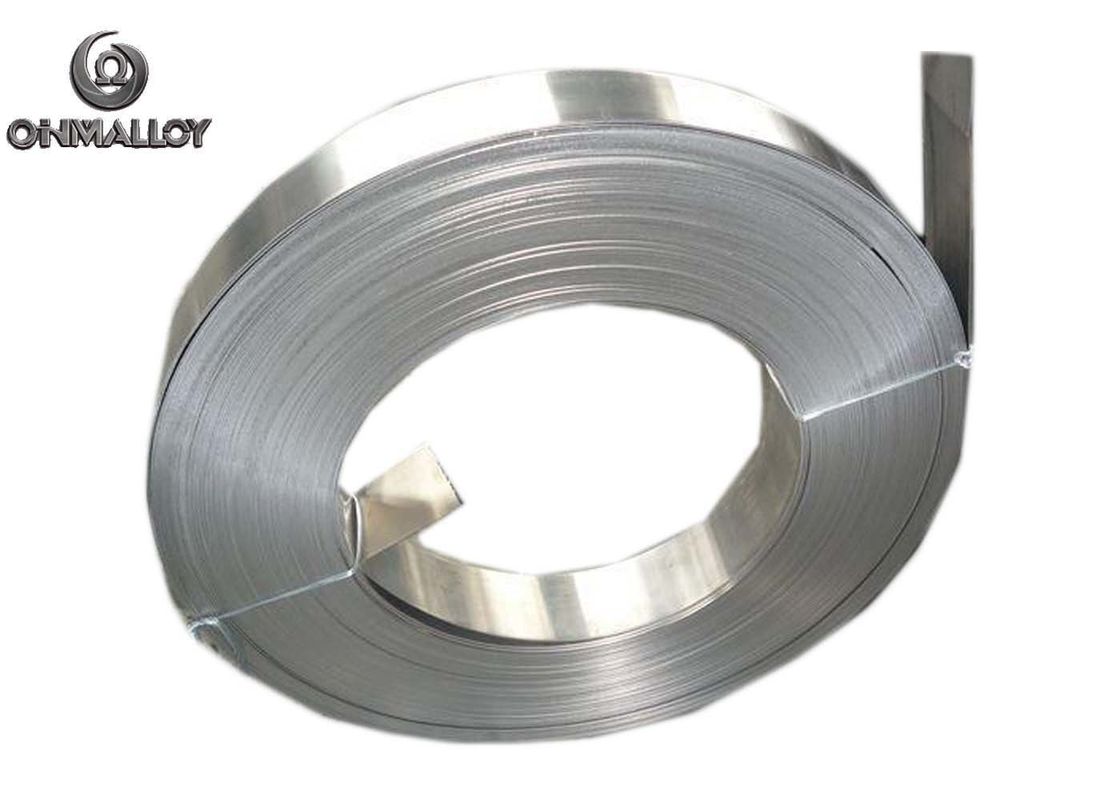

| OhmAlloy112S | Strip | W=8~250mm | T=0.1~3.0 | |
| OhmAlloy112F | Foil | W=6~120mm | T=0.003~0.1 | |

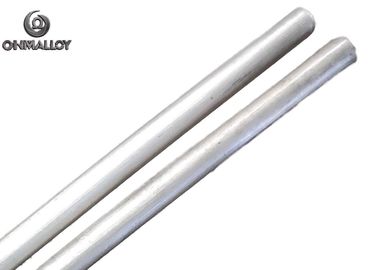

| OhmAlloy112B | Bar | Dia=8~100mm | L=50~1000 | |
This alloy(NiCrC Resistohm Nikrothal 60 ) with a chemical composition of 60 % of nickel and 15 % chromium, the balance in iron, make practically the unanimity among the users of material of metallic resistances. It contains rare earth additions for increased resistance, especially under conditions of frequent switching or wide temperature fluctuations. This is an excellent choice for heating elements operating at a temperature up to 1100°C, which include the majority of household appliances and other heating elements operating in an average range of temperatures, and where the exceptional properties of Resistohm 80 are not necessary. Its applications include all sorts of heating elements and resistances (toasters elements, potentiometer resistances and other household and industrial appliances).
