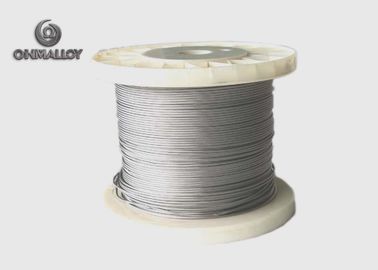

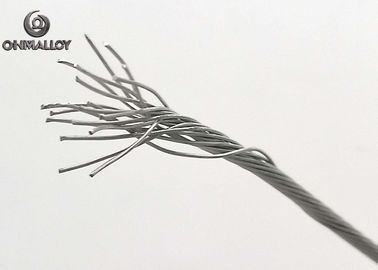

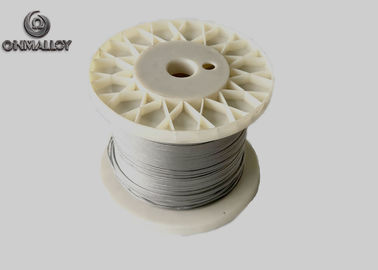

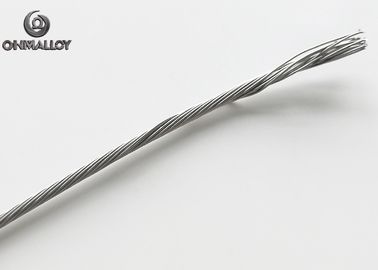

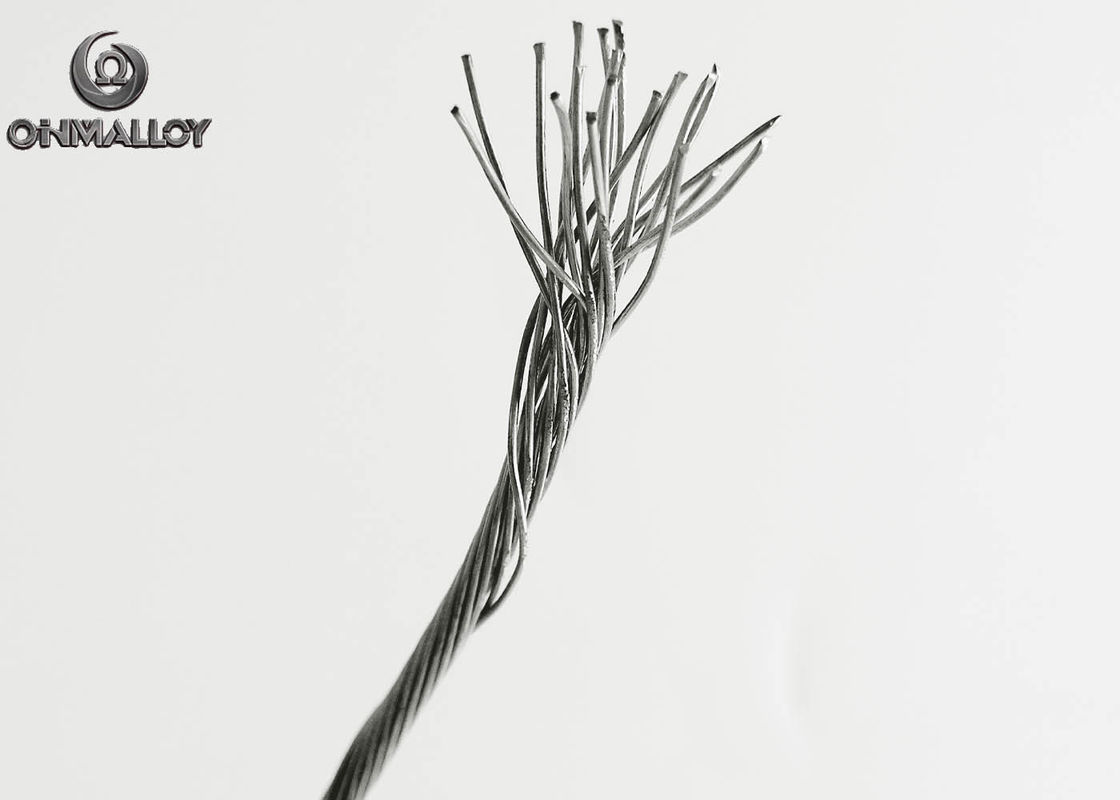

Annealed 19 Strands Nickel 212 NiMn2 Wire Rope

Annealed 19 Strands Nickel 212 NiMn2 Wire Rope
Annealed 19 Strands Nickel 212 NiMn2 Wire Rope Annealed 19 Strands Nickel 212 NiMn2 Wire Rope Annealed 19 Strands Nickel 212 NiMn2 Wire Rope Annealed 19 Strands Nickel 212 NiMn2 Wire Rope Annealed 19 Strands Nickel 212 NiMn2 Wire Rope Annealed 19 Strands Nickel 212 NiMn2 Wire Rope

Large Image :  Annealed 19 Strands Nickel 212 NiMn2 Wire Rope Get Best Price

Product Details:
Place of Origin: China
Brand Name: OHMALLOY/OEM
Certification: ISO9001:2015
Model Number: SP-Ni212
Payment & Shipping Terms:
Minimum Order Quantity: 100 meter
Packaging Details: Plastic spool+plywood case
Delivery Time: 3-15 working days
Payment Terms: L/C, T/T, , MoneyGram,Paypal
Supply Ability: 800000 meter per month
Detailed Product Description
Name: 19 Strands Nickel 212 NiMn2 Wire Rope For Ceramic Spreader Mats Heater Accessory Material: Nickel 212(NiMn2)
Size: 19 Strands Of 0.574mm Surface: Bright,Annealed
Package: 500 Meter/Spool(plastic Spool) Warrenty: 3 Years
High Light:

NiMn2 Wire Rope

,

Nickel 212 Wire Rope

19 Strands Nickel 212 NiMn2 Wire Rope for Ceramic Spreader Mats Heater Accessory



Specifications



Materials :98% Nickel & 2% Mn

Overall Diameter : Average Dia. 2.65mm

No. of Strands : 18/0.574 + 1/0.71MM

19 strands twisted together

Hardness : 200HV

Resistance : 0.023 Ohm/m

Max. Operating Temp : 1200°C



Product features:

1. Excellent anti-oxidation and mechanical strength at high temperature.

2. High resistivity and low temperature coefficient of resistance.

3. Excellent reel ability and forming performance;

4. Excellent welding performance.



 Wire Rope Type and Standard Size Reference:

Alloy Wire No. of Strands Nominal OD (mm) King Wire Size (mm) Resistance (Ω/m) Length (m/kg)
0Cr20Ni80 19*0.523 2.7 0.574 0.285 29
0Cr15Ni60 19*0.523 2.76 0.574 0.29 30
0Cr20Ni80 37*0.385 2.76 0.45 0.279 28
Pure Nickel 19*0.574 2.87 0.574 0.0198 21
Nickel 212 19*0.574 2.87 0.71 0.0234 22

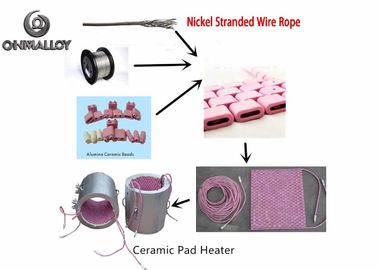

19 Strands Nickel 212 NiMn2 Wire Rope Application:



Annealed 19 Strands Nickel 212 NiMn2 Wire Rope 0
