Product Details:
Payment & Shipping Terms:
|
| Conductor Material: | Positive Ni-Cr,Negative Ni-Al | Application: | KX Thermocouple |
|---|---|---|---|
| Conductor Type: | Solid | Insulation Material: | Fiberglass |
| Temperature Range: | -200~1200 | Usage: | Connecting With Thermocouple And Instrument Machine |
| Color: | As Per Customers Request | Accuracy: | Class1/A |
| Theory: | Thermocouple Sensor | Jacket: | Fiberglass |
| High Light: | 20AWG Type K Thermocouple Cable,0.81mm*2 Type K Thermocouple Cable,Fiberglass Solid Thermocouple Cable |
||

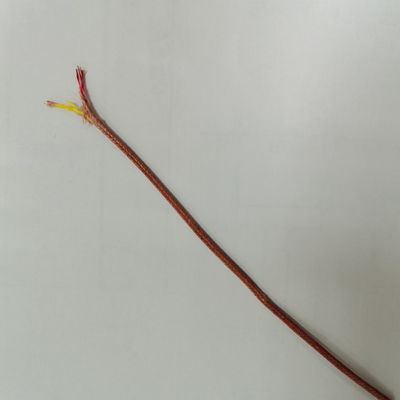

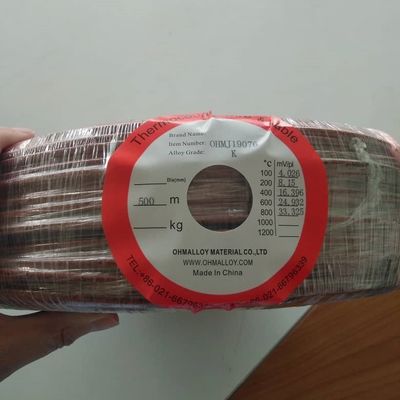

81mm*2 K Type Thermocouple Cable 20AWG Glass Fiber Insulated Up to 400C
| Cable Specification | ||||
| Item Name | Thermocouple Type K Cable |  |
||
| Conductor Material | +Chromel -Alumel | |||
| Conductor Dia | 2*0.81mm(20AWG, 0.5mm2, ±0.01mm) | |||
| Inner Insulation and Thickness | GlassFiber (long term: 400ºC) | |||
| Inner Insulation Diameter | 1.2mm(±0.2mm) | |||
| Outer Jacket Material | GlassFiber (long term: 400ºC) | |||
| Finished Diameter | 1.73mmx2.83mm(±0.2mm) | |||
| Weight | 9.6KG/KM | |||
Conductor Chemical Composition
| Material | Chemical composition (%) | ||||
| Cr | Ni | Si | Mn | Al | |
| KP(Chromel) | 10 | 90 | |||
| KN(Alumel) | 95 | 1-2 | 0.5-1.5 | 1-1.5 | |
To increase its temperature bearing ability and to install easily, jacket is applicable.
In the working environment, there are too much factors will interference the EMF signal, therefore shield layer is practical way to prevent the cable from interference caused by complex environment.
Thermocouple Extension Cable-Know
