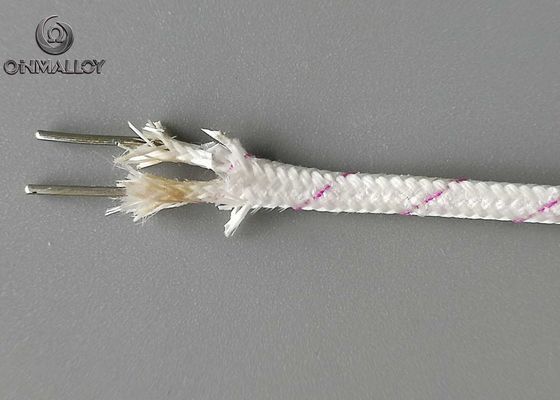

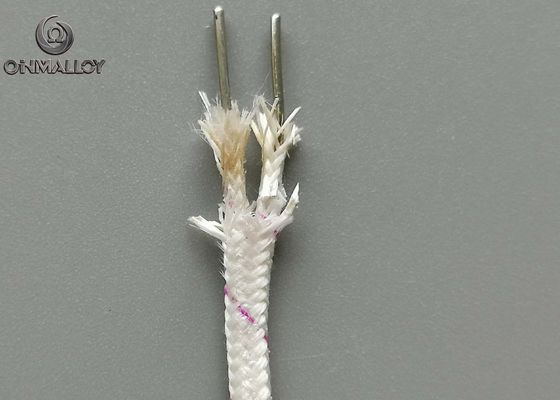

1000℃ KX-VS-VS-0.81 Vitreous Silica Insulated Thermocouple Cable Type K Wire

1000℃ KX-VS-VS-0.81 Vitreous Silica Insulated Thermocouple Cable Type K Wire
1000℃ KX-VS-VS-0.81 Vitreous Silica Insulated Thermocouple Cable Type K Wire 1000℃ KX-VS-VS-0.81 Vitreous Silica Insulated Thermocouple Cable Type K Wire 1000℃ KX-VS-VS-0.81 Vitreous Silica Insulated Thermocouple Cable Type K Wire

Large Image :  1000℃ KX-VS-VS-0.81 Vitreous Silica Insulated Thermocouple Cable Type K Wire Get Best Price

Product Details:
Place of Origin: shanghai
Brand Name: Ohmalloy/OEM
Certification: IEC/ASIN/JIS
Model Number: SP-KX-VS-VS-0.81
Payment & Shipping Terms:
Minimum Order Quantity: 100 meters
Packaging Details: Spool+paper case + wooden case/plastic packing+papre case+ wooden box outside(or customized)
Delivery Time: 5-8 working days after payment confirmed
Payment Terms: L/C, T/T, , MoneyGram,paypal
Supply Ability: 3000meter/day
Detailed Product Description

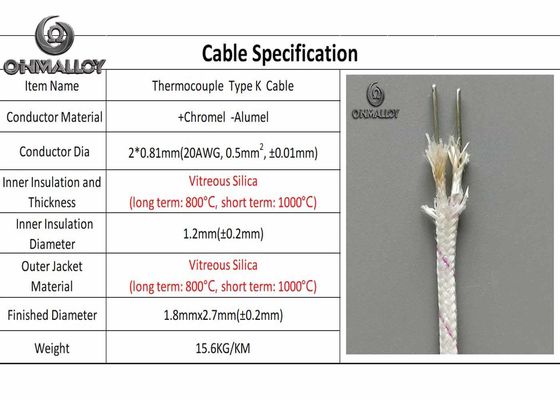

Product Name: 1000℃ KX-VS-VS-0.81 Vitreous Silica Insulated Thermocouple Cable Type K Wire Material: + Chromel -Alumel
Working Temperature: 800℃(long Time)1000℃(short Time) Color Standard: ANSI/IEC(or Customized)
Material No.: KX-VS-VS-0.81 Application: Thermocouple Wire Cable
High Light:

Silica Insulated Thermocouple Cable

,

ANSI Thermocouple Cable

,

Extension Type K Thermocouple Wire

1000℃ KX-VS-VS-0.81 Vitreous Silica Insulated Thermocouple Cable Type K Wire





Thermocouple Wire and Cable Know-How

1000℃ KX-VS-VS-0.81 Vitreous Silica Insulated Thermocouple Cable Type K Wire 0



For the extension/compensation cable, the basic structure is conductor and insulation.

To increase its temperature bearing ability and to install easily, jacket is applicable.



In the working environment, there are too much factors will interference the EMF signal, therefore shield layer is practical way to prevent the cable from interference caused by complex environment.



1. The Compensation Wire Name and Code

Compensation Alloy Wire Name Positive Negative
Name Code Name Code
Copper-Copper Nickel 0.6 Copper SPC Copper Nickel 0.6 SNC
Copper-Copper Nickel 0.6 Copper RPC Copper Nickel 0.6 RNC
Iron-Copper Nickel 22 Iron KPCA Copper Nickel 22 KNCA
Copper-Copper Nickel 40 Copper KPCB Copper Nickel 40 KNCB
Chromel-NiSi3 Ni90Cr10 KPX Ni97Si3 KNX
Iron-Copper Nickel 18 Iron NPC Copper Nickel 18 NNC
NiCr14Si-NiSi4Mg NiCr14Si NPX NiSi4Mg NNX
NiCr10-Copper Nickel 45 NiCr10 EPX Copper Nickel 45 ENX
Iron-Copper Nickel 45 Iron JPX Copper Nickel 45 JNX
Copper-Copper Nickel 45 Copper TPX Copper Nickel 45 TNX





2. How To Choose Thermocouple



Type Insulation material CODE Inner Shielding CODE JACKET CODE Out shielding CODE Pairs solid Earth wire Stranded
K FEP FP     FEP FP     0 0.2mm E cross section+R
T PFA FA Al foil AL PFA FA copper wire CU 2 0.3mm
E PVC 70℃ LP copper wire CU PVC 70℃ LP Tinned copper TC 3 0.5mm
J PVC 105℃ HP Tinned copper TC PVC 105℃ HP Nickel plated copper NC 4 0.75mm
N Fiberglass 400℃ BL Nickel plated copper NC Fiberglass 400℃ BL Silver plated copper AC 5 1.0mm
SC Fiberglass600℃ BM Silver plated copper AC Fiberglass600℃ BM SS 304 wire SS 6 1.5mm
  Fiberglass700℃ BH     Fiberglass700℃ BH
  MICA FIBER 650℃ MA
KCA Vitreous Silica 800℃ VS SS 304 wire SS Vitreous Silica 800℃ VS     7 2.5mm
KCB Silica fiber1000℃ SV Inconel 600 wire 600 Silica fiber1000℃ SV     8
RTD Ceramic fiber1200℃ CF Inconel 625 wire 625 Ceramic fiber1200℃ CF     9
  PTFE PT     PTFE PT
  ETFE ET     ETFE ET
  KAPTON KP     KAPTON KP
  Silcone rubber SR     Silcone rubber SR
  Rubber RU     Rubber RU
  PE PE     PE PE



3. Color Standard Reference

1000℃ KX-VS-VS-0.81 Vitreous Silica Insulated Thermocouple Cable Type K Wire 1

4. The Negative Wire VS Pt Nominal Thermoelectromotive Force Vaule Reference

Exten-sion Cable Code Alloy Wire Code Applica-tion Classifi-cation

Measurement Terminal Temperature

(℃)

Nominal Thermoele-ctromotive force(μV) Precision Grade Thermoelectrom-otive force(μV) Normal Grade Thermoelectrom-otive force(μV)
Tolerance Value Range Tolerance Value Range
SC or RC SNC or RNC G 100 -127 ±20 -107~-147 ±48 -79~-175
H 100 -127 - - ±48 -79~-175
200 -396 - - -348~-444
KCB KNCB G 100 3322 ±34 3288~3356 ±76 3246~3398
KX KNX G -25 -342 ±15 -327~-357 ±31 -311~-373
100 1240 1225~1255 1209~1271
H -25 -342 ±15 -327~-357 ±31 -311~-373
100 1240 1225~1255 1209~1271
200 2160 2145~2175 2129~2191
NX NNX G -25 -278 ±14 -264~-292 ±30 -248~-308
100 989 975~1003 959~1019
H -25 -278 ±14 -264~-292 ±30 -248~-308
100 989 975~1003 959~1019
200 1970 1956~1984 1940~2000
EX ENX G -25 -805 ±47 -758~-852 ±83 -722~-888
100 3506 3459~2848 3423~3589
H -25 -805 ±47 -758~-852 ±83 -722~-888
100 3506 3459~2848 3423~3589
200 7451 7404~7498 7368~7534
TX TNX G -25 -805 ±20 -785~-825 ±48 -757~-853
100 3506 3486~3526 3458~3554
H -25 -805 ±38 -785~-825 ±78 -727~-883
100 3506 3486~3526 3428~3584
200 7451 7413~7489 7373~7529
