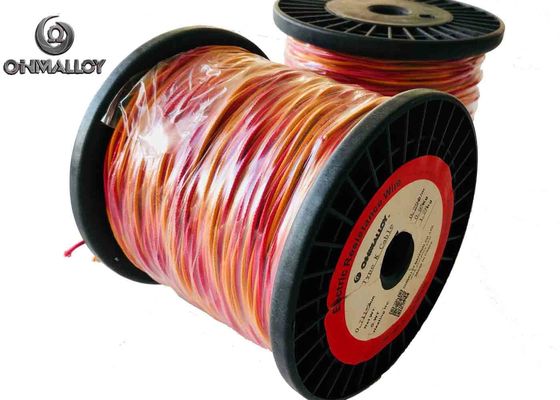

PWHT Accessories Cable Thermocouple Type K 600℃ ANSI 0.71mm 100M/Roll

PWHT Accessories Cable Thermocouple Type K 600℃ ANSI 0.71mm 100M/Roll
PWHT Accessories Cable Thermocouple Type K 600℃ ANSI 0.71mm 100M/Roll PWHT Accessories Cable Thermocouple Type K 600℃ ANSI 0.71mm 100M/Roll PWHT Accessories Cable Thermocouple Type K 600℃ ANSI 0.71mm 100M/Roll

Large Image :  PWHT Accessories Cable Thermocouple Type K 600℃ ANSI 0.71mm 100M/Roll Get Best Price

Product Details:
Place of Origin: shanghai
Brand Name: OHMALLOY/OEM
Certification: ISO9001:2015
Model Number: SP-K-BH-0.71
Payment & Shipping Terms:
Minimum Order Quantity: 100 meter
Packaging Details: Coil+Paper Carton or Spool+Paper carton+Plywood Pallet
Delivery Time: 5-15 working days after payment confirmed
Payment Terms: L/C, T/T, ,Paypal
Supply Ability: 50000 meter per month
Detailed Product Description
Name: PWHT Accessories Cable Thermocouple Type K 600℃ ANSI 100M/Roll Cable Type: Type K
Insulation Material: High Temperature Fiberglass(600℃,max 700℃) Conductor Size: 0.5mm/0.6mm/0.71mm/0.81mm/1.0mm
Color: ANSI(yellow, Red)/IEC(green, White) Detailed Application: PWHT Accessory Cable
Package: 100Meter/Roll Or 100Meter/Spool Warrenty: 3 Years
High Light:

PWHT Type K Thermocouple Cable

,

ANSI Type K Thermocouple Cable

,

600℃ Insulation Thermocouple Wire



PWHT Accessories Cable Thermocouple Type K 600℃ ANSI 100M/Roll

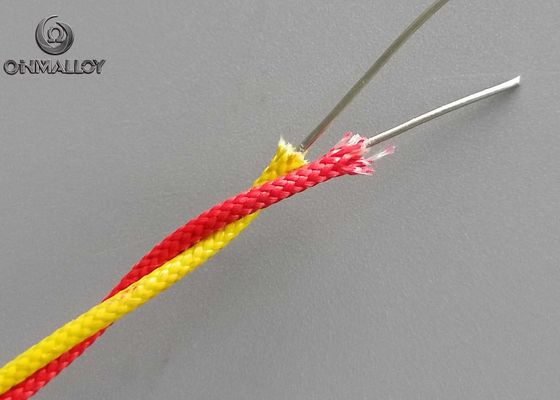

Item Name Type K Thermocouple Cable
Item Number K-BH-0.71
Conductor Material +Chromel -Alumel
Conductor Dia 2*0.71mm(±0.02mm)
Insulated material and Thickness High Temperature Fiberglass (600℃,Max 700℃) 0.25mm
Insulated Diameter 1.2mm(±0.1mm)
Insulated Color ANSI(+Yellow -Red )
Finished Cable Diameter 1.4mm*2.85mm (±0.2mm)
Package 200/500Meter/roll
Accuracy Class I (T *0.4%)
Estimated Weight 10.5KG/KM

PWHT Accessories Cable Thermocouple Type K 600℃ ANSI 0.71mm 100M/Roll 0

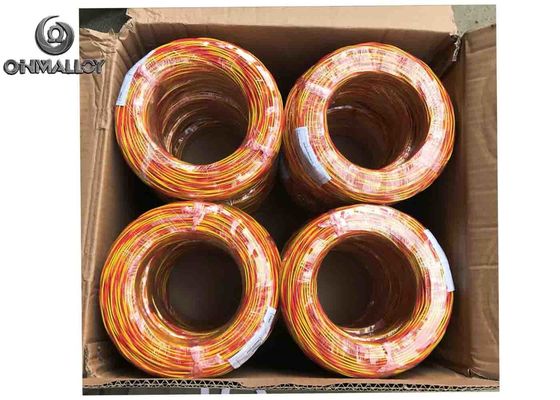

Product Name: K-BH-0.71 Type K Thermocouple Extension Cable

Specification : 2X0.71mm(±0.02mm)

Outer Diameter: 1.4mm*2.9mm(±0.2mm)

Quantity : 10000 meters

Color code : +Yellow -Red



PWHT Accessories Cable Thermocouple Type K 600℃ ANSI 0.71mm 100M/Roll 1



Conductor Material Inspection: Chromel Alumel Material Batch NO.: L854D08



Chemical Composition Standard
Elements Ni Cr Mn Si Al Co Other IEC60584
Chromel Bal. 8.8-9.8 / ≤0.3 / ≤0.6 0.2
Alumel Bal. / ≤0.8 ≤0.6 1.6-2.3 / 0.1



Insulation Material Inspection: High Temperature Fiberglass(600℃) Material Batch No.: F19D03



SiO2 Infiltrant content Fiberglass Nominal Diameter Max Working Temperature (long time) Tex
60% 0.8% 6μm 600℃ 160



PWHT Accessories Cable Thermocouple Type K 600℃ Application

PWHT Accessories Cable Thermocouple Type K 600℃ ANSI 0.71mm 100M/Roll 2

PWHT Accessories Cable Thermocouple Type K 600℃ ANSI 0.71mm 100M/Roll 3PWHT Accessories Cable Thermocouple Type K 600℃ ANSI 0.71mm 100M/Roll 4
